mechfpv 3-Channel FPV Video Switcher Module (PWM Control) for Multi-Camera

Description:

3-Channel Video Switcher Module (3-Way Input, PWM Control)

Features:

1. The product is made of high-quality PCB material, with guaranteed quality

2. The product is packaged in electrostatic bags for shipment, with welded needles. The product is lightweight, compact, and easy to use

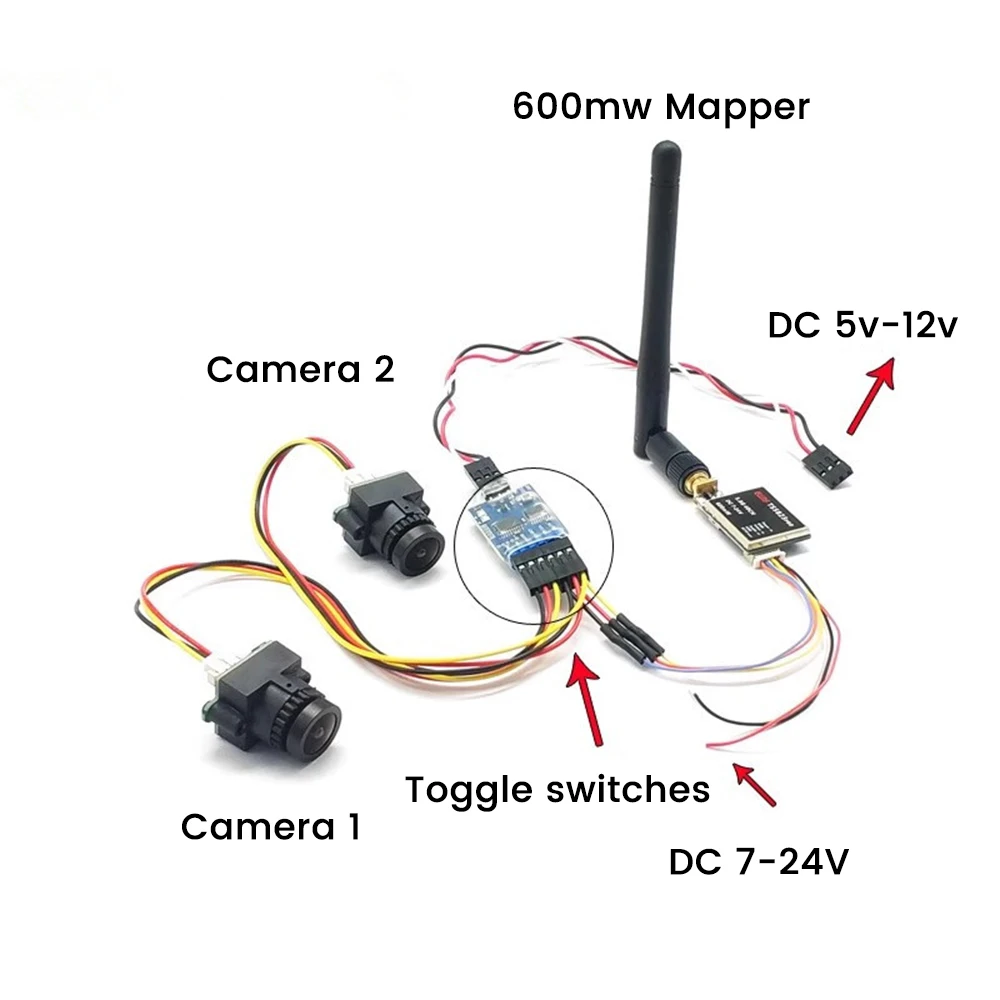

3. This product can connect to 3 video sources and switch between different video sources. If you have multiple cameras on your plane, this is the multi view switching product you need

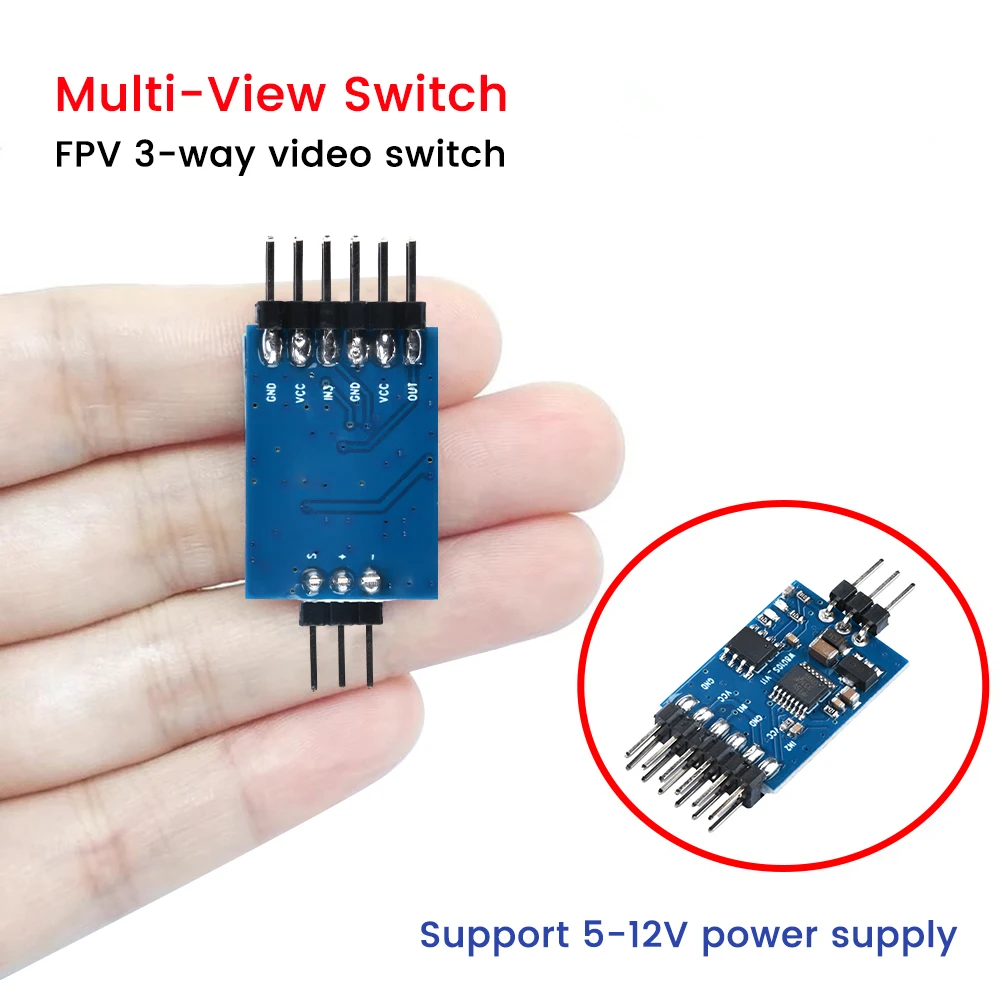

4. Support 5-12V power supply, control signal adopts PWM signal, stable performance

5. Adopting a high-speed video switching chip to effectively reduce the vibration of video images

Parameters:

Name: 3-channel Video Switcher Module

Color: Blue

Input channel: 3

Voltage: DC5-12V

Video signal impedance: 75 Ω

Control signal: PWM

IN1:1000us±200

IN2:1500us±200

IN3:2000us±200

Product Description:

This module can connect to 3 video sources, and you can switch between different video sources through a 3-digit switch. If you have multiple cameras on your plane, this is the product you need.

The control channel can be any proportional channel or a 3-digit switch channel, while a 2-digit switch channel can only switch between two video input signals.

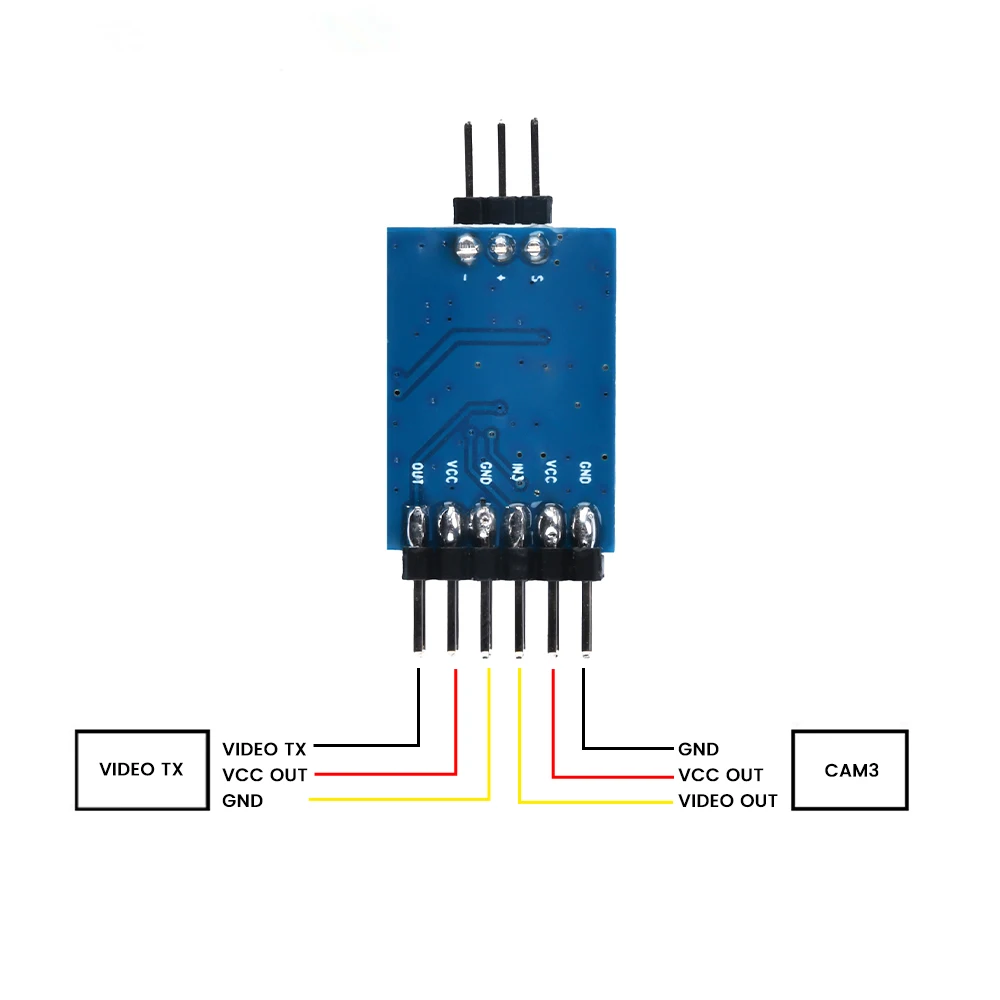

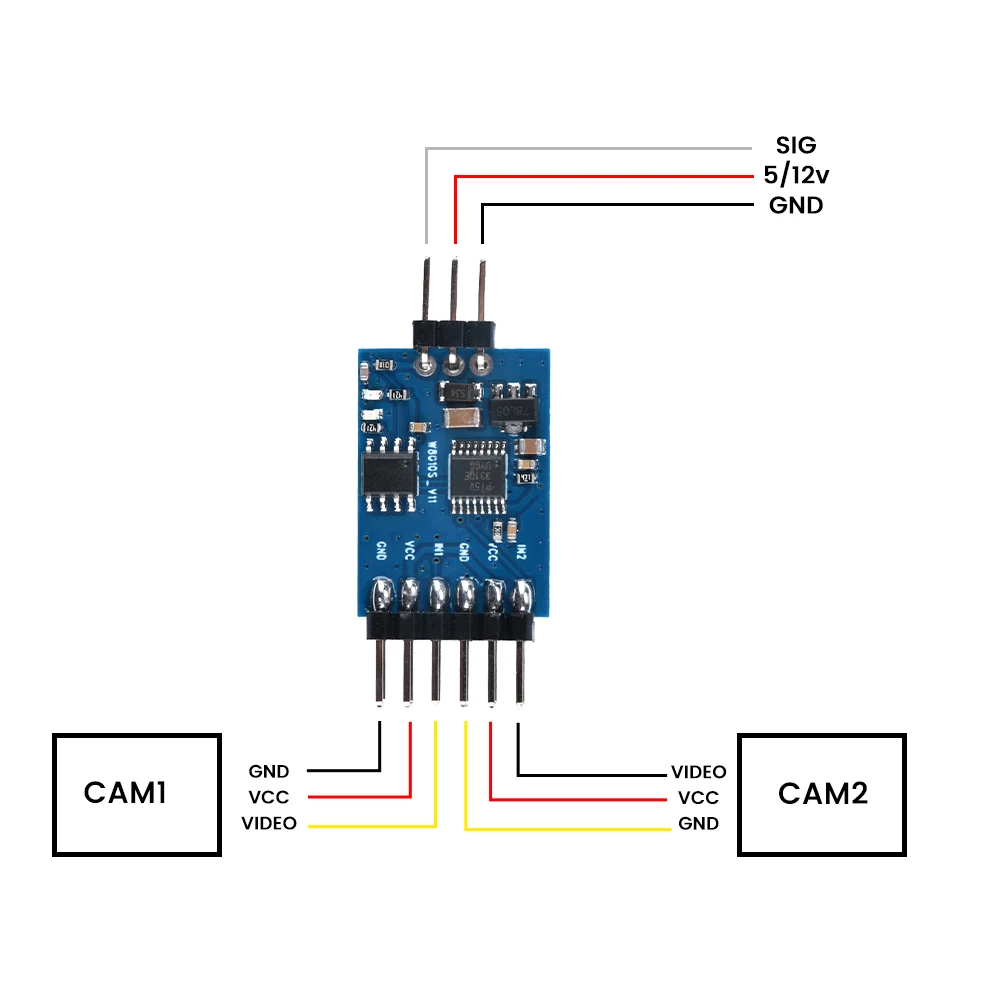

Port 'in' is for video signal input, IN1, IN2, IN3, OUT are for video signal output, '-' is negative, '+' is for pause, and 'S' is for receiving video signals.

Package include:

1 x 5.8G 3 Channel Video Switcher Module 3 Way Video Switch Compatibale With RC Camera For FPV Drone UAV Accessories
