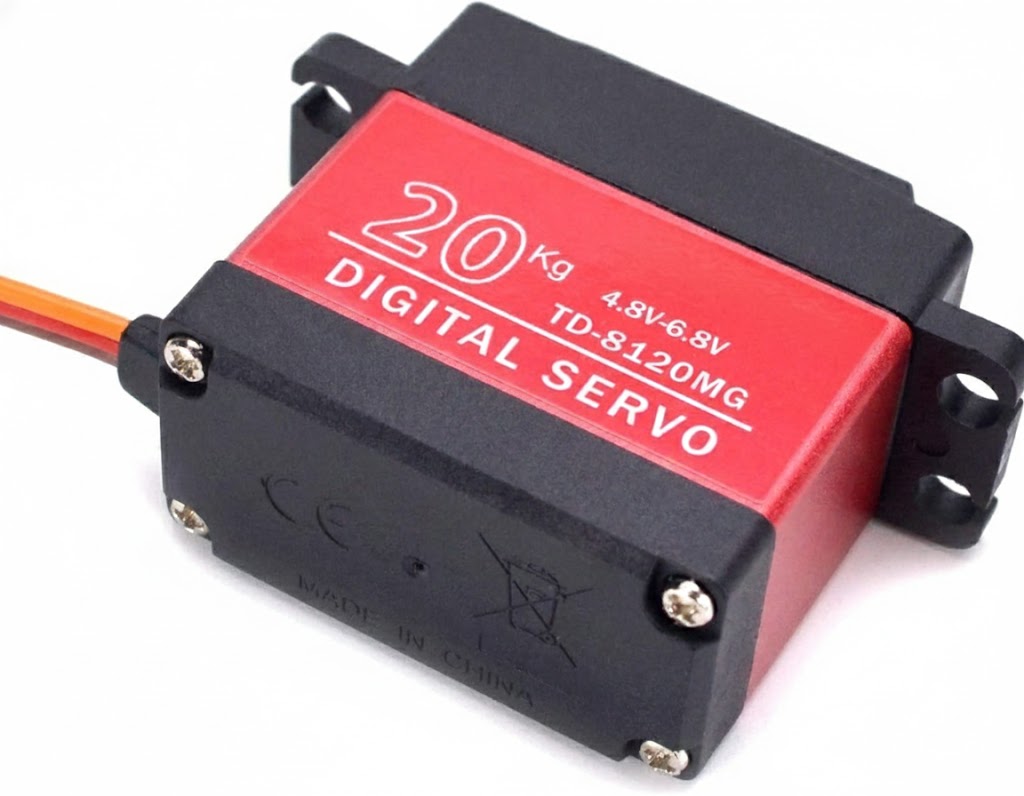

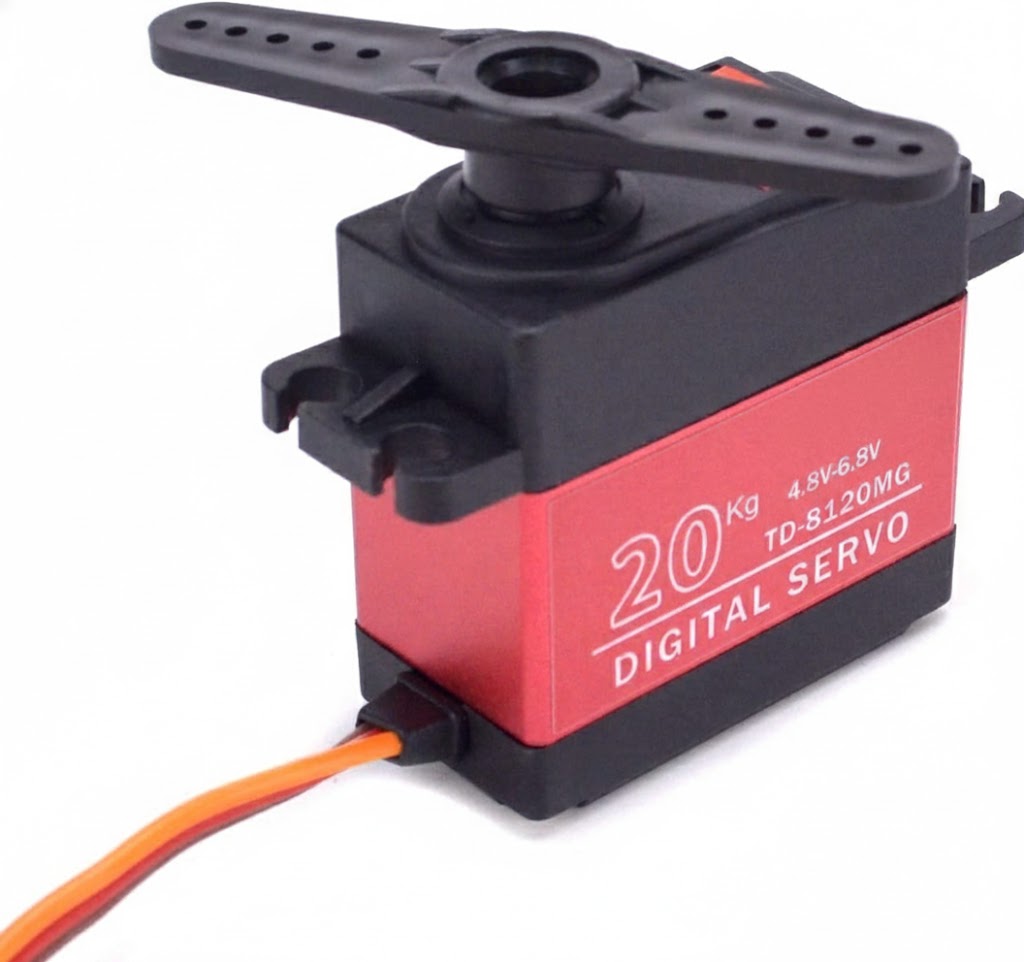

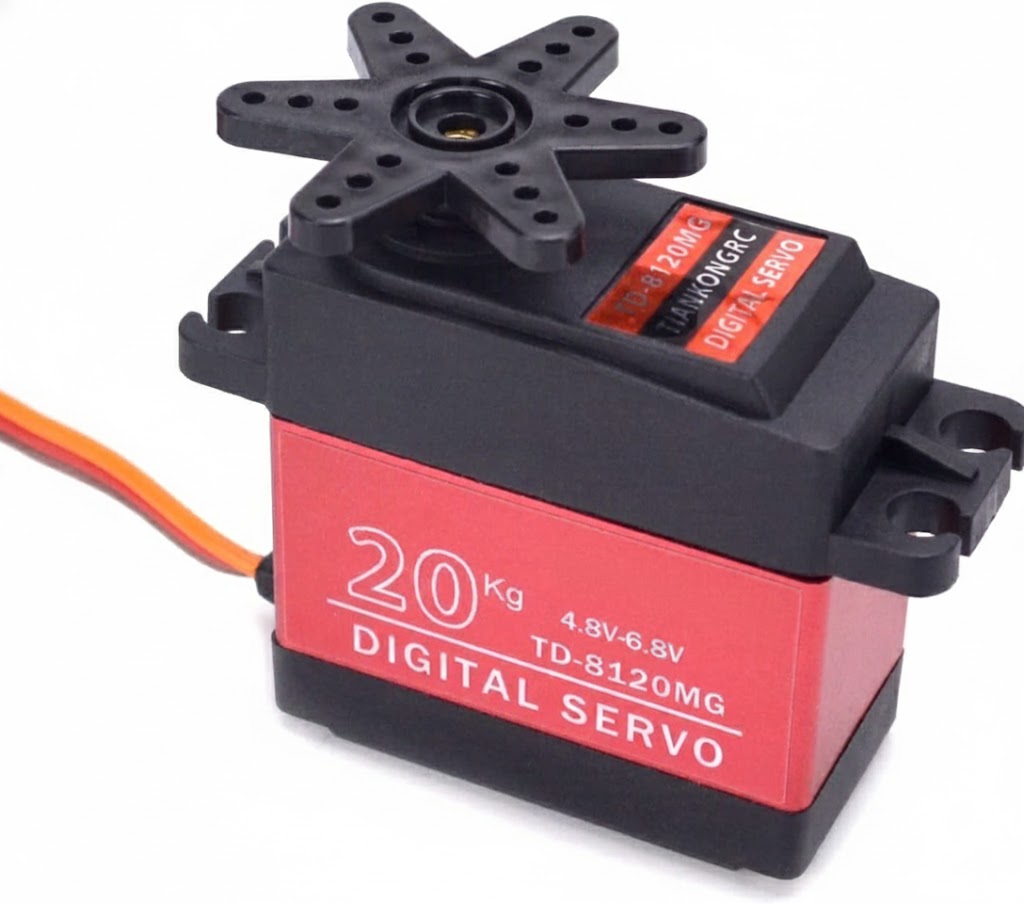

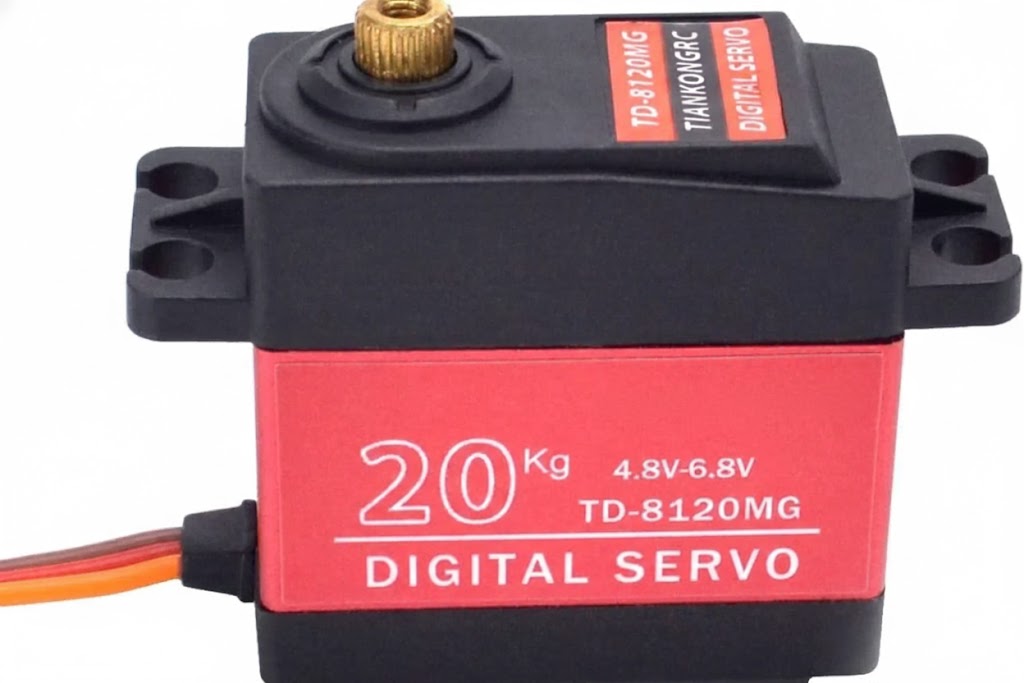

MECHFPV 20KG Waterproof Digital Servo (Full Metal Gear, 180°) w/ 25T Horn

Product description

20KG High Torque Waterproof Steering Servo for RC Car / Crawler / Boat

20KG Servo:

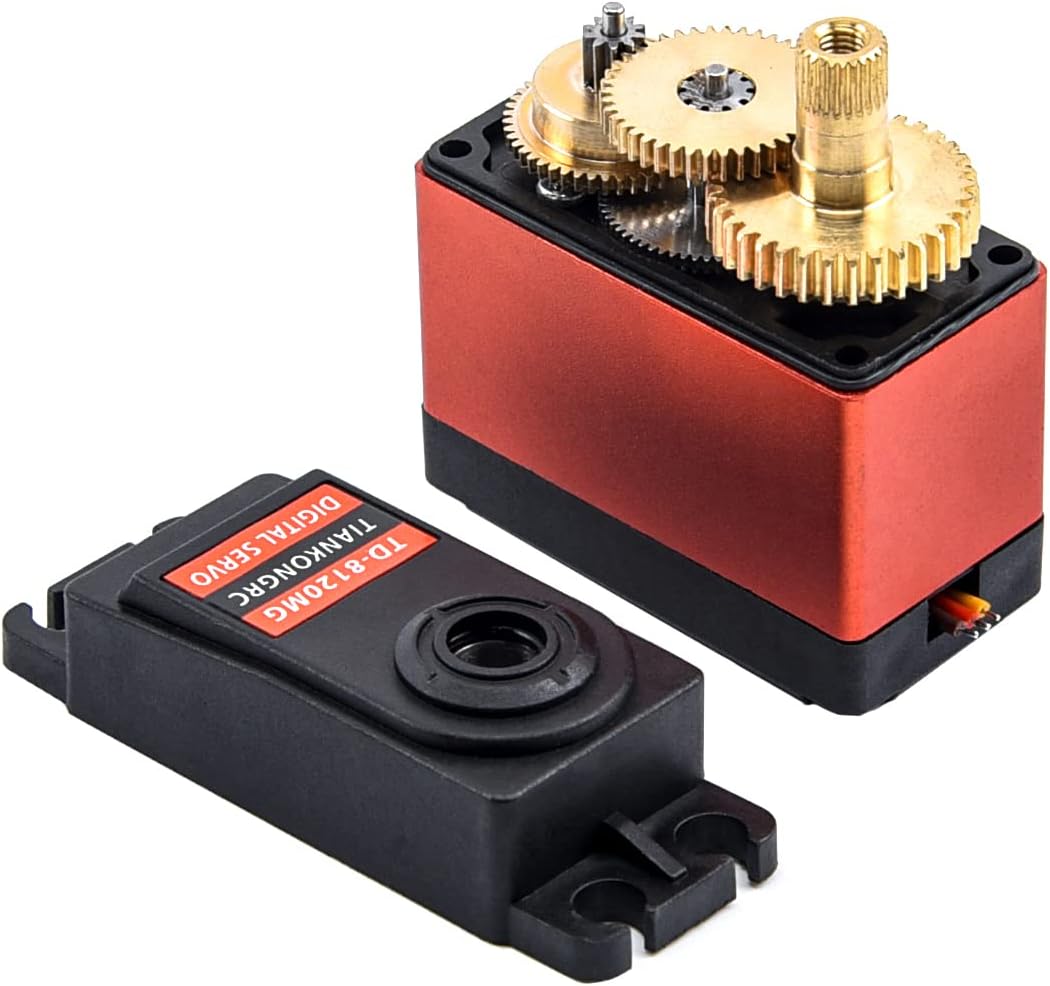

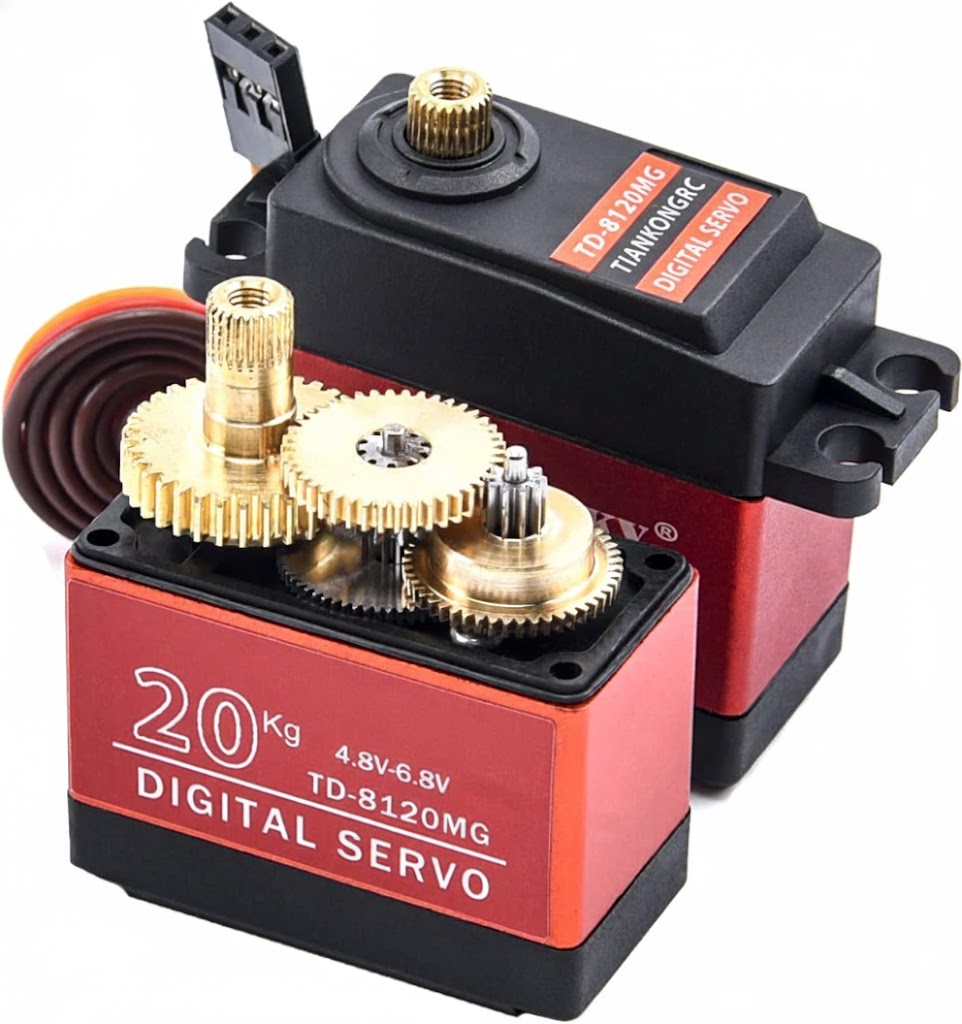

- High-precision metal gears Servo with hard anodizing

- CNC aluminium middle Shell,

Control system :PWM control （1500 u-sec is the central point）

Working voltage:4.8V ~ 6V

Working temperature: -20C°~ +60C°

Torque :4.8V /17.2kg.cm

6.0V /20.3kg.cm

Idle speed :4.8V/0.15sec / 60 deg

6.0V/0.13sec / 60 deg

​Steering angle: 180 degree

Idle current:4.8V/470mA 6.0V /650mA

Load current :4.8V/750mA 6.0V /950mA

Dead band :2usec

Lifetime:>15000 times without load

Moving angle:60°±10°

Drive type: MOS drive

Motor type:Cored motor

Potentiometer type:Direct drive

Signal booster type:Digital

Size:40.5X20.2X40.3mm

Weight : 62g (without accessories)

Ball Bearing:2BB

Gear material:Metal gear

Case material: PA66+fiber40%

Wire length:260mm

Wire gauge No and plug type:26AWG，JR plug

Brown wire:Negative

Red wire:Positive

Orange wire:Singal

Application:RC car, RC airplane, Helicopter

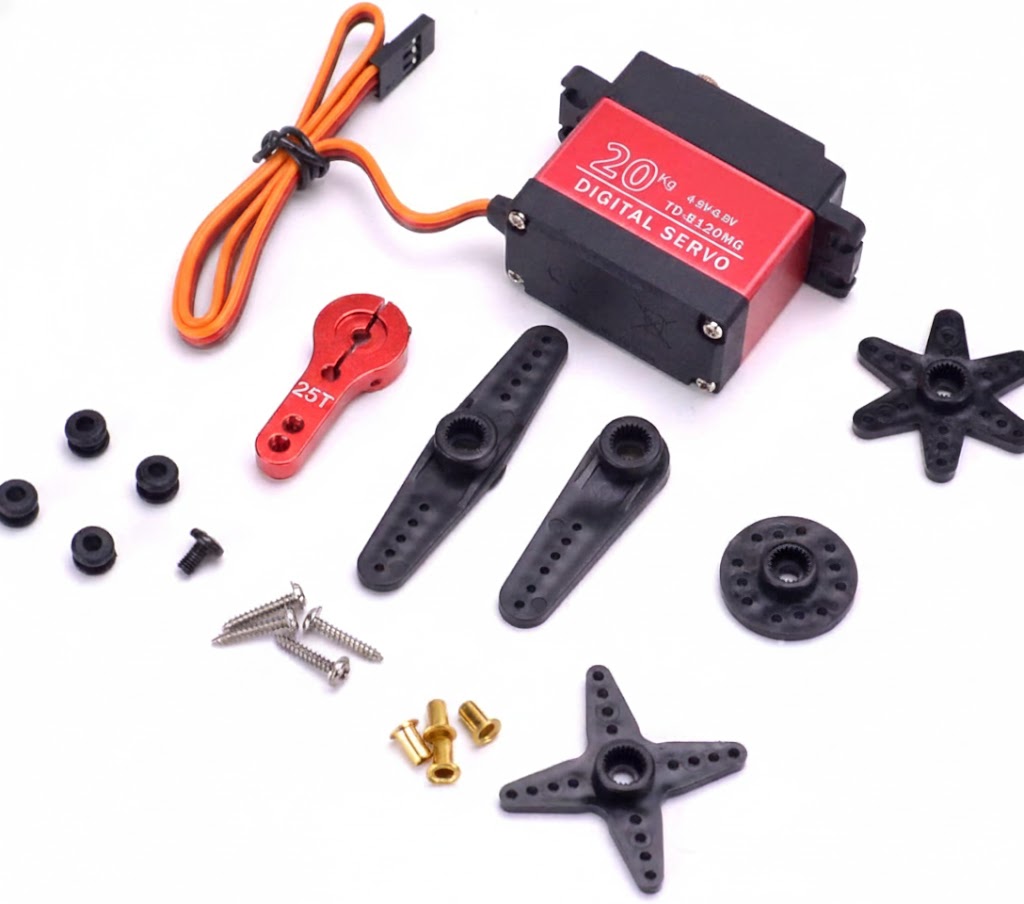

Package Included:

1 x RC Digital 20KG Servo

1 x 25T Servo Arm
