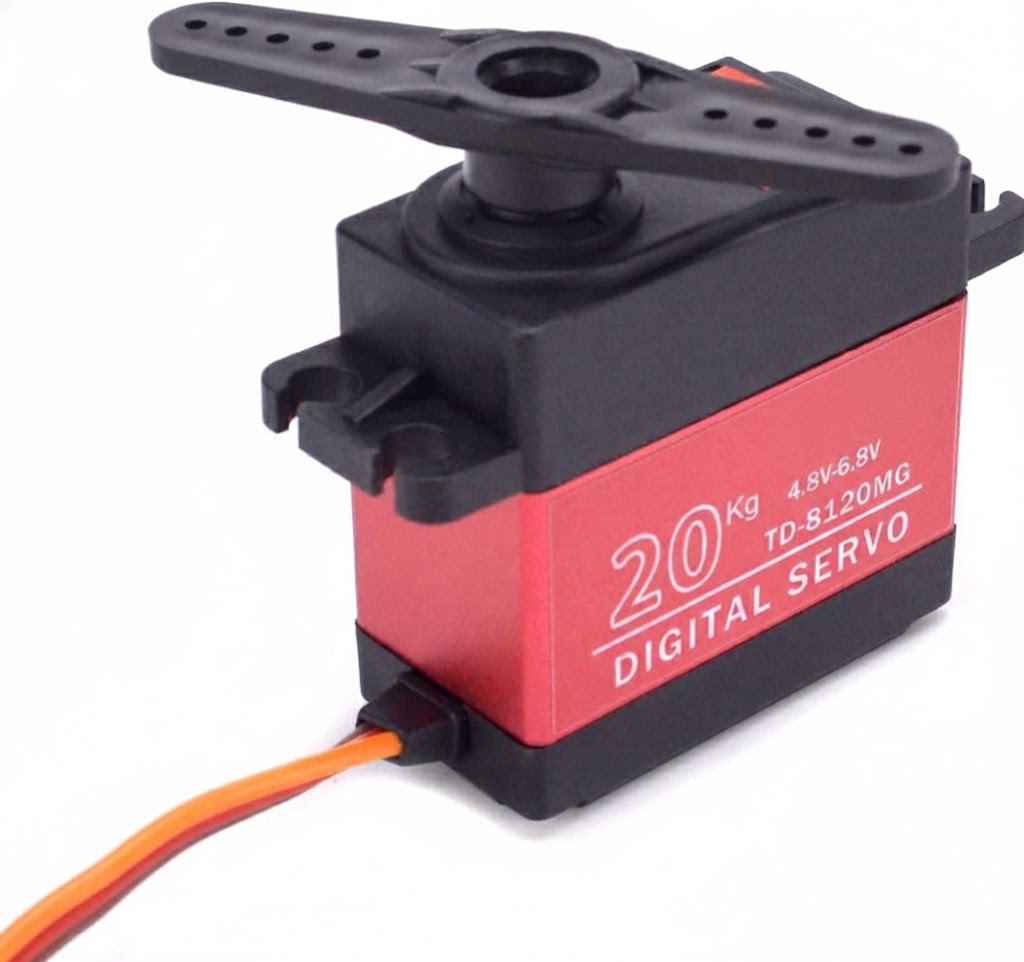

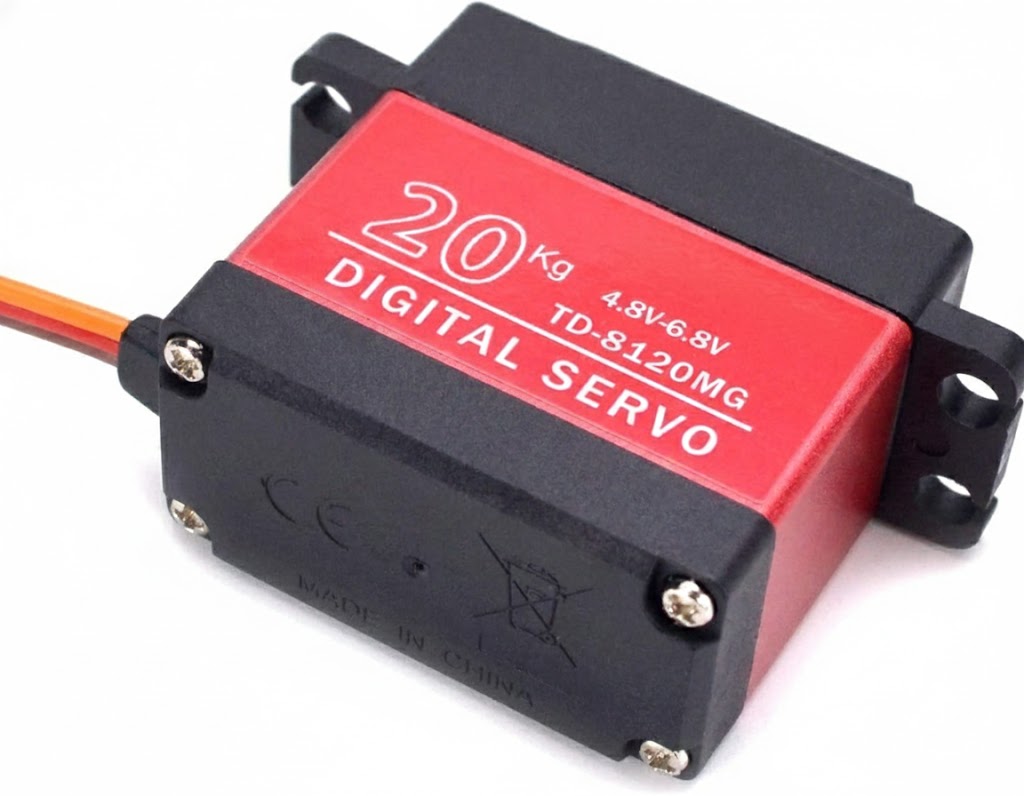

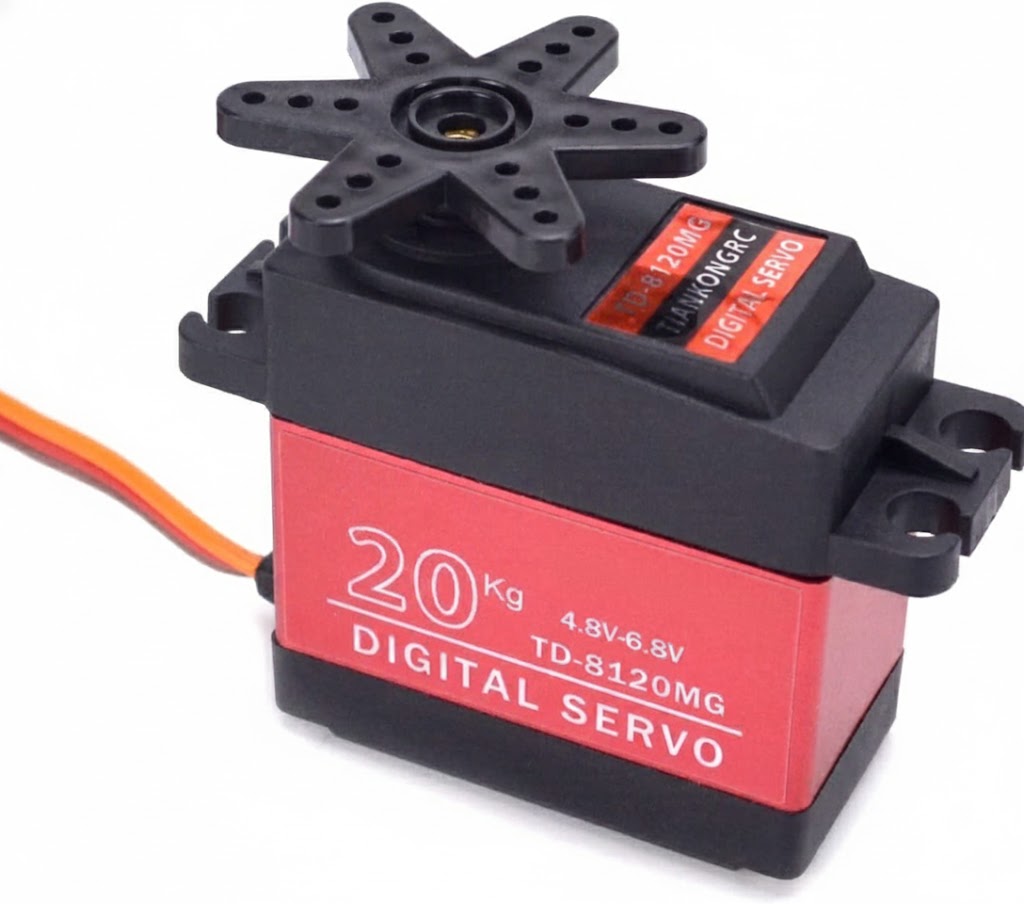

20KG Digital Servo with Aluminum Metal Gears 180°

The 20kg Digital Servo with Aluminum Metal Gears is designed for RC car enthusiasts. The Digital Servo offers 20KG of torque, and a 180-degree rotation with a metal bracket. It is water-resistant and features high torque, metal gears, fast heat dissipation, sensitivity, and responsiveness. This high-quality servo is perfect for RC hobbyists, providing a unique and enjoyable experience.

Servo motors are ideal for applications requiring precise positional control. These servos rotate only 180 degrees, and the shaft can be adjusted to any angle using a PWM signal. They are user-friendly, requiring no external motor drivers or feedback sensors. Simply connect the servo motor to a microcontroller’s digital IO pin to start controlling it.

The servo also boasts high-precision metal gears with hard anodizing, a CNC aluminum middle shell, and waterproof rubber seals and screws.

Features:

• High-performance digital standard servo
• High-precision metal gears with hard anodizing
• CNC aluminum middle Shell
• Dual ball bearings

Specifications:

• Torque: 20 kg·cm (kilograms per centimeter) at 4.8V
• Voltage: 4.8V to 6.0V (typically used within this range for optimal performance)
• Rotation Range: 180°
• Operating Voltage: 4.8V to 6.0V
• Weight: Approx. 55-60 grams (depending on model)
• Motor Type: Coreless motor for smooth, consistent performance
• Gear Material: Aluminium metal gears (providing durability and resistance to wear)
• Control Signal: PWM (Pulse Width Modulation) for precise control
• Connector: Standard 3-pin JR/Futaba type connector
• Temperature Range: -20°C to +60°C (working environment)
• Applications: RC vehicles, robots, drones, aircraft, and other robotics or automation systems that require high torque and precision control
•


Package Include-

1 x 20KG Digital Servo Aluminium Metal Gears 180
