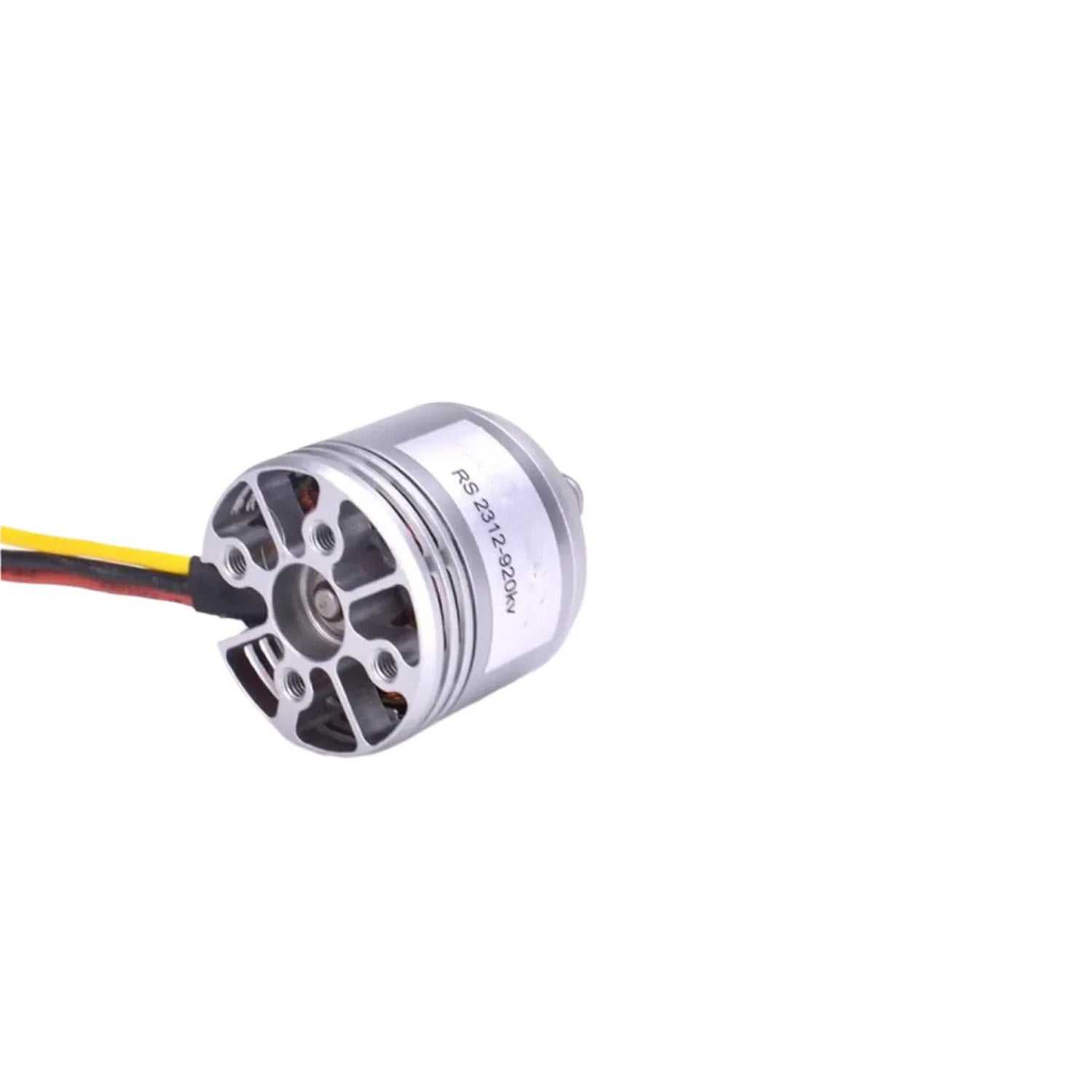

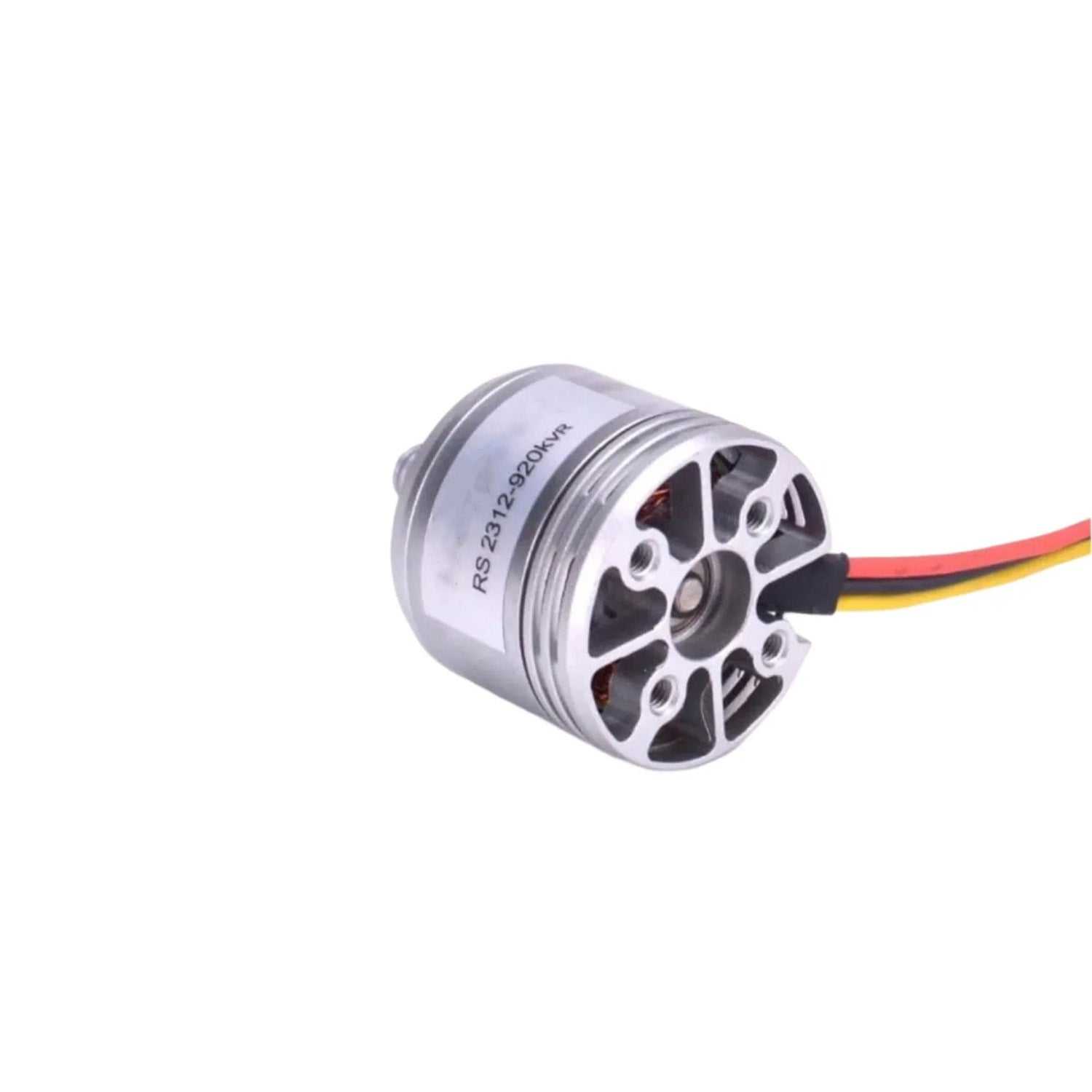

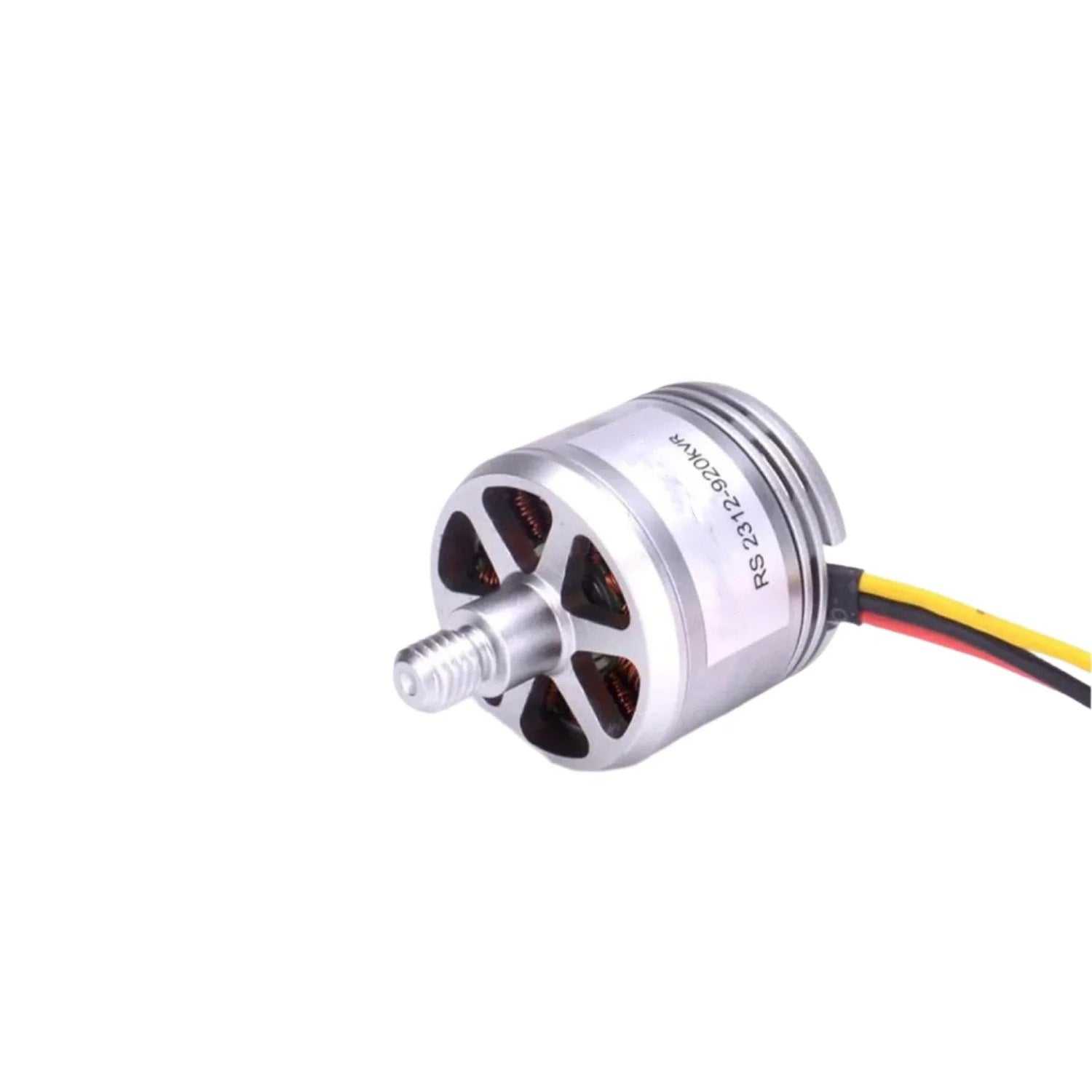

RS 2312 920KV Brushless Motor - CW/CCW (For DJI Phantom 3 & F450/F550)

Product Overview: Restore your Phantom 3 to the skies or power your next F450 build with the RS 2312 920KV brushless motor. Engineered for stability and efficiency, this motor is a direct fit for classic aerial photography frames. It features dynamic balancing and durable bearings to ensure jello-free video footage.

Key Features: • Perfect Replacement: Designed as a cost-effective alternative for DJI Phantom 3 Standard, Advanced, and Professional series motors. • High Efficiency: The 920KV rating is optimized for 9443 and 9450 self-locking propellers, delivering excellent lift on 3S or 4S batteries. • Durable Construction: CNC machined aluminum bell with effective heat dissipation design allows for longer flight times without overheating. • Easy Installation: Standard mounting pattern fits most F330, F450, and F550 frames. Comes with mounting screws.

Technical Specifications: • Model: RS 2312-920KV • KV Rating: 920 RPM/V • Configuration: 12N14P • Input Voltage: 3S - 4S LiPo • Rotation Direction: CW (Silver Cap) / CCW (Black Cap) Available • Weight: Approx. 55g (including cables) • Compatibility: DJI Phantom 3, F450/F550 Frames

Important Note: The "R" in 920kVR typically denotes the threading direction. Please double-check your existing motor's cap color (Silver or Black) to ensure you order the correct CW or CCW rotation to match your propellers.
