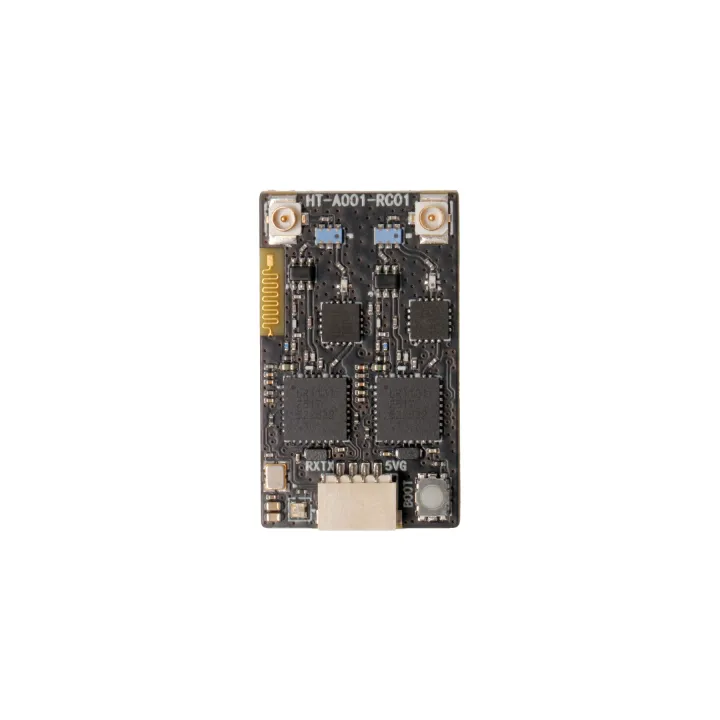

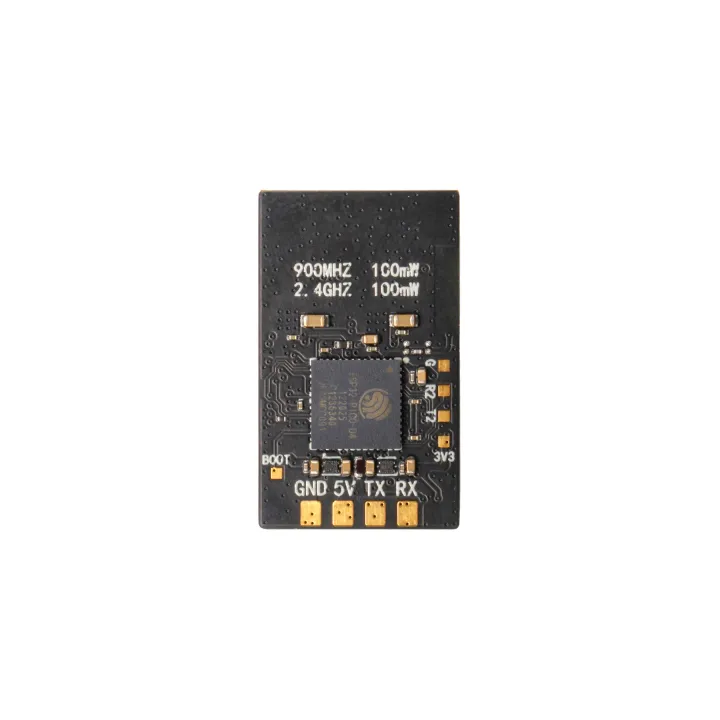

Holybro Zephyr ELRS Gemini X dual band receiver

Description

The Zephyr receiver is an ELRS Gemini X dual-band, true diversity receiver manufactured by Holybro. Equipped with Semtech's third-generation LR1121 transceiver and the ESPRESSIF ESP32-PICO-D4 processor, the Holybro Zephyr can be configured in either 915MHz (sub-GHz) or 2.4GHz LoRa mode. The Holybro Zephyr utilizes a diversity reception system, which offers a wider signal range and a more stable connection than conventional receivers. It also features a built-in Wi-Fi antenna, allowing for firmware upgrades via Wi-Fi.

Visit ELRS Gemini to learn more.

Specification

• Processor: ESP32-PICO-D4
• RF Chip: Semtech LR1121 * 2
• 900MHz TX Power (MAX)：100mW(20dBm)
• 2.4GHz TX Power (Max): 100mW(20dBm)
• Antenna Frequency Range: 902-928MHz & 2400-2500MHz
• Antenna Gain: 3±1 dBi
• Antenna SWR: less than 1.5
• Receiver Maximum Refresh Rate: 500Hz
• Receriver Minimum Refresh Rate: 50Hz
• TCXO: Yes
• Modulation: LoRa, FSK
• Input Voltage: DC 4-7V
• Current Rating: 5V/350mA(Max)
• Connector: SH1.0
• Antenna Connector: IPEX1
• Dimension (w/o antenna): 16 x 27 x 5mm

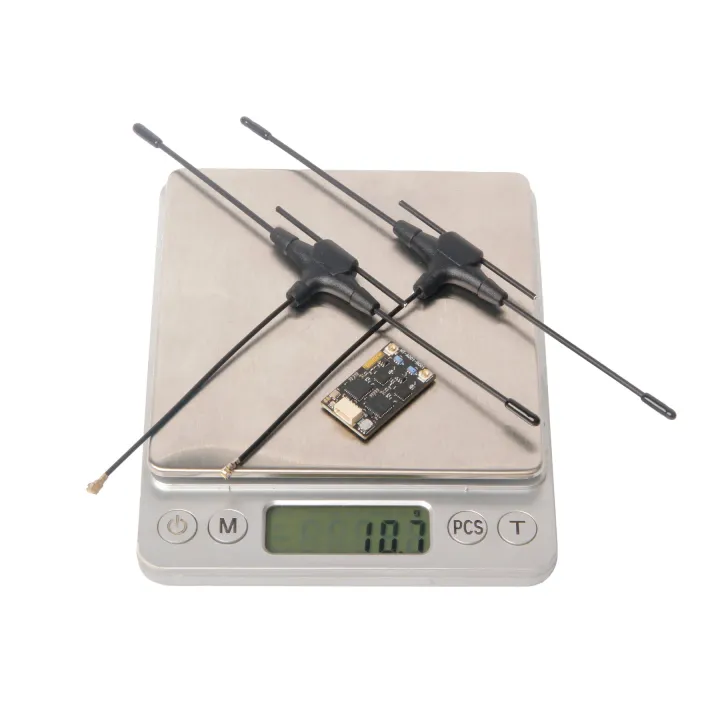

• Weight: 2.3g(w/o antenna)/11g(w/ antenna)

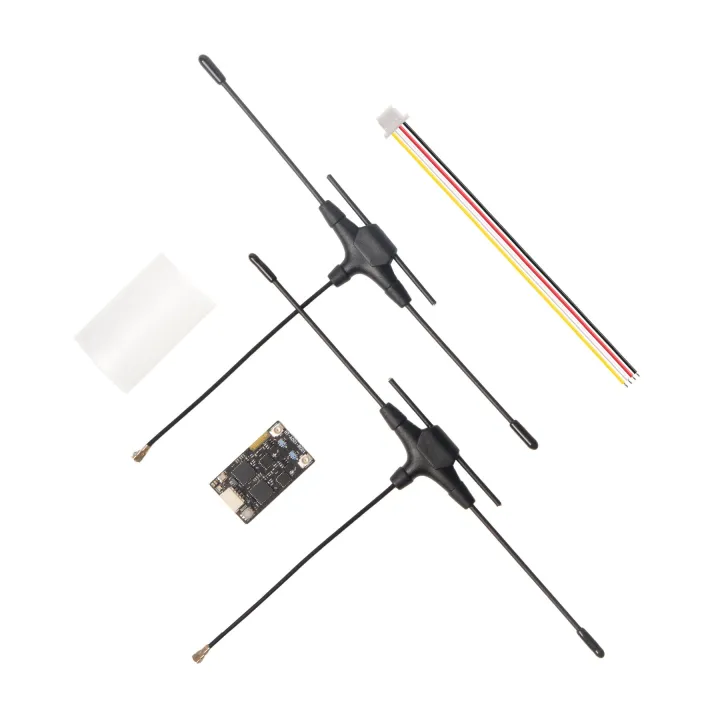

Package Includes

• 1 x Holybro Zephyr Gemini X receiver
• 2 x Dual-band T-antenna
• 1 x SH1.0 4-pin cable
• 1 x Heatshrink tube

Setup Guide

• ELRS Quick Start Guide
