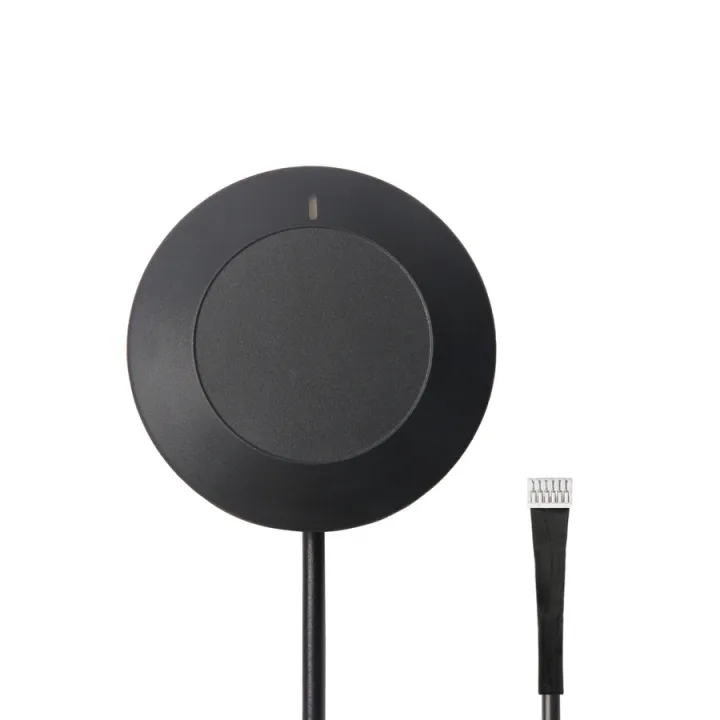

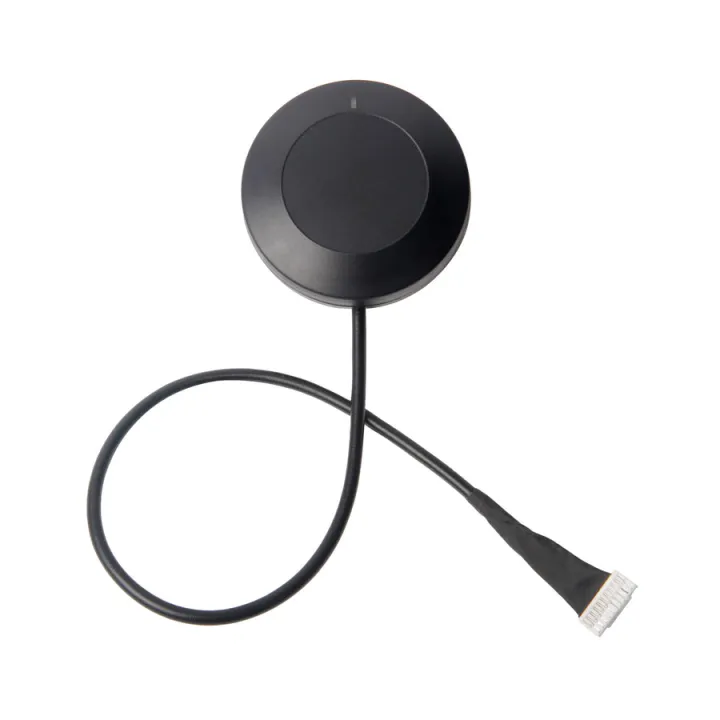

The M9N/M10 V2 GPS uses multi-constellation GNSS powered by u-blox M9N/M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.
The V2 design now comes with a more robust casing and an IP67 water&dust resistance rating.
It comes with a built-in IST8310 compass and tricolored LED indicator. There are 2 different connector options for different purposes. This module ships with a baud rate of 115200.
The high-gain 25 x 25 mm patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
Feature
- Ublox M9N or M10 GNSS Receiver
- Accurate Positioning
- Fast Navigation Update Rate
- IST8310 Compass
- High-gain 25*25*4mm antenna
- RGB UI LED controlled by the flight controller
- IP67 water & dust resistance
Changes From The V1 design
- New casing with IP67 rating
- Added SAW filter and receiver shielding for better signal integrity
- Removed buzzer and safety switch to reduce EM/RF interference
- Removed safety switch LED and GPS Fix LED
- Only the RGB UI LED controlled by the flight controller is present for better status recognition
Specifications
Note
- This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
- Ardupilot User: If unable to perform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.
PIN MAP
The difference between the two cable options
SKU12089 & 12086 - Holybro M9N/M10 GPS (JST GHR1.25mm 10pin cable):
- This option is the most common; it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin “GPS Module” or "GPS1" input port.
SKU12090 & 12087 - Holybro M9N/M10 Secondary GPS (JST GHR1.25mm 6pin cable):
- This connector can be used on Pixhawk Standard Flight Controller 6-pin“UART & I2C” or "GPS2" input port as a secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.
Reference Link:
Package Includes:
- 1x M9N V2 or M10 V2 GPS Module

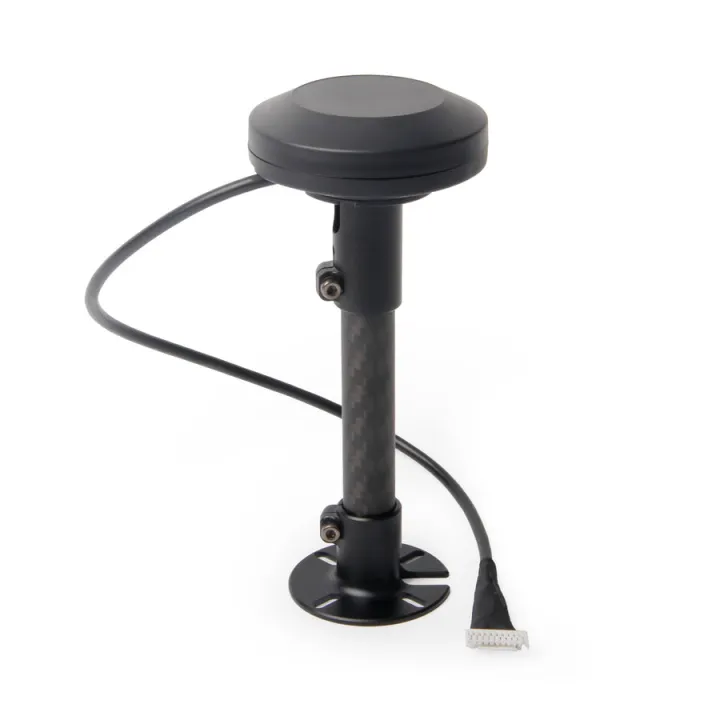

- 1x Fixed Carbon Fiber GPS mount
