Drone Soccer Goal 40×60×10 (Plastic with Electronic Scoring)

Brief Introduction

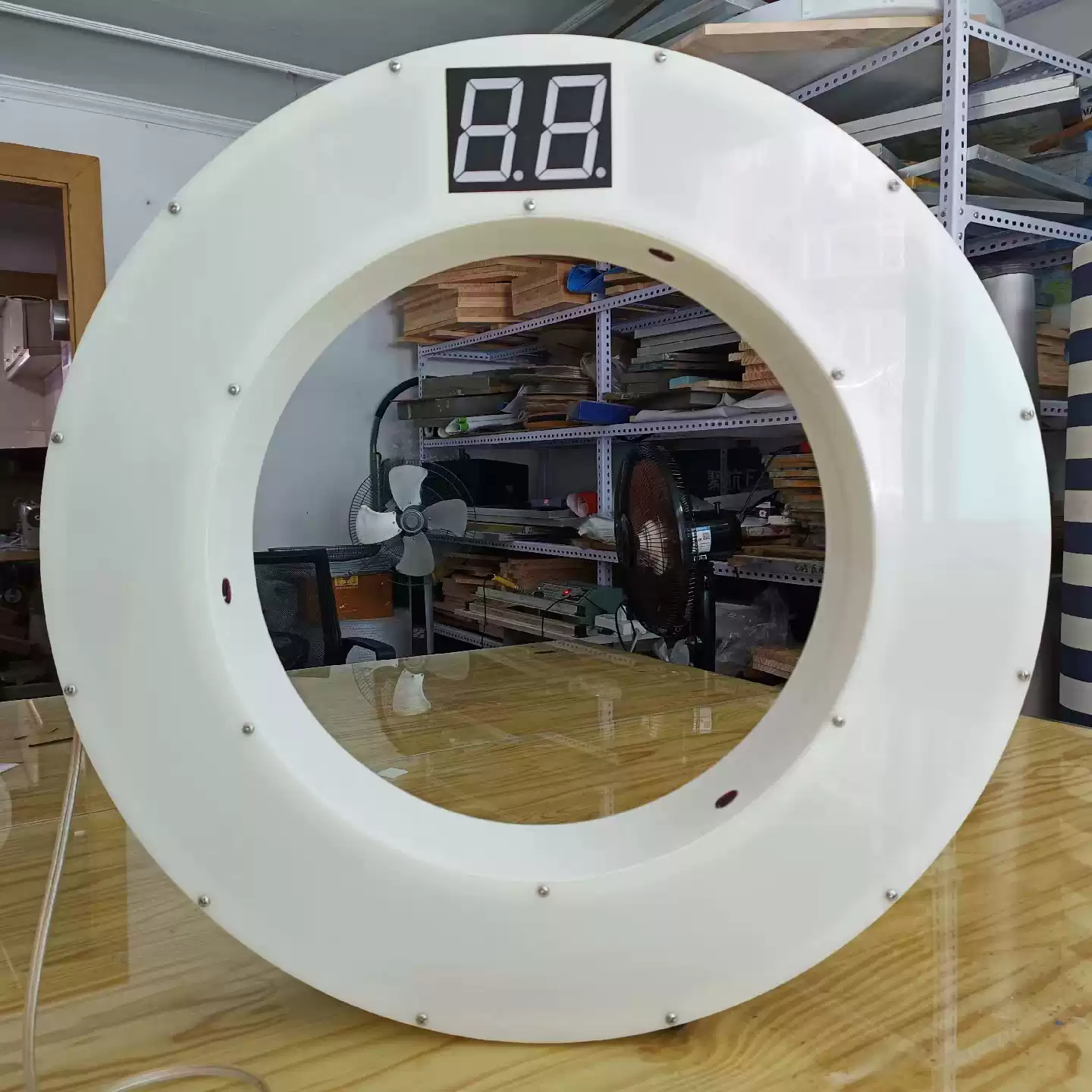

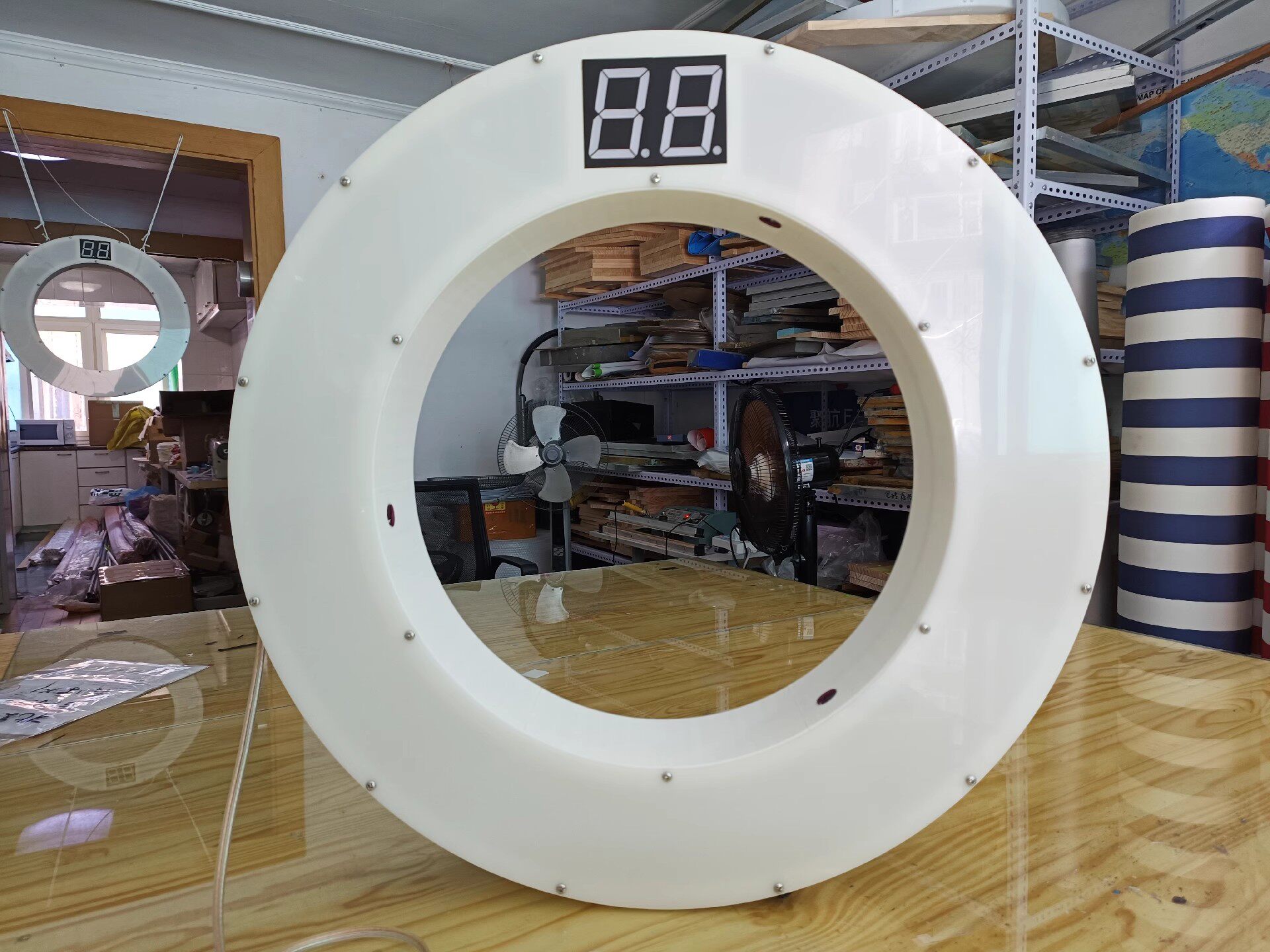

Dimensions: Inner diameter 40cm, outer diameter 60cm, thickness 10cm.

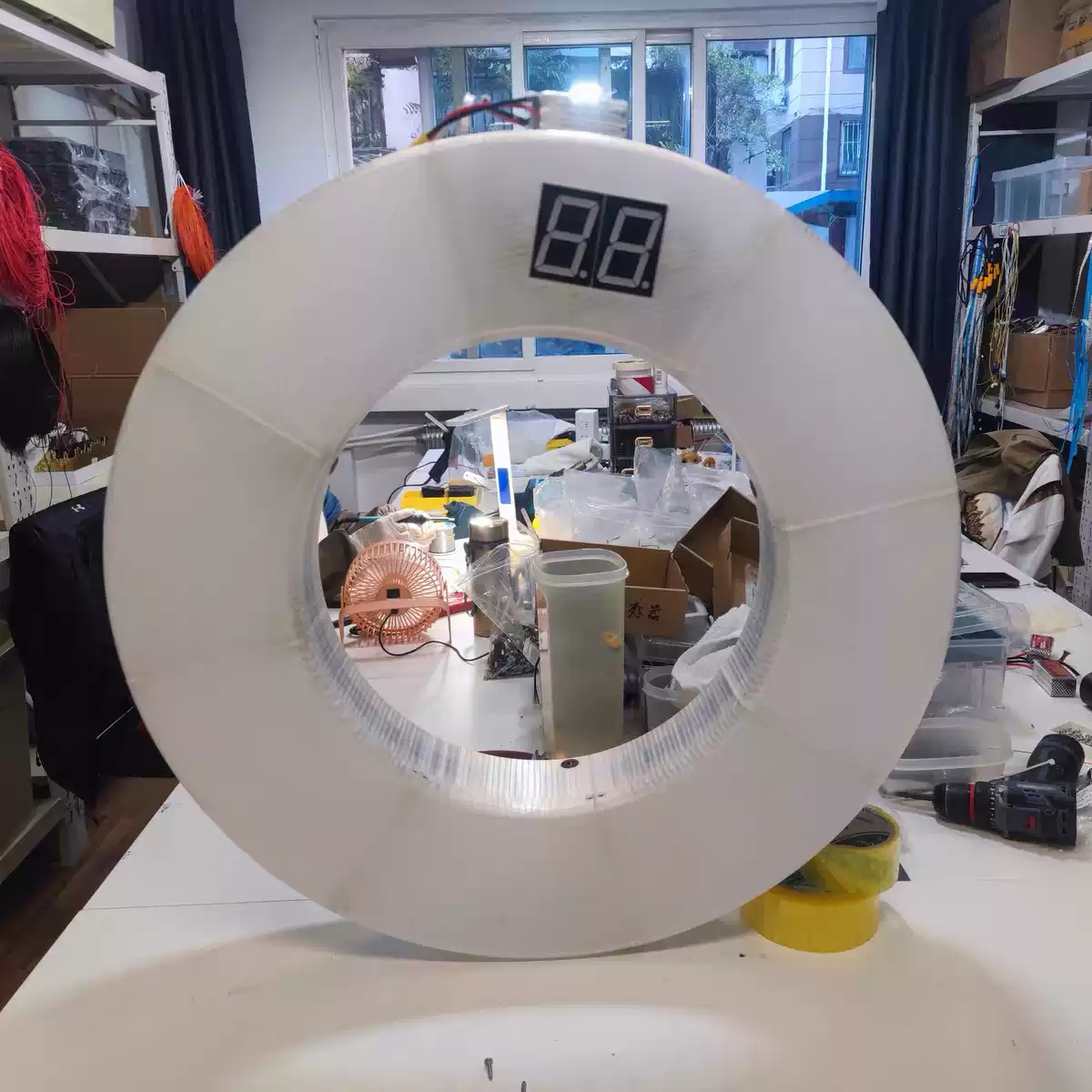

Material: Main structure is 3D‑printed ABS material; panels are cut from 3mm‑thick PP material.

Power Supply: 12‑30V DC input. Compatible with 3‑6S LiPo battery packs. Factory‑soldered XT60‑M connector.

Functions:

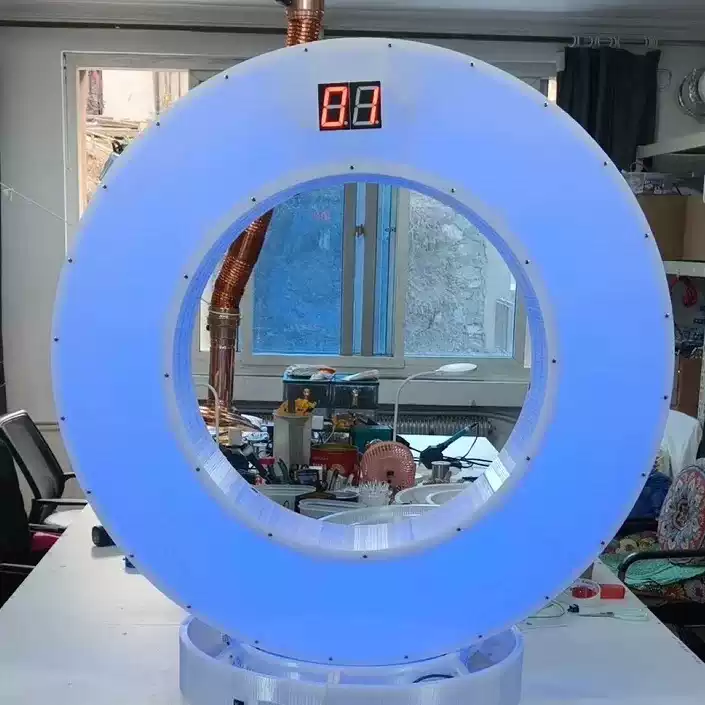

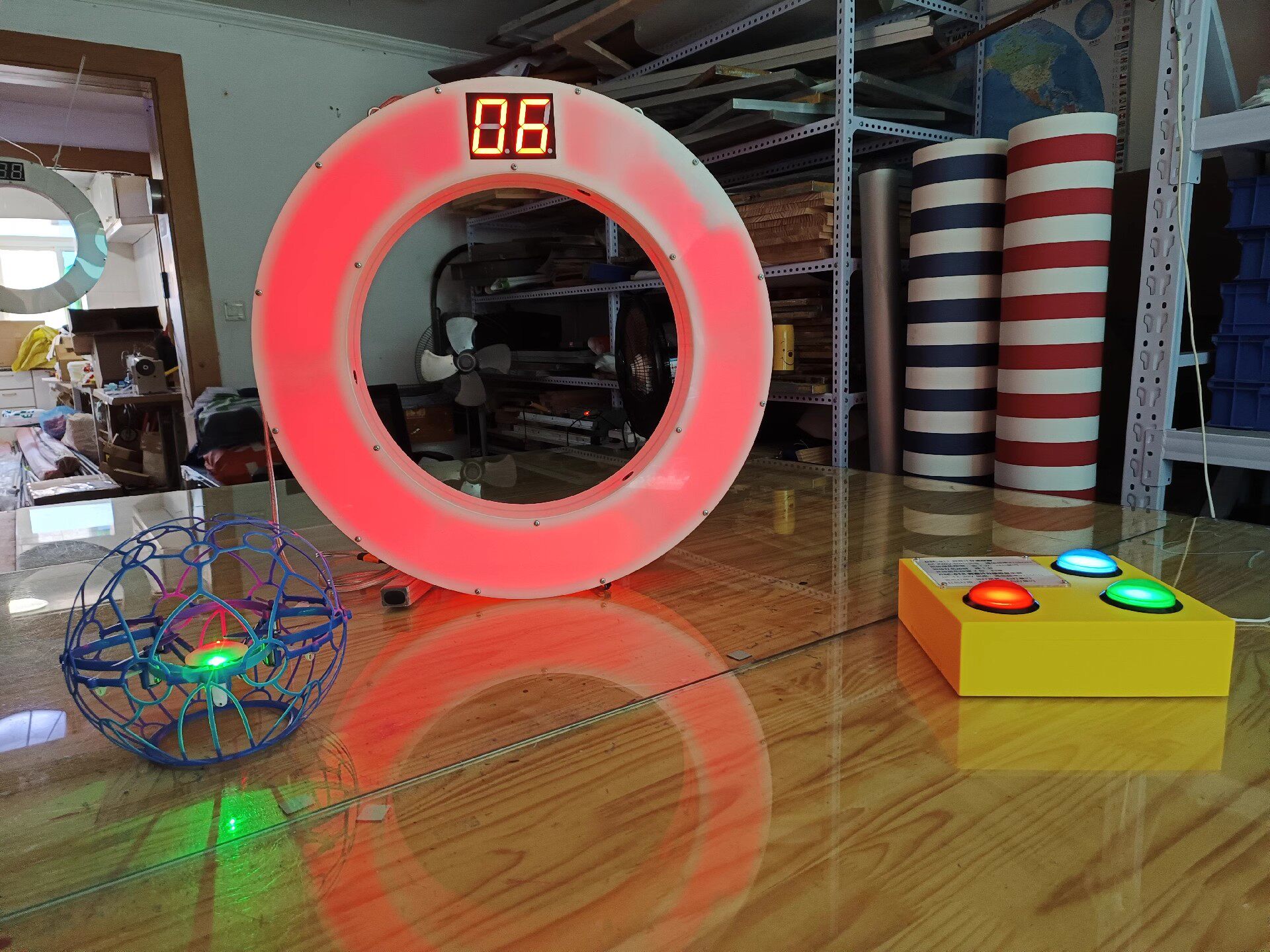

1. After power‑on, red (or blue) LED stays solid. White LED flashes rapidly upon score addition; no flash for score subtraction.
2. Power switch restarts the device and resets scores to zero.
3. Built‑in 3‑group infrared sensors: automatically add 1 point when a drone passes through the goal.

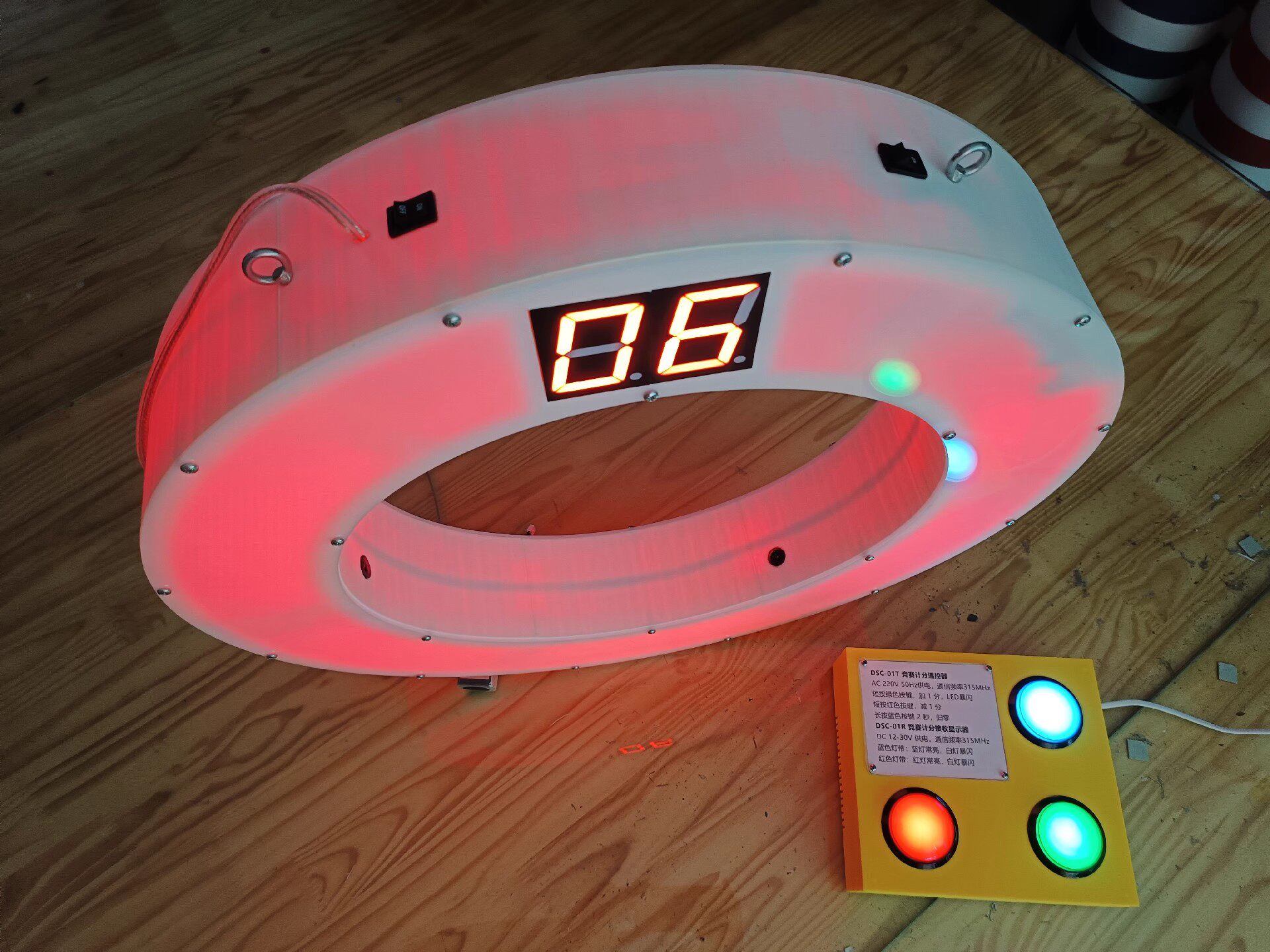

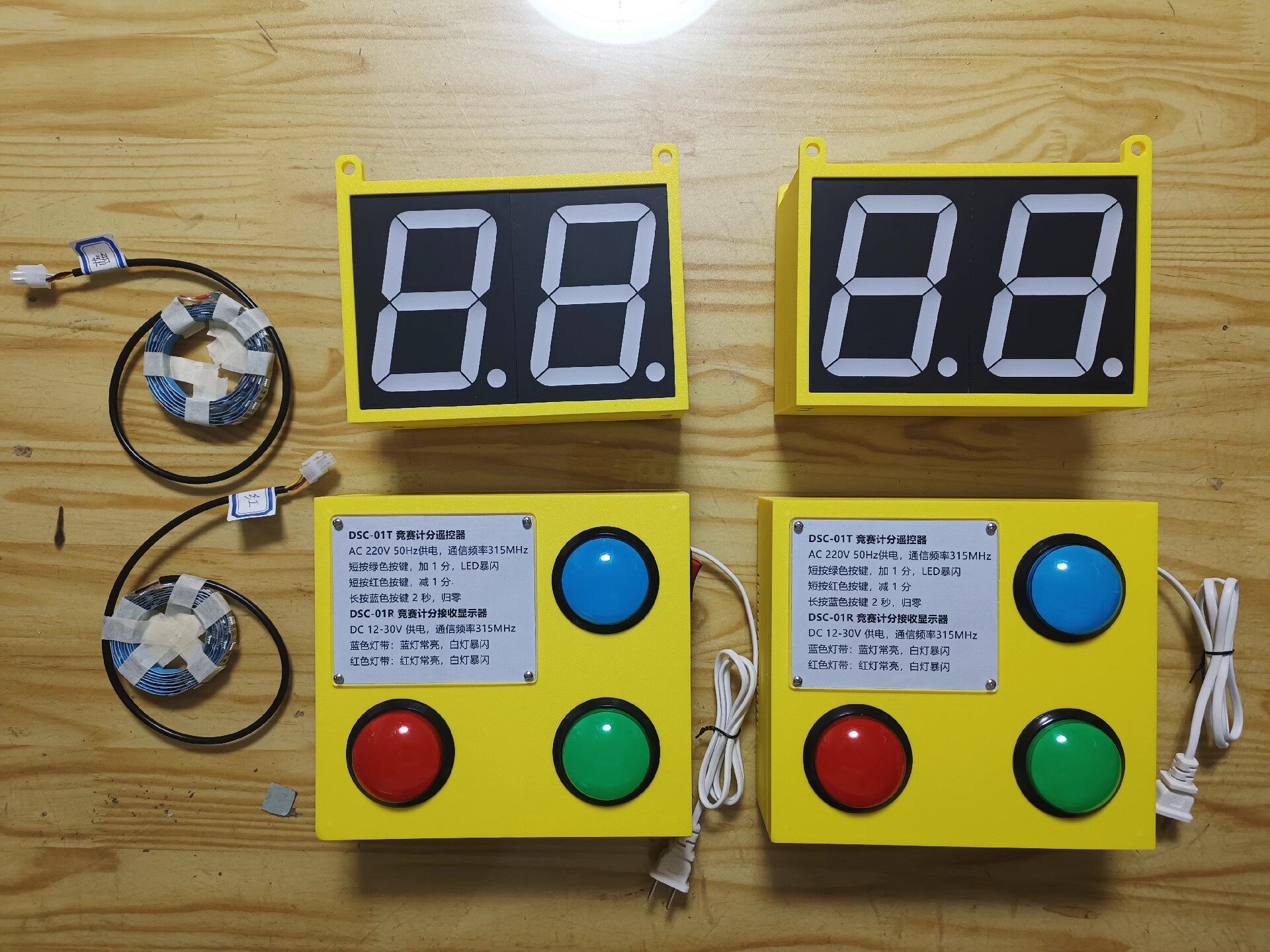

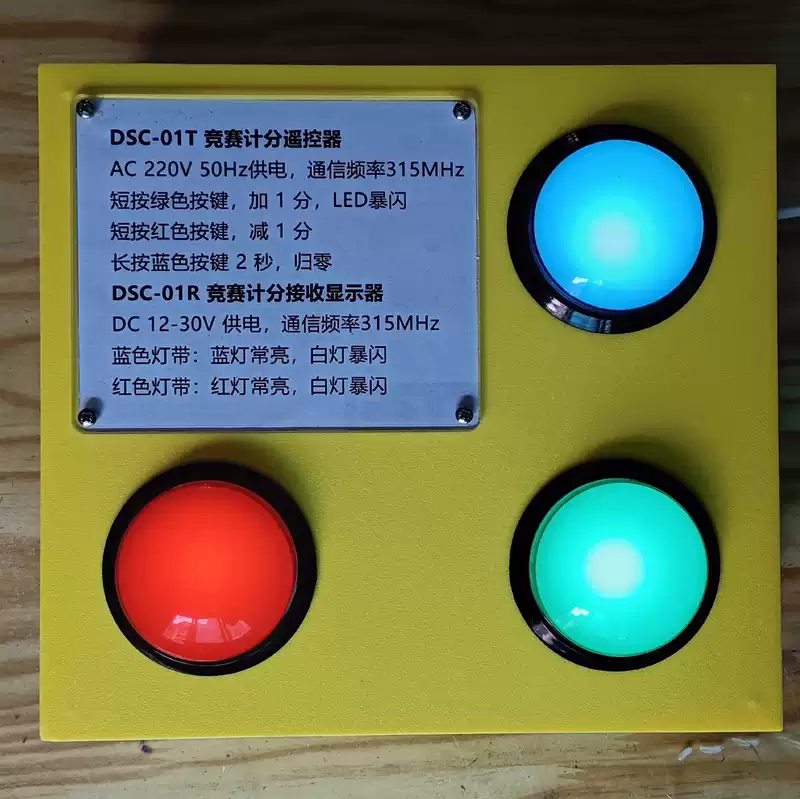

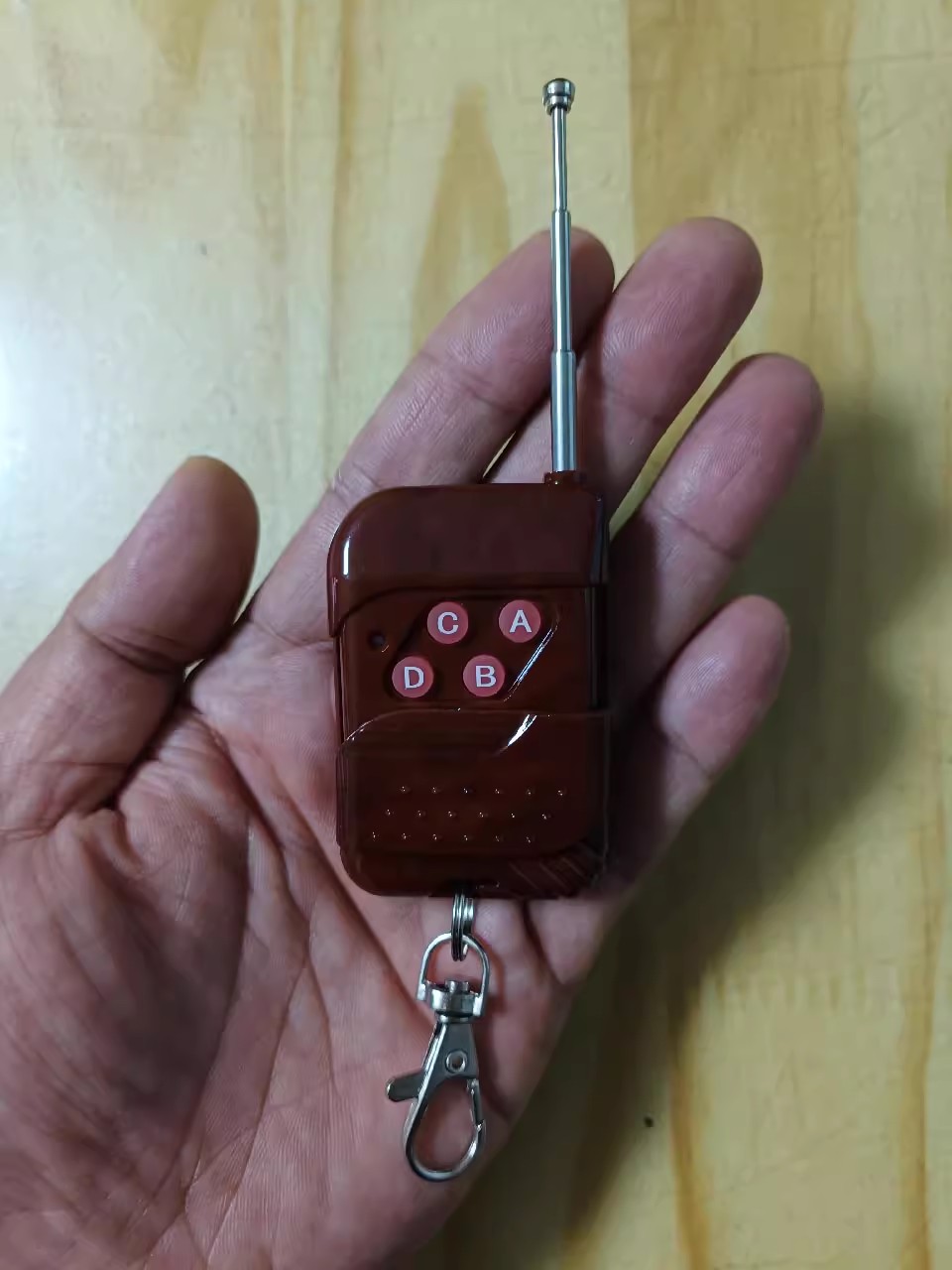

4. Integrated 315MHz radio‑frequency receiver. Works with DSC‑01T competition scoring remote controller for remote add‑point, subtract‑point and score‑reset operations.
5. Secondary switch disables infrared sensors for manual‑only scoring via remote controller.

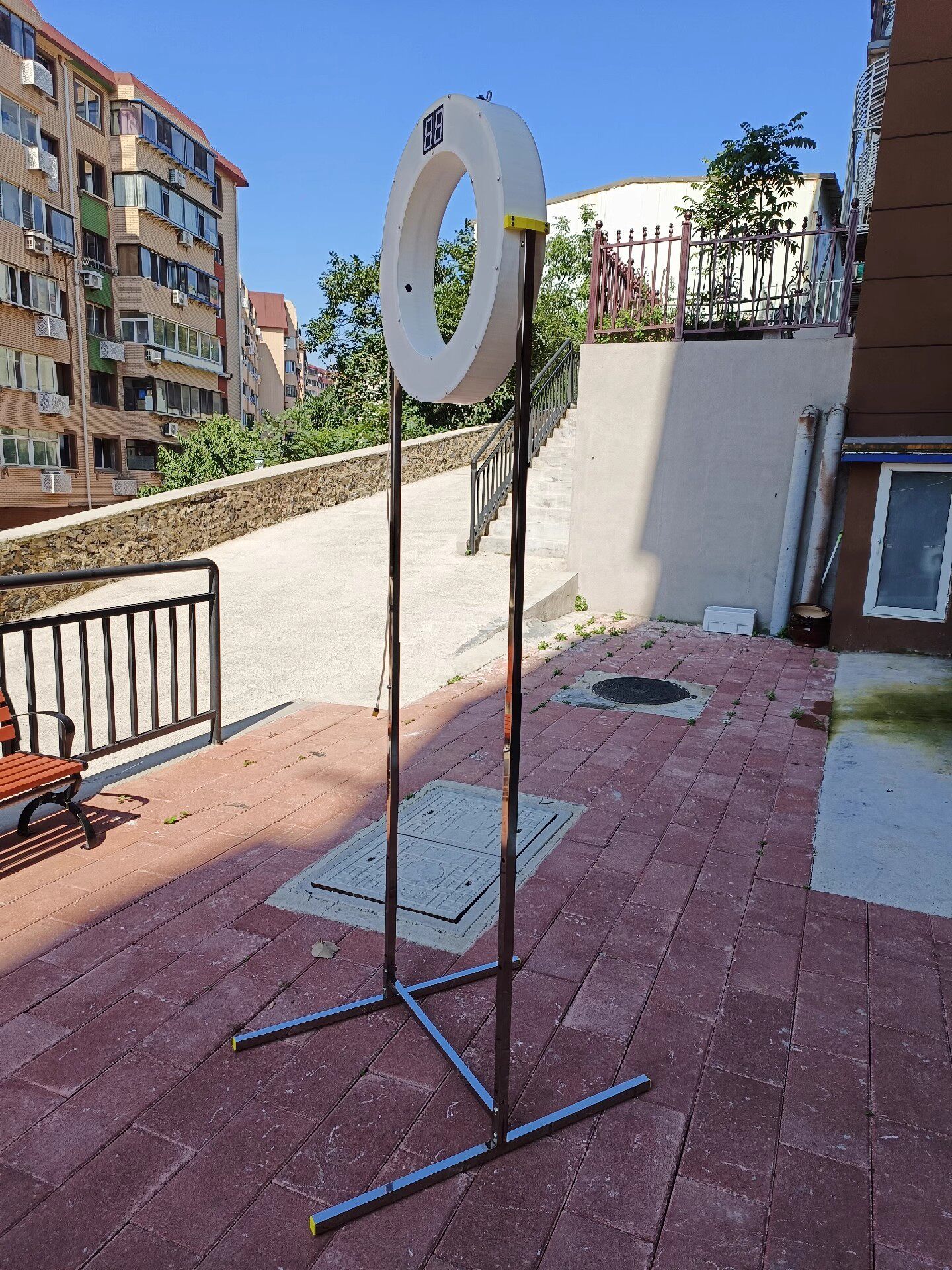

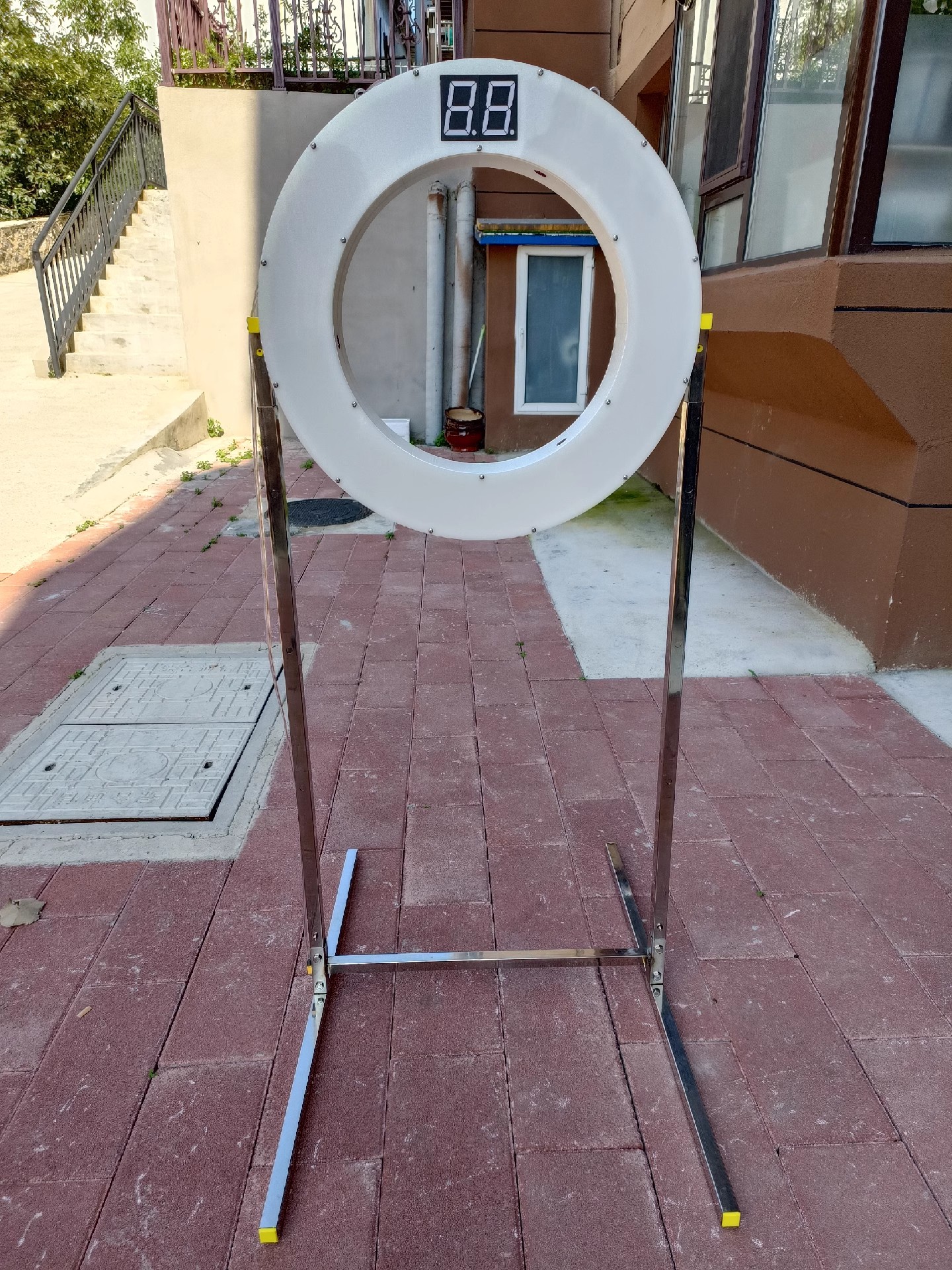

6. Supports hanging‑mount installation. Optional goal stand available. Adjustable center‑height above ground: 1.2m, 1.5m, 1.75m, 2m.
