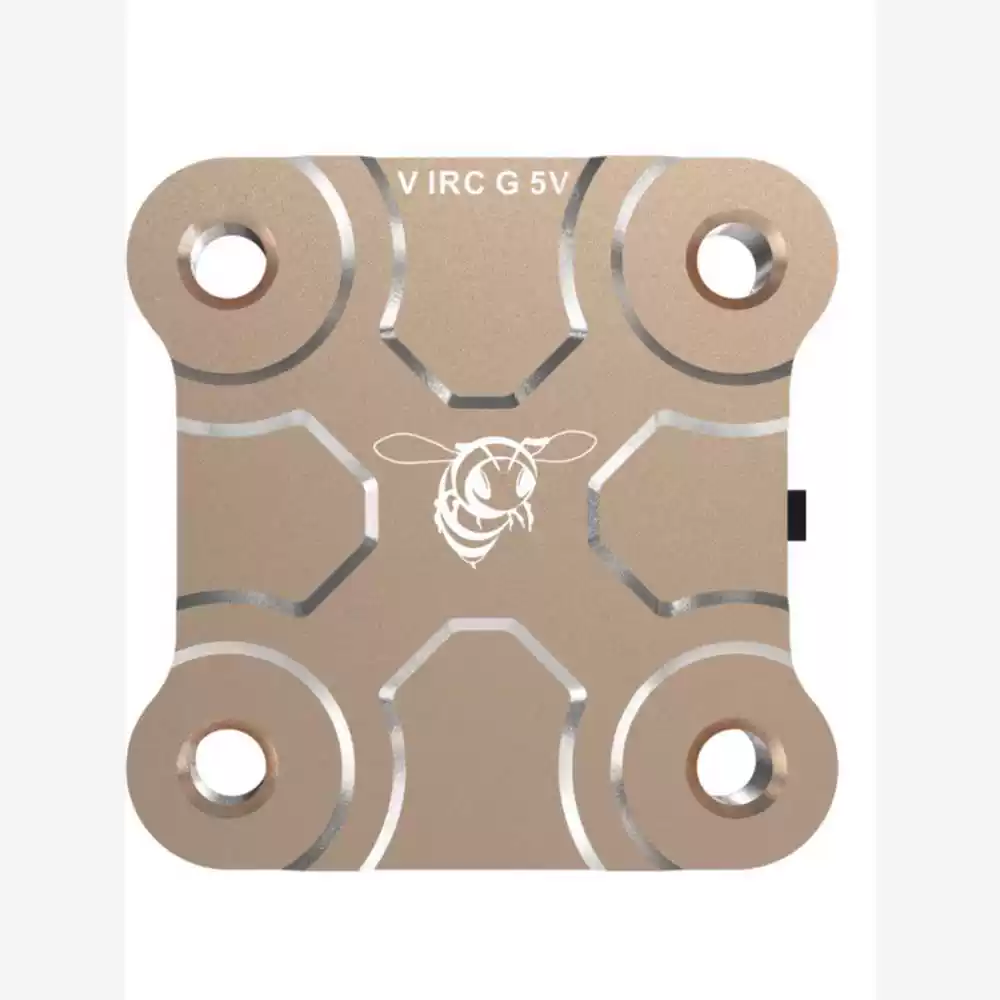

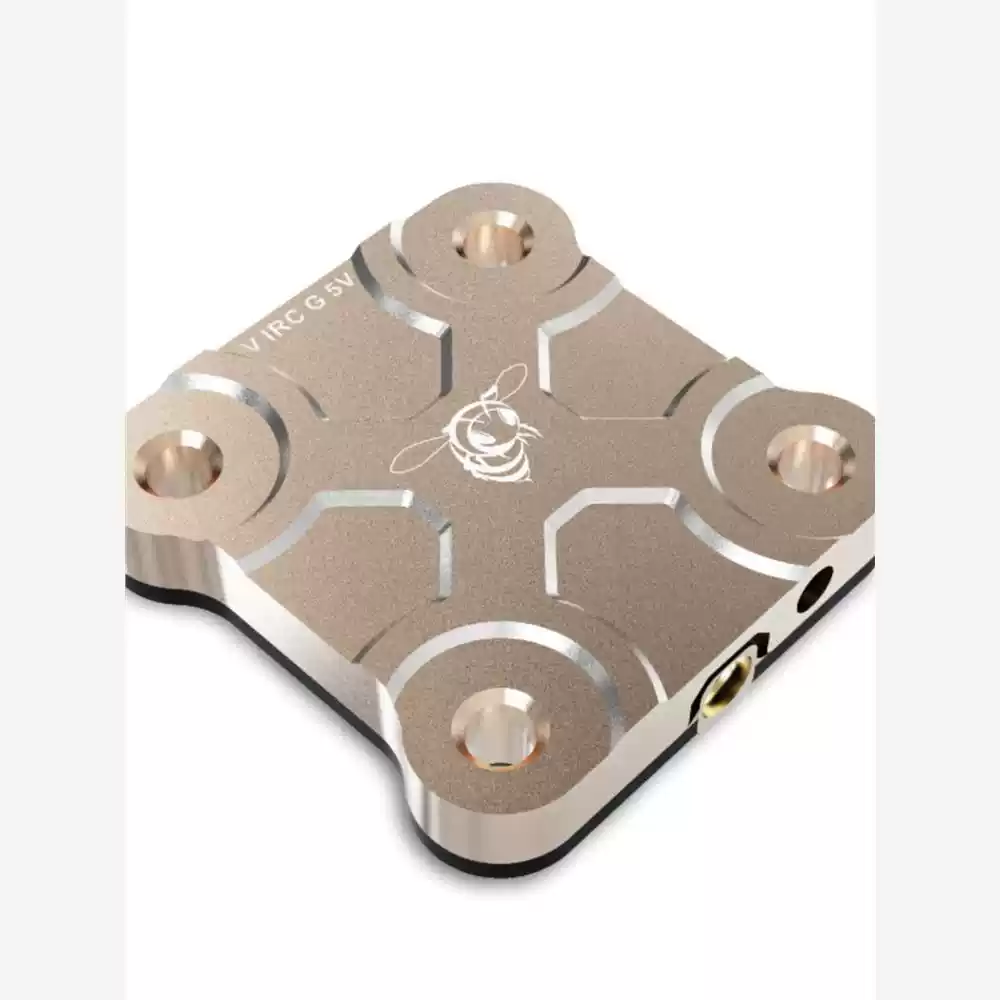

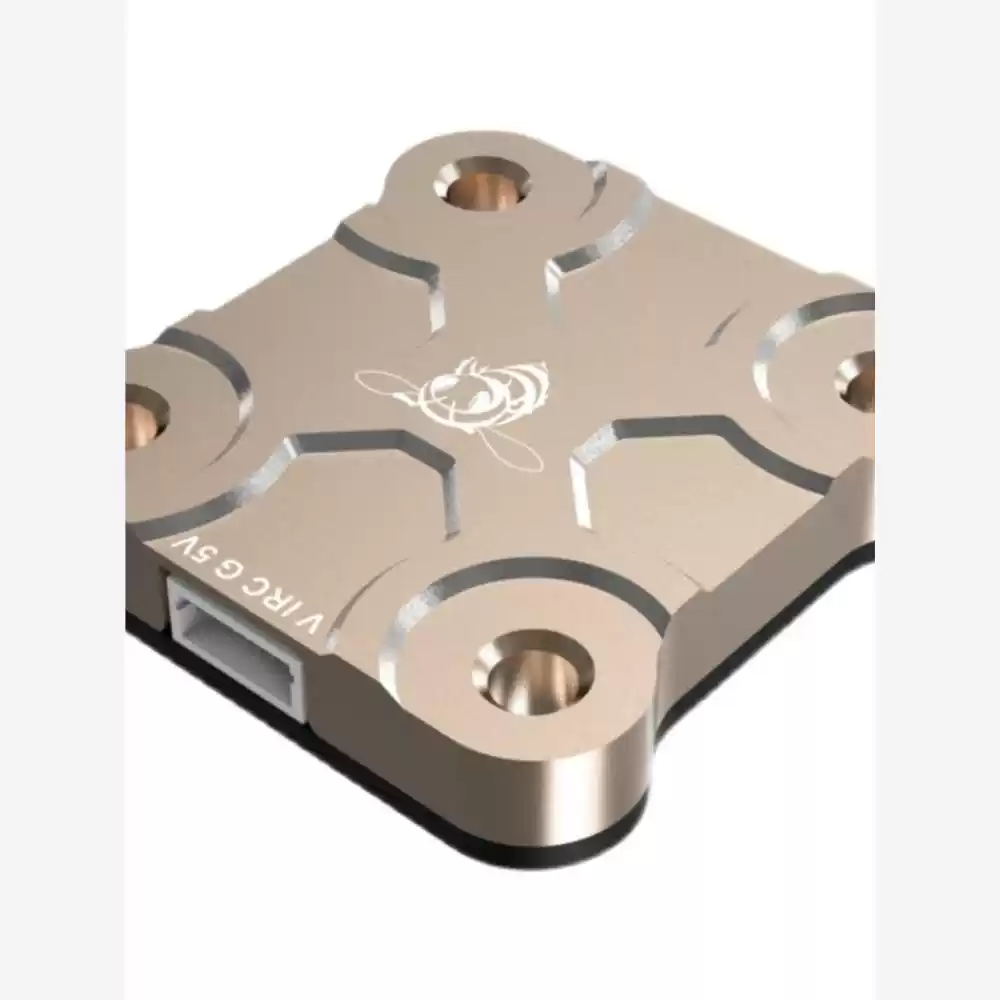

SpeedyBee TX800 |Mechfpv of Shenzhen Wholesale & OEM

The SpeedyBee TX800 is a 5.8GHZ VTX with a max output of 800MW, making it ideal for mid-range flying. This VTX has 20x20mm mounting holes and advanced features for all your FPV needs.

Package Includes:

1x TX800

1x MMCX antenna

1x MMCX to SMA Cable

1x 1.0mm 4pin Cable

Specifications:

Frequency: Channel 5.8GHz 48CH

Output Power: PIT/25mW/200mW/400mW/800mW

Working Current: 5V@250~750mA

Voltage out: 5V@max 250mA

Voltage in: 3.7-5V

Video input impedance: 75 Ohm

Antenna Connector: MMCX

Weight: 5.6g (without antenna)

PCB Size: 28mm*28mm@20*20

Mounting holes:M4 holes on the PCB; M3 holes on the metal heat sink
