Matek Systems Micro BEC 6-30V To 5V / 9V-ADJ Step-down Regulator

Matek Systems Micro BEC 6-30V to 5V / 9V-ADJ Step-down Regulator Module

Specification:

Brand name: Matek Systems

Article name: Micro BEC

Continuous load current: 1.5 amps (max.2.5A 5 s / minute)

VOut 5 V or 9 V Adj. Standard is 5 V.

Out load regulation: 2%

Standby current: <5mA

Maximum cycle: 95%

Pins distance: 2.54mm

Quantity: 3 pcs

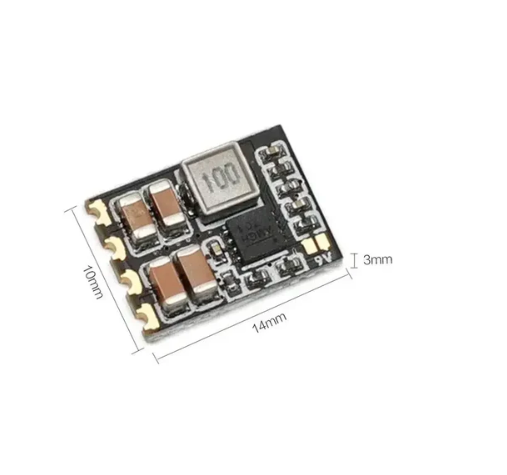

Size: 10x14x3mm

Weight: 1g

High efficiency synchronous step-down regulator

Wide 6V to 30V operation input range

OCP protection and Hiccup

Thermal shutdown

Output short-circuit tolerant (5 seconds / minute)
