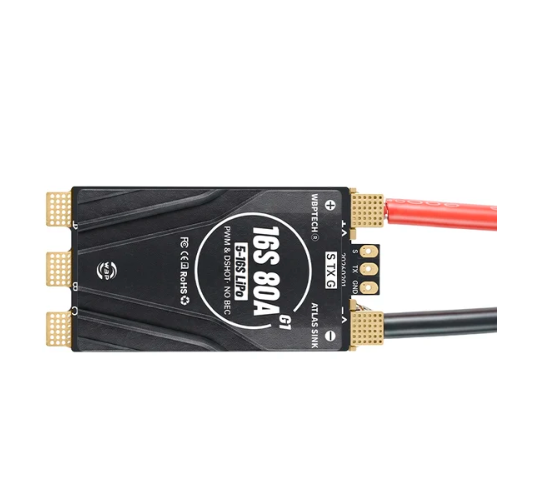

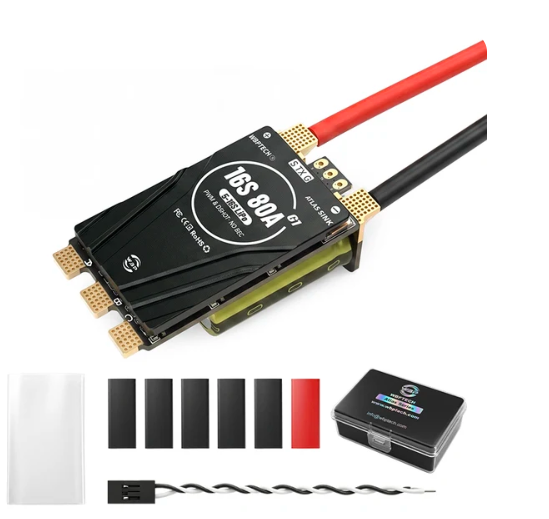

WBPTech Atlas Sink 16S80A G1 AM32 ESC 5-16S Lipo 80A Continuous 160A Peak
Specifications
description:
The WBPTech Atlas Sink 16S80A G1 is a high‑voltage AM32‑based brushless ESC built for X‑class large‑size multirotor drones. It supports 5‑16S LiPo input, delivering 80A continuous current and 160A peak current. Powered by the 120 MHz AT32F421K8U7 MCU and optimized open‑source AM32 firmware, it offers fast throttle response, flexible parameter tuning and rich telemetry functions.

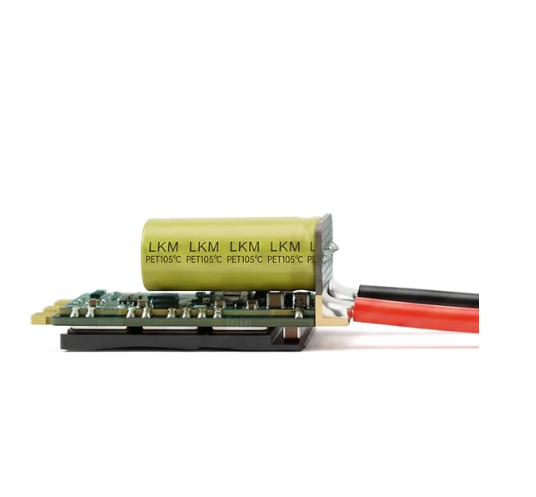

Built‑in aluminum alloy heat sink paired with 6‑layer 3oz thick‑copper PCB greatly improves heat dissipation and current‑carrying capability. Power‑signal separation layout minimizes electromagnetic interference. It supports automatic detection of PWM, DShot300 and DShot600 signals, with sensor‑less sinusoidal startup for smooth motor spin‑up. Comprehensive protections including stall, stuck‑rotor and overheat safeguard your hardware. Perfect for 10‑18 inch heavy‑lift, long‑range and industrial FPV drone builds.
Specs:
l Model: Atlas Sink 16S80A G1
l SKU: WBP-AT-SK-16-080-G1-AM32
l Firmware: AM32_WBPTECH_AT1680G1_F421_2.19
l Voltage: 5S~16S Lipo
l Peak Current: 160A(3S), 120A(10S)
l Continuous Current: 80A(60S); 45A(5 mins) (under good heat dissipation condition)
l BEC: No
l Power Wire: 12 AWG
l Length of Power Wire: 120mm
l Programming Tool: ESC Config Tool
l Programming Link: http://am32.ca/
l Import Source Support: PWM/ Dshot300/ Dshot600
l Data Transmission: TX Port
l Startup: OPEN/ Sinusoidal Startup(sensorless)

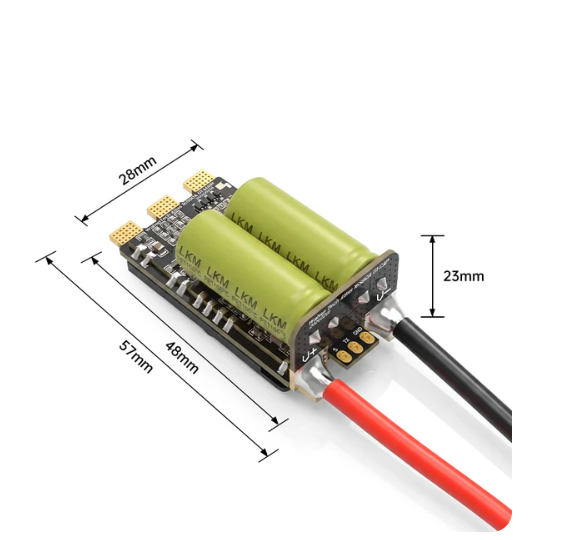

l Size: L57mm*W28mm*H23mm(without power wire)

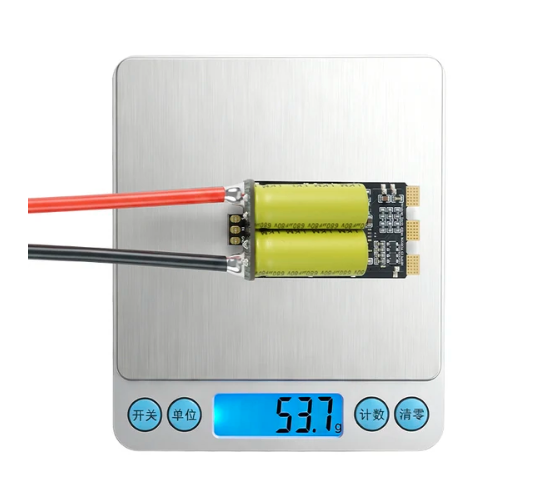

l Weight: 53.7g(with power wire)
