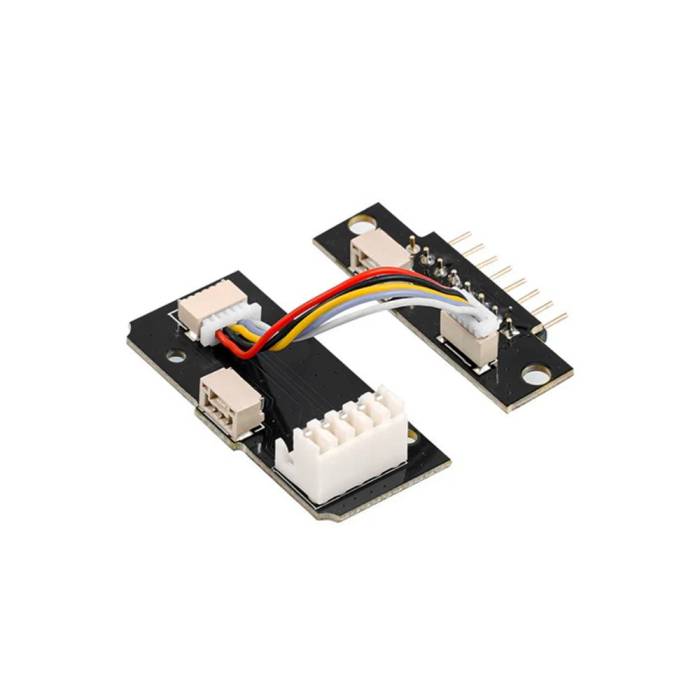

BetaFPV Micro Bay to Nano Module Adapter - PCBA Only

About this product

The BETAFPV Micro to Nano Module Adapter allows nano-sized transmitter modules to be used with radios that feature a JR-style micro module bay. This adapter provides a simple way to run compact nano modules, such as the BETAFPV Nano ELRS module, on transmitters designed for larger micro modules. It offers a clean and convenient solution for expanding radio compatibility while keeping your setup lightweight. The PCBA can be used directly without a case or used with a printed case.

Features

• Compatible with nano-size transmitter modules and JR-style micro module bays
• Allows nano modules to be used on transmitters with a micro module port
• Optimized for use with BETAFPV Nano ELRS modules in 900MHz or 2.4GHz versions

Specifications

• Input: JR module bay (Micro module bay)
• Output: Nano module bay (Lite module bay)
• Supported Radio Transmitters: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S, Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro, Radiomaster TX16S/TX18S, TBS Mambo
• Supported TX Modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX, Frsky XJT Lite/R9M Lite/R9M Lite Pro
• Dimensions: 65x48x28mm
• Weight: 24.8g

Links

• Adapter Case STL Files

Includes

• 1x BETAFPV Micro-Nano Module Adapter
• 1x Converter Cable
• 1x Adhesive Tape

The BETAFPV Micro to Nano Module Adapter allows nano-sized transmitter modules to be used with radios that feature a JR-style micro module bay.
