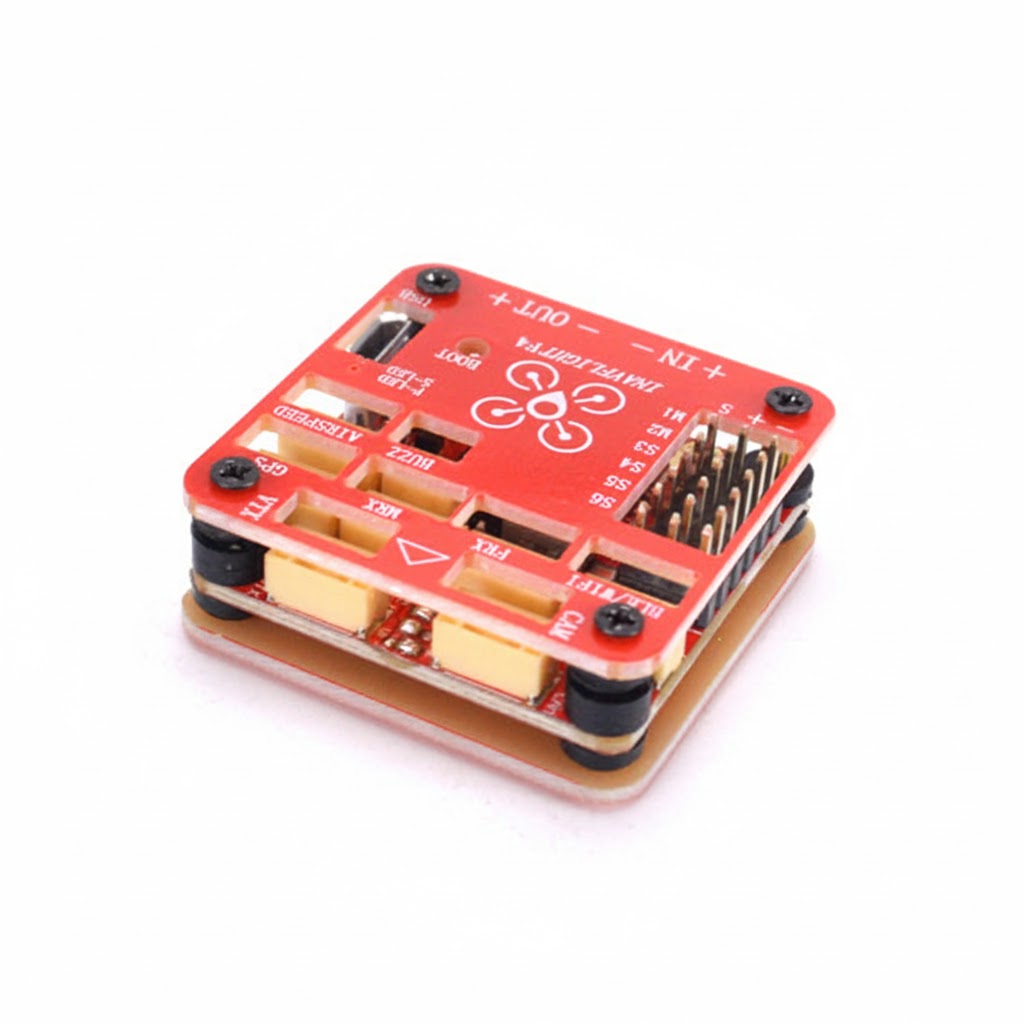

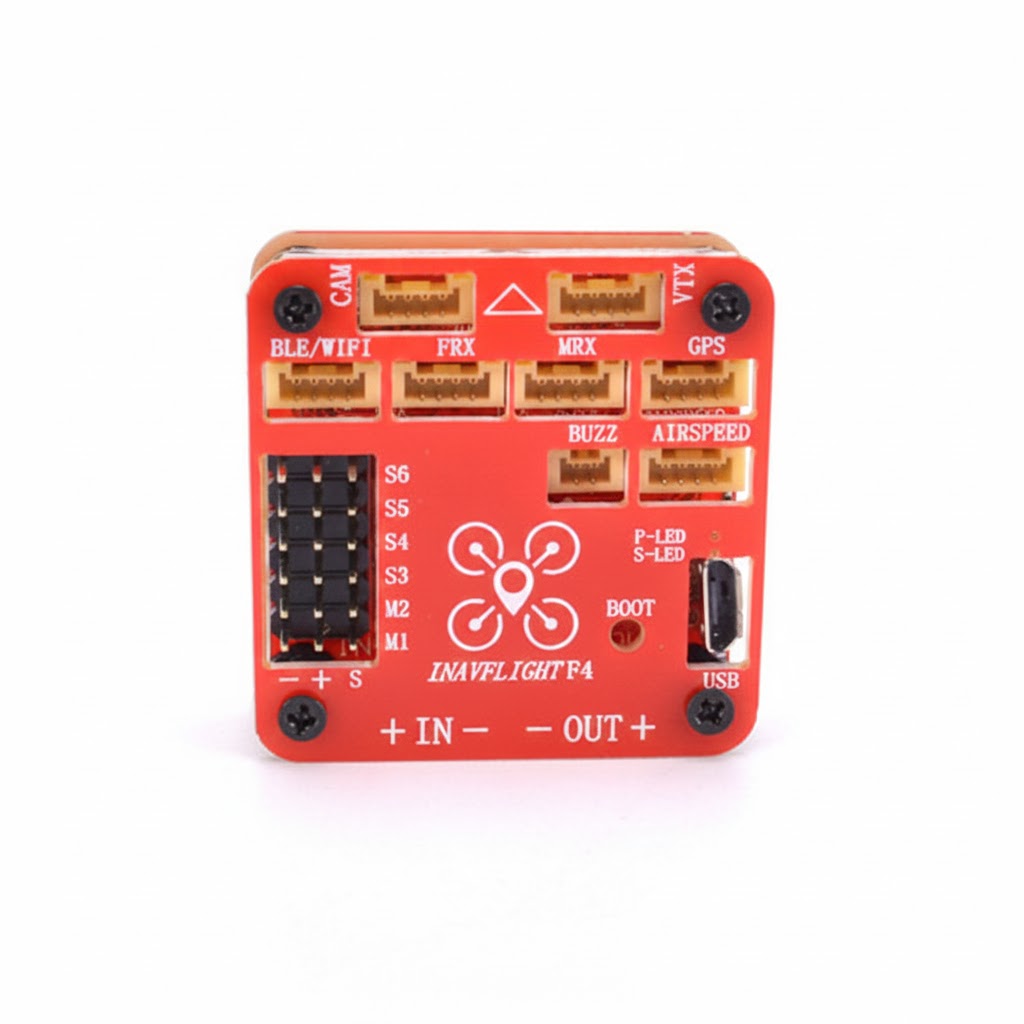

INAV Flight F4 Flight Controller Built-in OSD & Battery Voltage and Current Monitor

Description:

Item Name: FLIGHT F4 Flight Controller

Input Voltage: 7.4V - 22.2V (2-6S Lipo)

Dimension: 38x38x13mm

Weight: 18g

Application: Use INAV firmware can work with all kinds of RC Airplane

Features:

Ultra High Performance MCU STM F4 Integrated Chip

High Performance MPU-9250 Gyroscope & Accelerometer

Incredibly Precise MPU-9250 Magnetometer

Altitude Control Capability via Integrated BMP280 Barometer

Anti Vibration via Integrated Silicone Soft Mount Dampers

Powerful 120A Integrated PDB

Integrated OSD

Support up to 6 UARTs

Built-in Buzzer port and AirSpeed port

Integrated Driver Inverter for SBUS and S.PORT connections

Built-in Battery Voltage and Current monitor

Camera and VTX port built-in Peripheral pass

Integrated 5V@3A BEC for small Digital servos, can be easily changed to External BEC for bigger Servos

Can be easily changed to Camera Voltage and vtx Voltage

Can be easily changed to RX Voltage

Support INAV firmware

Simplified & Ready with Plug & Play Functionality

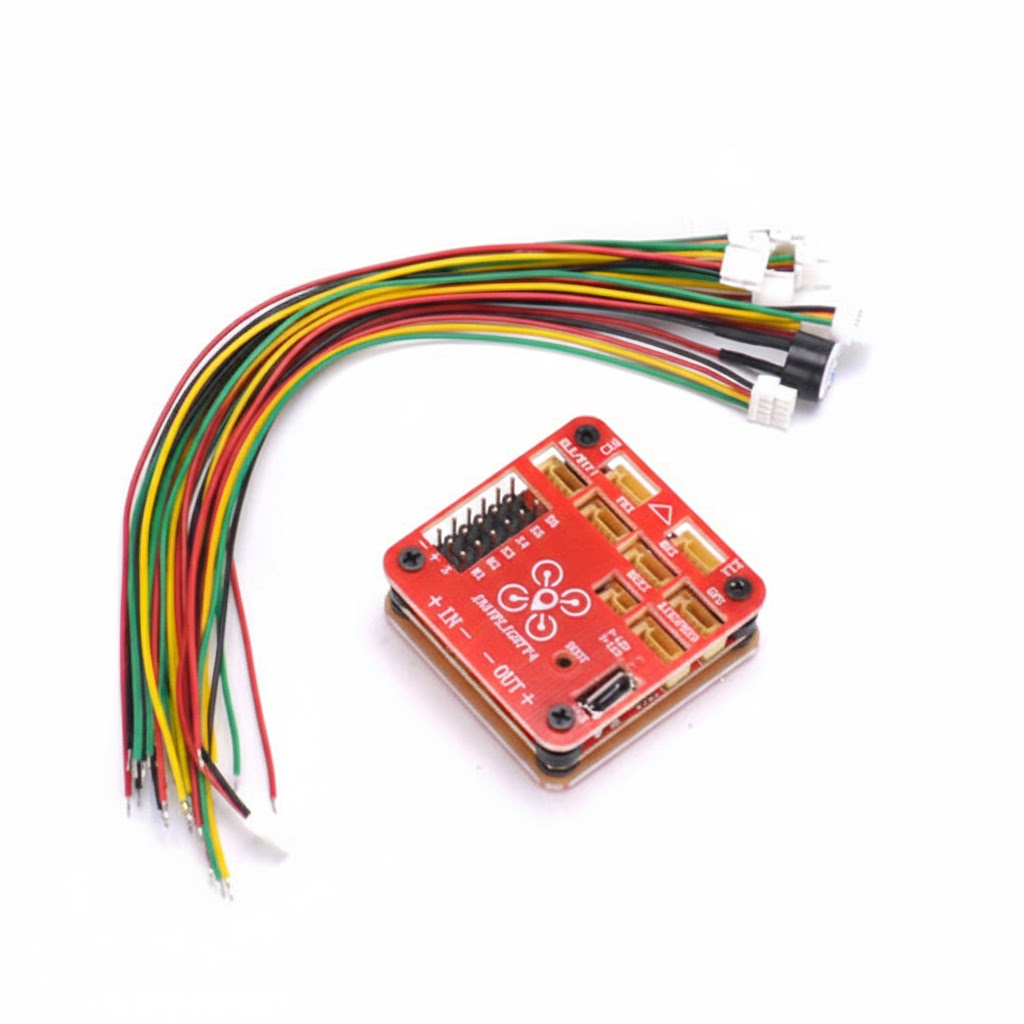

Package Included:

1x INAV FLIGHT F4 Flight Controller

1x Buzzer

8x 4P Wire
