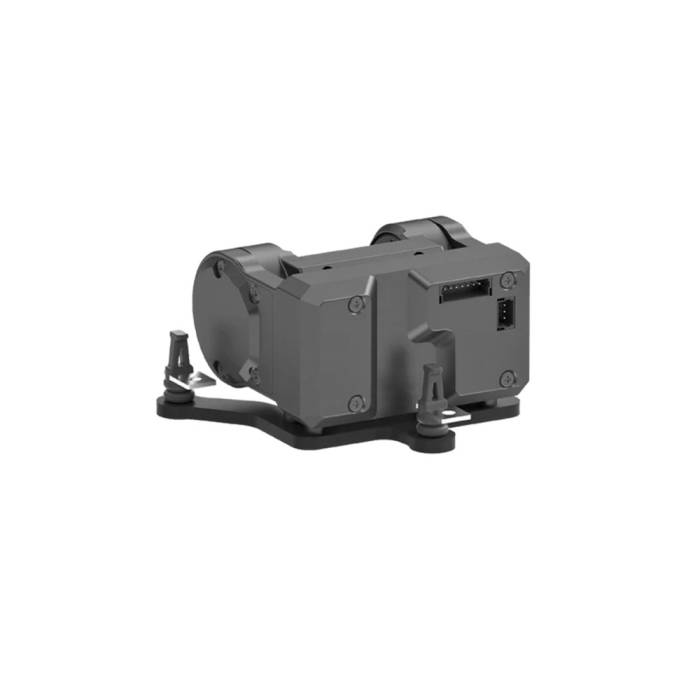

Caddx GM1 V2 HD FPV Gimbal

About this product

The Caddx GM1 HD V2 Gimbal was developed based on pilot feedback and incorporates the head tracking function of goggles. Caddx's R&D team designed this series of gimbals specifically for FPV cameras to cater to various user needs. The primary goal of the gimbal’s design is to enhance the pilot's experience by providing stable, smooth images, making it easy to capture stunning aerial videos and photos. The head tracking function adds an immersive feeling, turning every flight into an adventure.

Note: This purchase includes only the GM1 V2 HD FPV Gimbal; the VTX must be bought separately.

Features

• Compatible with Walksnail Avatar Goggles
• Enhanced FPV Experience
• Mechanical Stabilization
• Supports Head Tracking
• Modes and Sensitivity
• Controllable Gimbal
• Quick Assembly
• Flexibility

Specifications

• Camera Compatibility: Avatar/Ascent Series 19mm Camera
• Max Controllable Speed: ±1500°/s
• Max Controlled Rotational Range:
• Pitch: ±120°
• Head Tracking Control: Supports
• Static Power: 1.0W
• Stall Power: 7.5W
• Control Mode: PWM / UART / S.bus / Crsf / Mavlink
• Image Stabilization: ±0.005°
• Size: 43x46.4x56.9mm
• Model: GM1 V2-19
• Weight: 32g

Links

• GM1 V2 Manual

Includes

• 1x Caddx GM1 V2 HD FPV Gimbal
• 1x 7Pin Power Cable
• 1x Product Manual

The Caddx GM1 V2 Gimbal was developed based on pilot feedback and incorporates the head tracking function of goggles.
