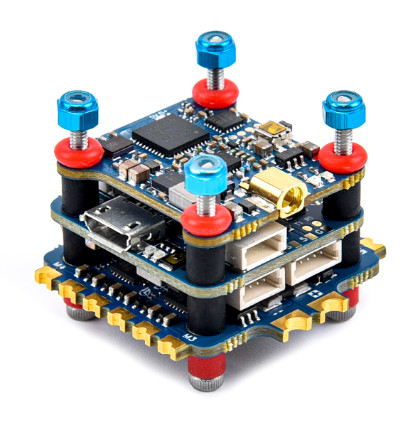

Cyclone Mini F405 20mm Stack with 35A ESC & 400mW VTX for Toothpick

■ Small cyclone separator BLS U 35AV2.1 2-6S 4-in-1 electronic stability control system

The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control

High system integration, greatly reduced than standard size, excellent performance, support 6S,

The target is J-H-30. Support DSHOT, MULTISHOT, ONESHOT, etc.,

The pad is half-expanded, saving space and being durable. feature:

■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power

Noise; electronic stability control system with BLHELI_ firmware

Support 2-6S voltage input, 4PWM input

Compact size 31 * 31MM, ultra light 6.1G

Support ONESHOT125, ONESHOT42, MULTISHOT,

DSHOT150, DSHOT300, DSHOT600

Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-6SLIPO

Mounting holes: 20X20 MM, M2

Target: J-H-30

Conventional: 25 amps

Peak: 35 amps

Size: 31 * 31MM (including power cushion)

Mounting hole: 20 * 20MM

Features

Mini F4V2.1 Flying Tower 2-6S

Mini F4V2.1 flight control

The newly released MINI V2.1F4 flight control system has been optimized overall.

The main welding port is upgraded to a terminal plug, which is convenient for pilots to disassemble and assemble.

The F405 MUC with MPU6000 gyroscope is optimized,

To get better flight performance. Built-in programmable RGB LED interface,

Used for external LED to set LED color, function and status. Built-in OSD chip,

Monitor flight data status at any time, with intelligent audio function; Features:

With SUBUS, SUMH, SUMD, SPEKTUMU1024 /

2048, XBUS, PPM receiver, etc. compatible;

LED light bar signal output port, adjust LED light through FC

The color and flashing pattern of the bar;

Voltage / amp monitoring port, check battery voltage (VBAT + port)

And current (CRT port) (requires additional ammeter);

Buzzer output port allows to connect external buzzer to FC,

To warn or notify flight status;

XF5806 VTX 5.8G

Model: XF5806_ V2

Input voltage: 7-26V

Control protocol: TBS SmarAudio V2.

Onboard BEC output: 5V

Antenna connector: MMCX

Number of transmitting channels: 40

Wiring method: pad

Transmit power: 25/100/200 / 400mW

Mounting hole: 20 * 20

Video format: PAL / NTSC
