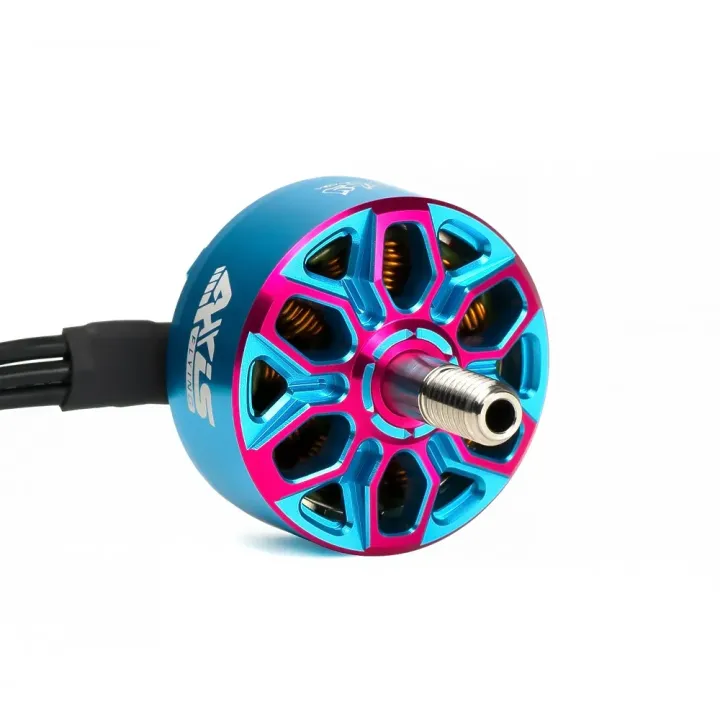

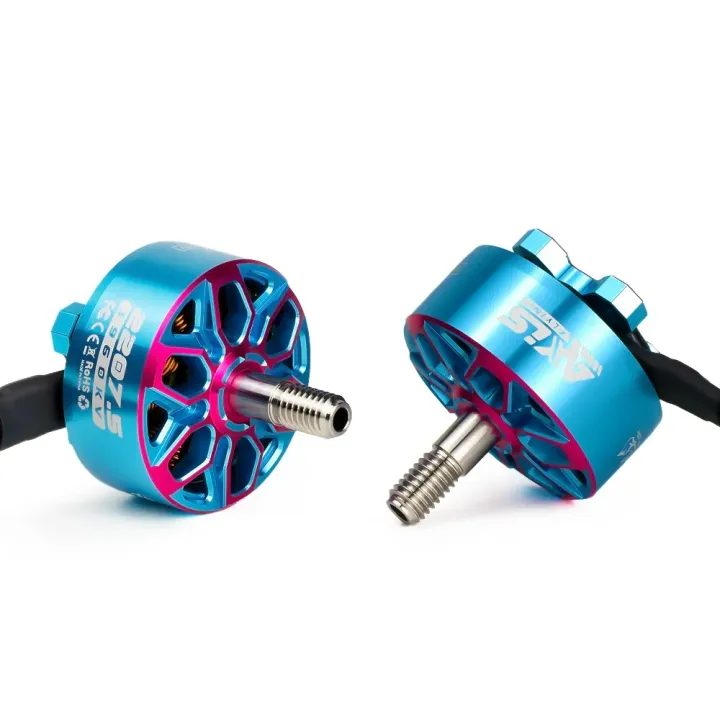

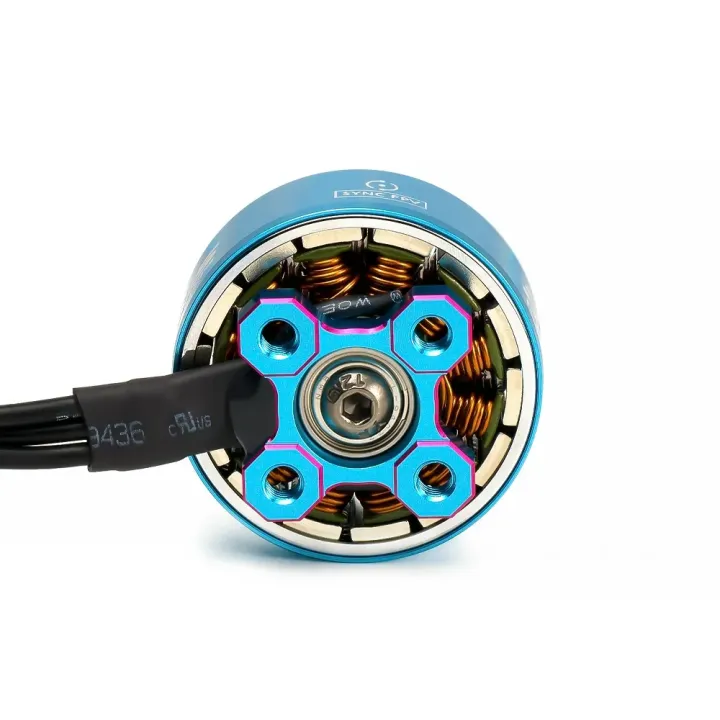

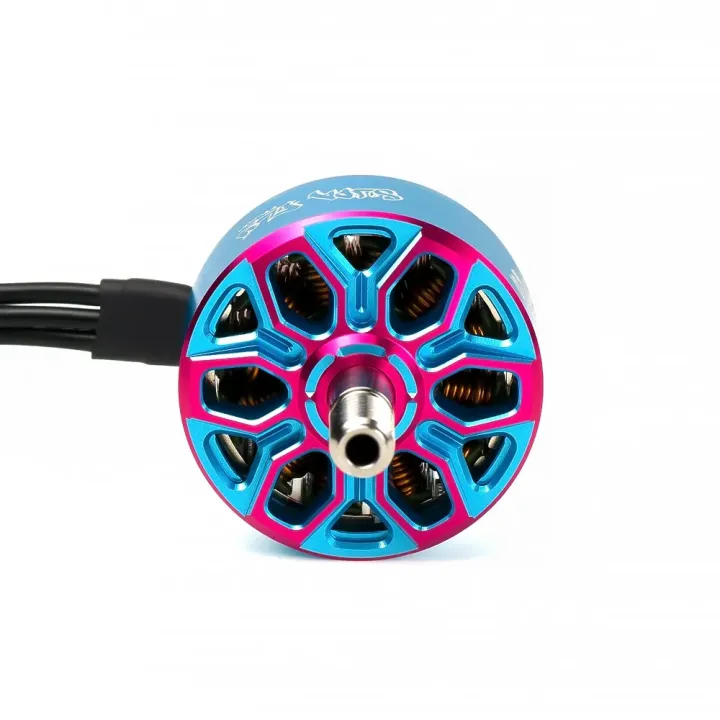

Axisflying 2207.5 1860KV/1960KV 6S FPV Freestyle Motor
Specifications
Description
About this product
This is a co-branded motor jointly built by Axisflying, SyncFPV and Supafly, professionally tuned for 5-inch freestyle & bando flying. It brings explosive thrust, smooth linearity and extreme durability, making it the ultimate power choice for hardcore freestyle pilots.
Feature
- Official collaboration: Axisflying × SyncFPV × Supafly
- Specially tuned for 5-inch freestyle & bando flight
- 12N14P structure with high-performance arc magnets
- Strong low-end torque & instant throttle response
- High-temperature enameled wire & imported NMB bearings
- One-piece bell for better crash resistance
- Lightweight & well-balanced for long-time aggressive flying
- Perfect match with BB4943.5 propellers
Recommended Configuration
- Motor: Axisflying 2207.5 Collaboration (1860KV / 1960KV)
- Voltage: 6S LiPo
- Props: BB4943.5
- Application: 5-inch freestyle, bando, hardcore acro
Specifications
1960KV (Collaboration Edition)
- KV: 1960KV
- Configuration: 12N14P
- Internal Resistance: 58.08mΩ
- Size: Φ27.9×32.9mm
- Shaft Diameter: 4mm
- Silicone Wire: 20# 150mm
- Rated Voltage: 6S
- Weight (excl. cable): 35.50g
- Max Power: 962.23W
- Peak Current: 39.83A
- Max Thrust: 1819g
- Idle Current: 1.15A
- Mount: 4-M3
1860KV (Collaboration Edition)
- KV: 1860KV
- Configuration: 12N14P
- Internal Resistance: 58.13mΩ
- Size: Φ27.9×32.9mm
- Shaft Diameter: 4mm
- Silicone Wire: 20# 150mm
- Rated Voltage: 6S
- Weight (excl. cable): 35.65g
- Max Power: 833.05W
- Peak Current: 35.8A
- Max Thrust: 1711g
- Idle Current: 1.20A
- Mount: 4-M3
Package Contents
- 2207.5 Collaboration Motor ×1
- M3×8mm mounting screws ×5
- M3×4mm shaft lock screw ×1
- M5 lock nut ×1
- Damping ring ×1
- Gasket ×1
