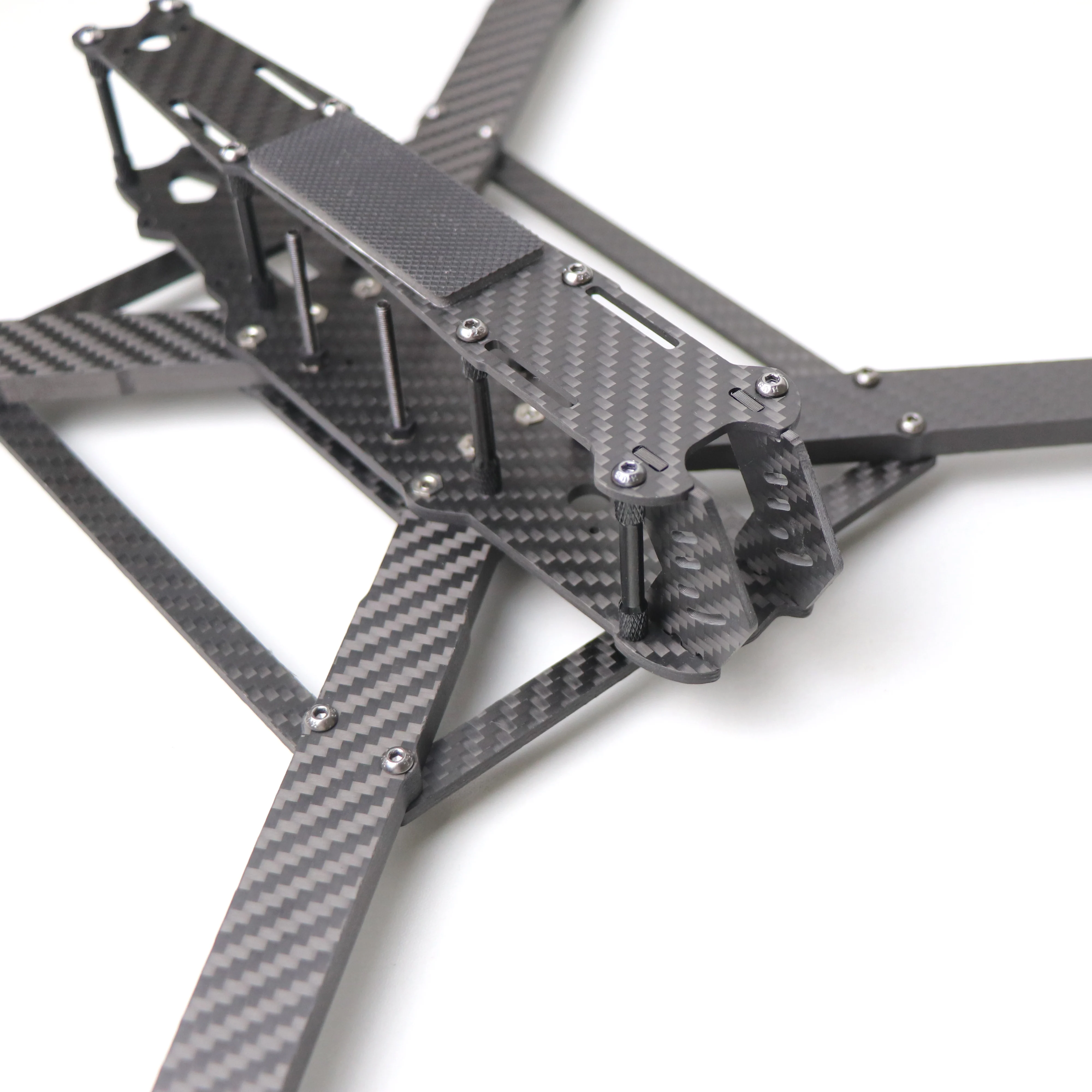

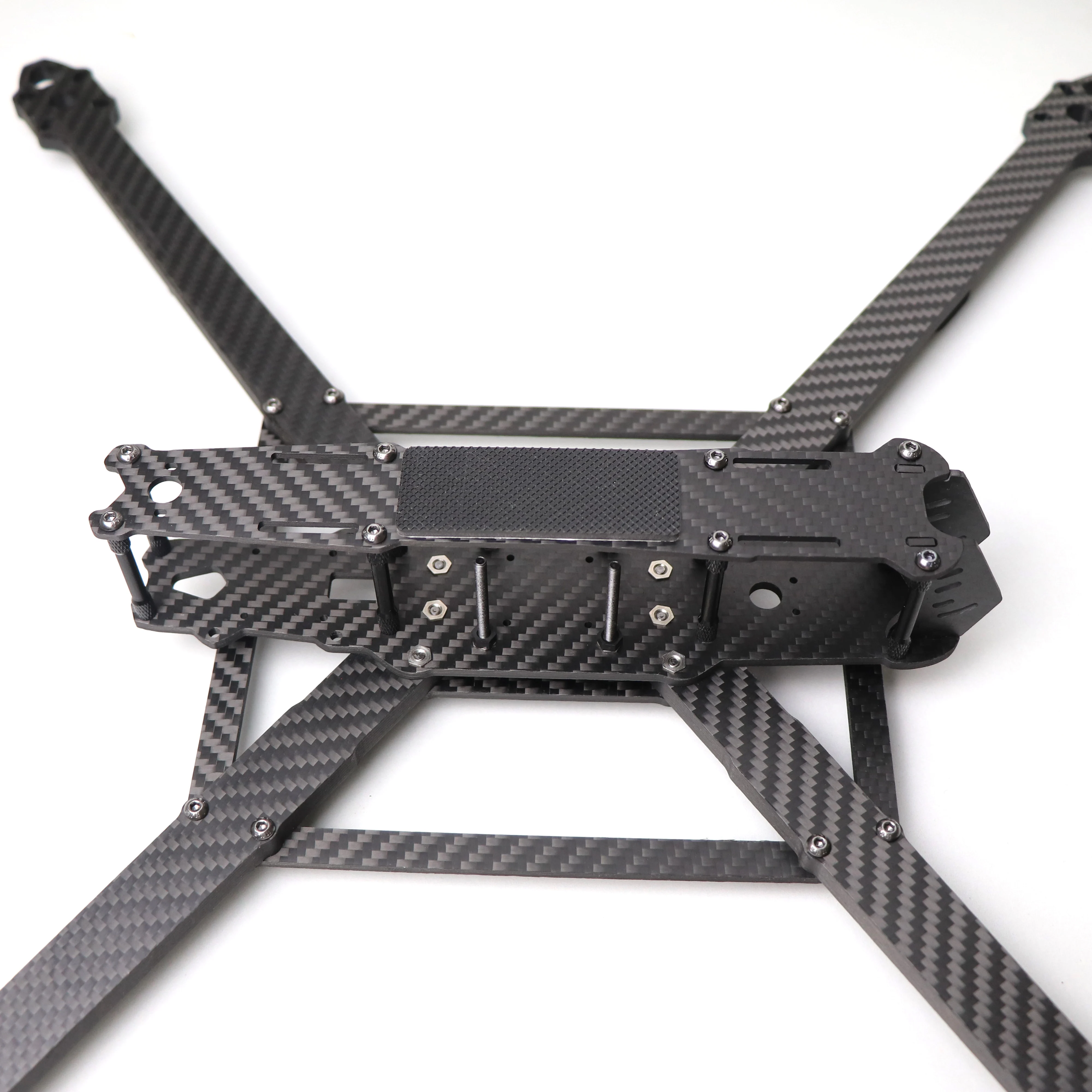

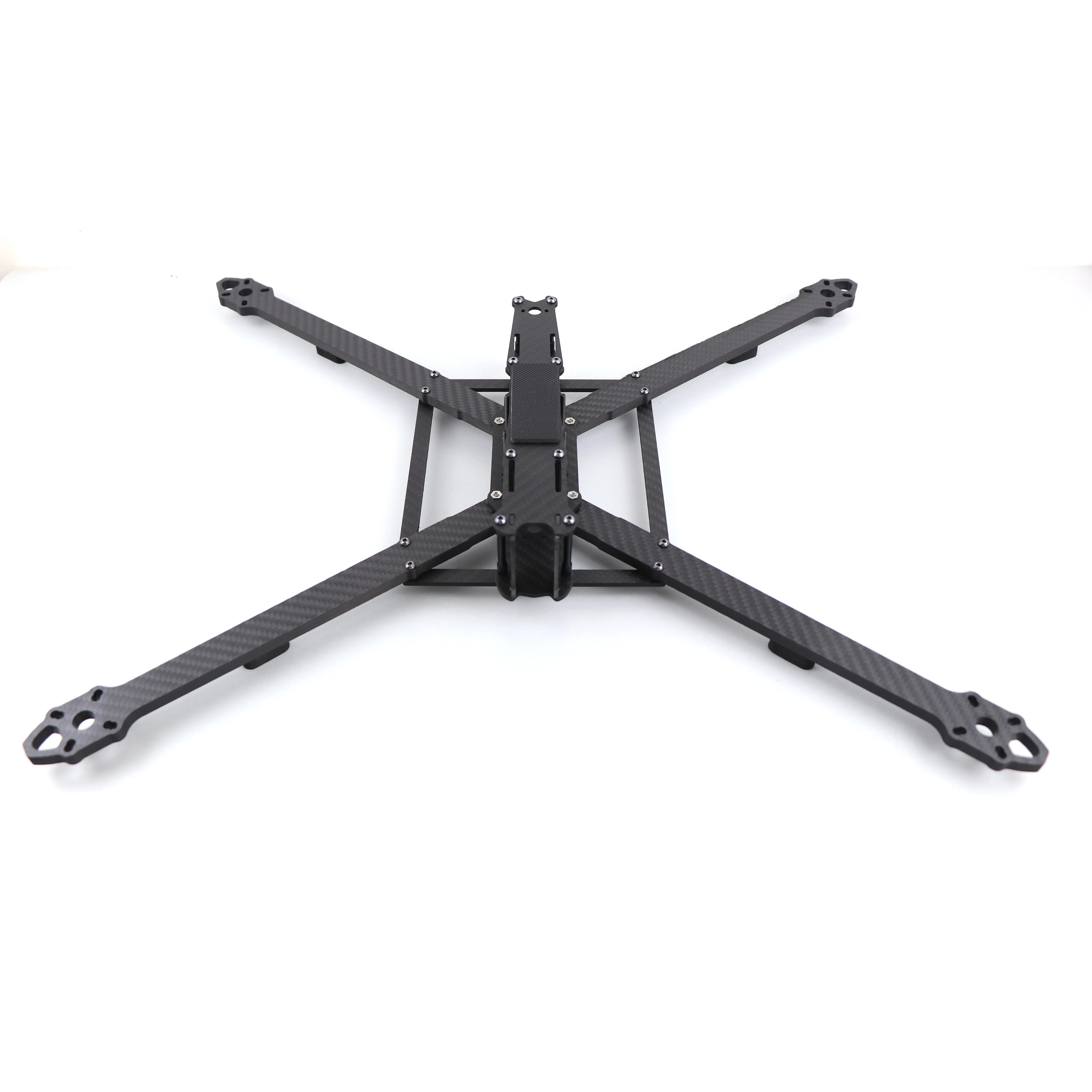

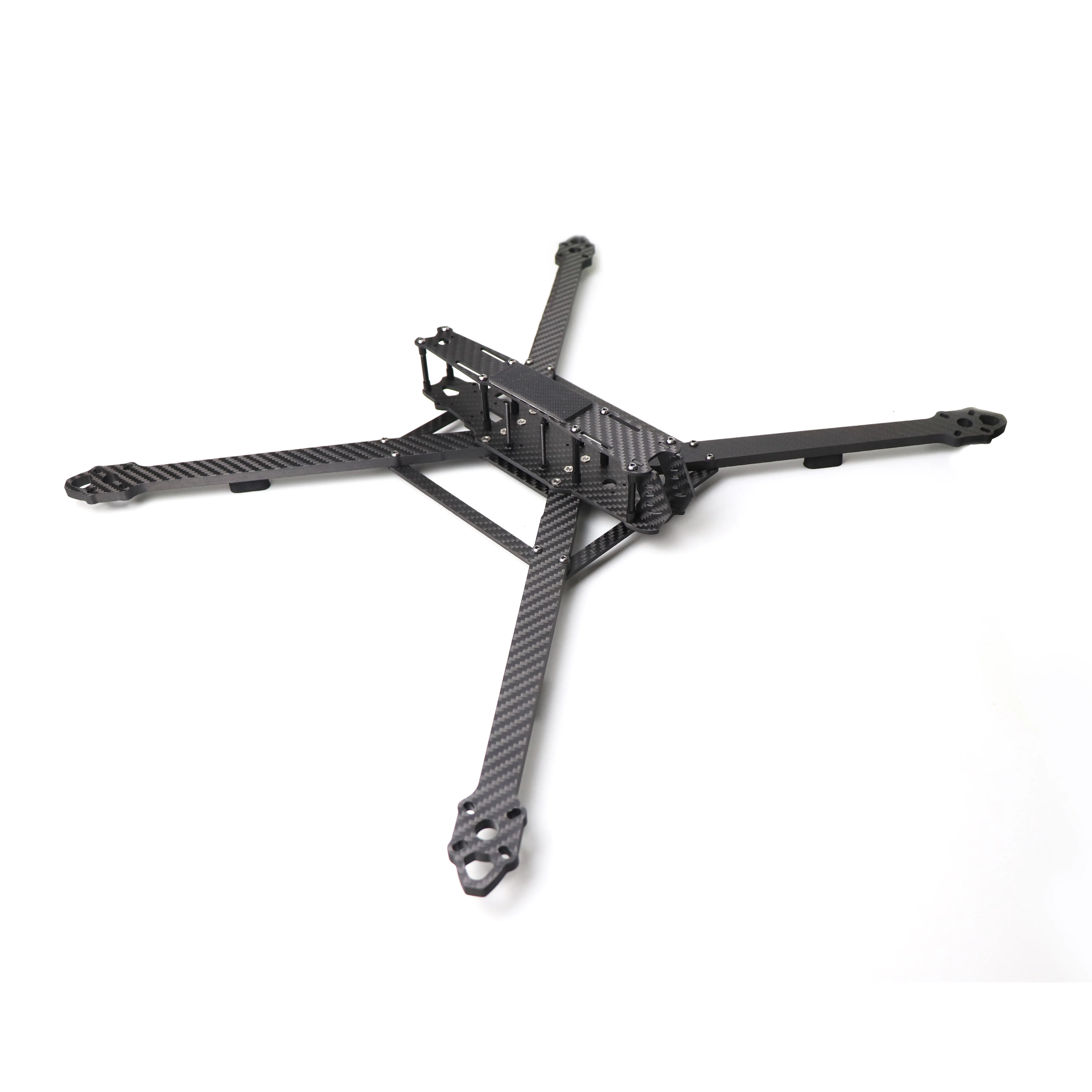

mechfpv Mark4 V5B 13" 539mm Long Range FPV Frame (7mm Arms)

Description:

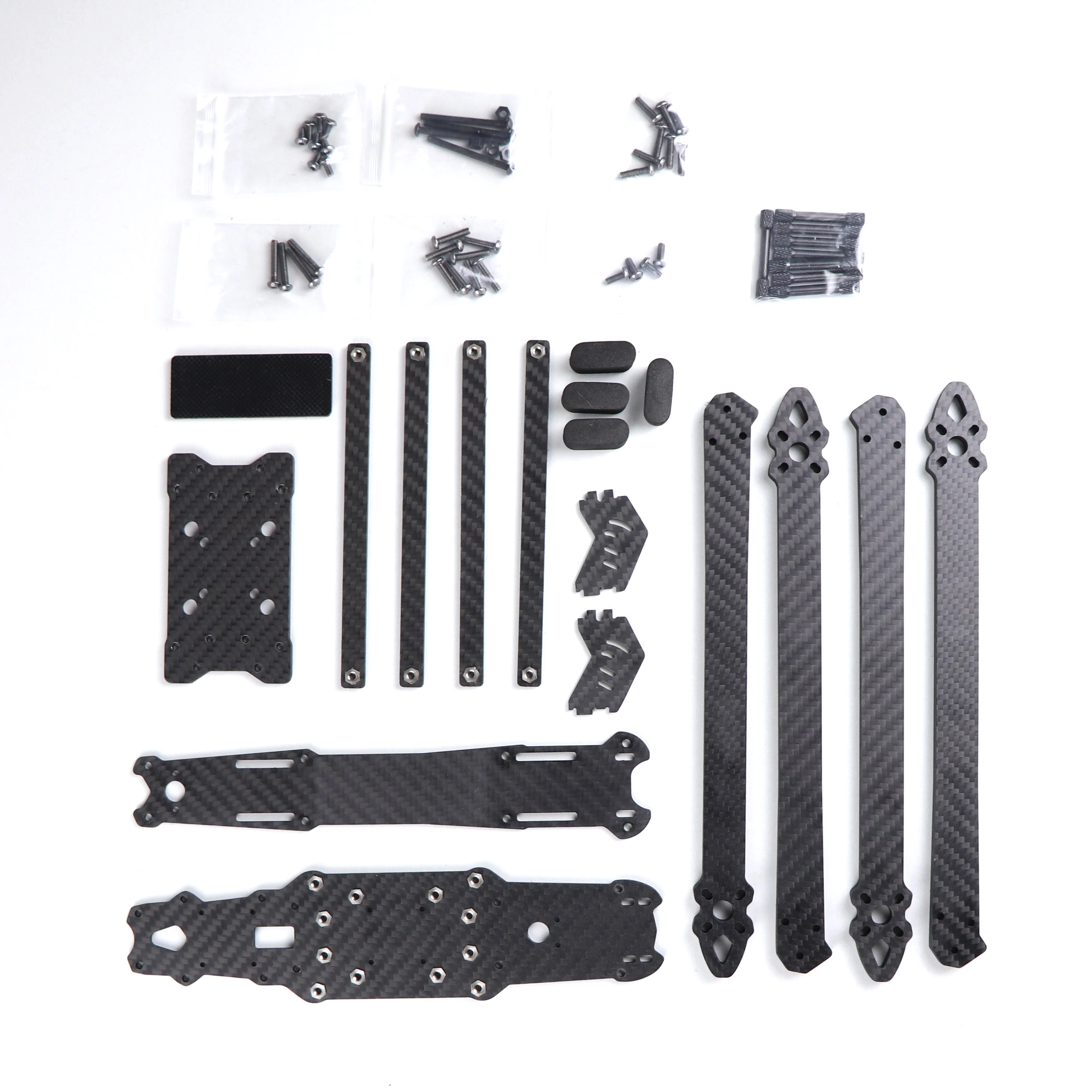

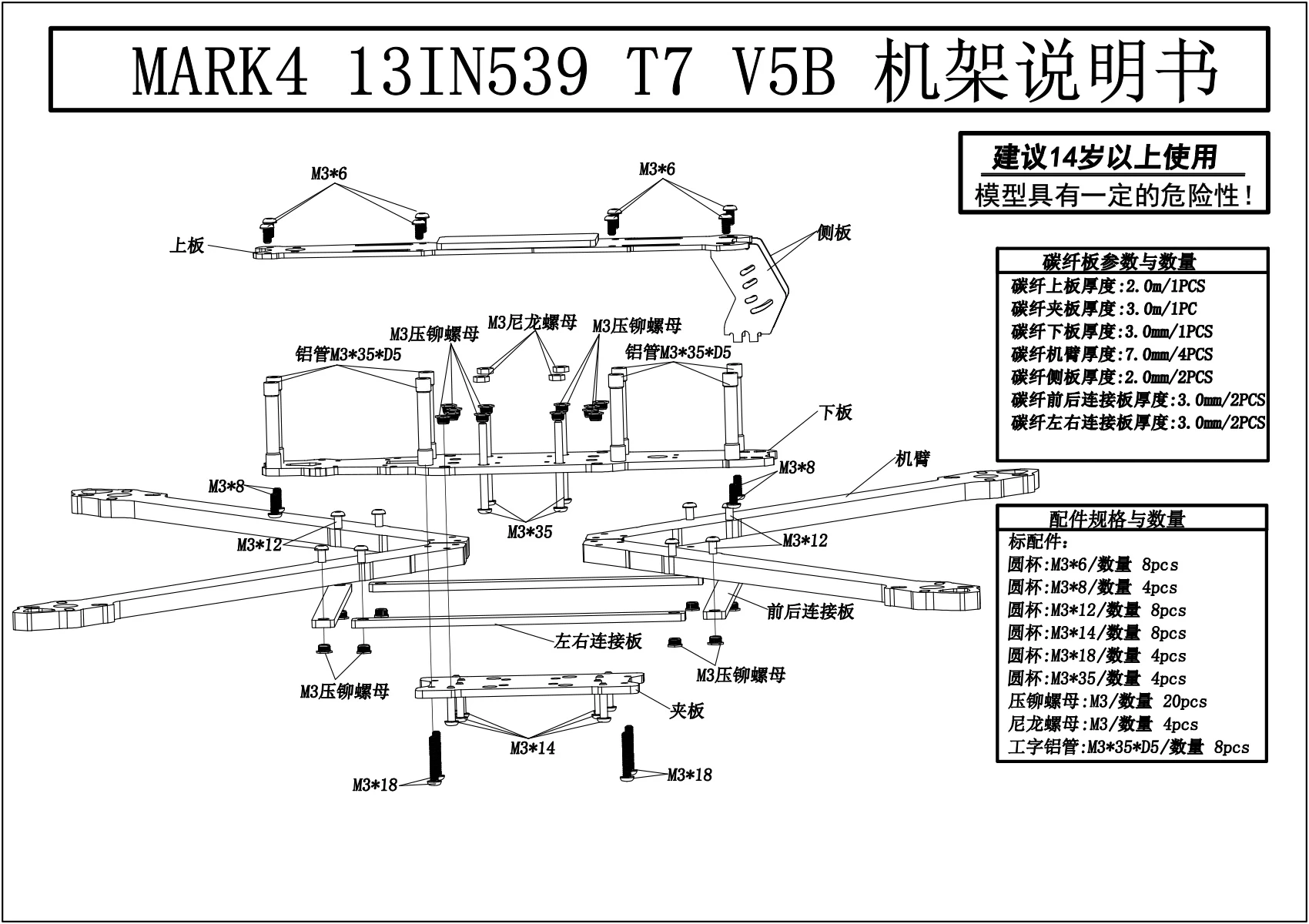

Mark4 V5B 13-Inch Long Range Frame Kit (7mm Arms, 539mm)

Wheelbase: 539mm

Upper plate Thickness: 2.0mm

Bottom plate Thickness: 3.0mm

Thickness of lower fixed plate: 3.0mm

Thickness of camera side plate: 2.0mm

Front and rear connecting plate:3.0mm

Left and right connecting plate:: 3.0mm

Arm Thickness: 7.0mm

Camera mounting spacing:19MM

Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM

VTX mounting hole spacing: 20*20MM / 30.5*30.5MM

Motor mounting hole spacing: 21*21MM

Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)

Can be adapted to 13inch paddle, 4312 , A4320motor
