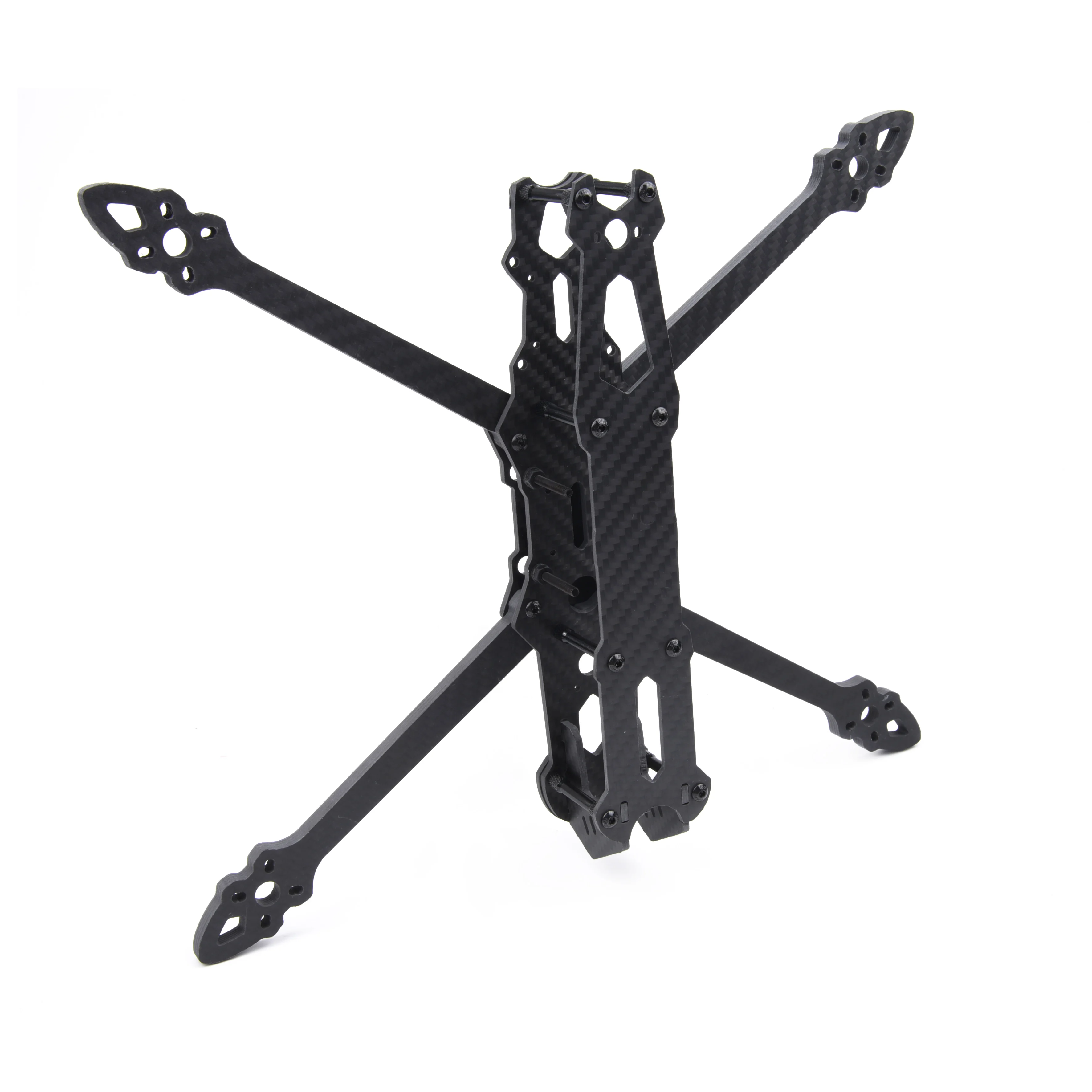

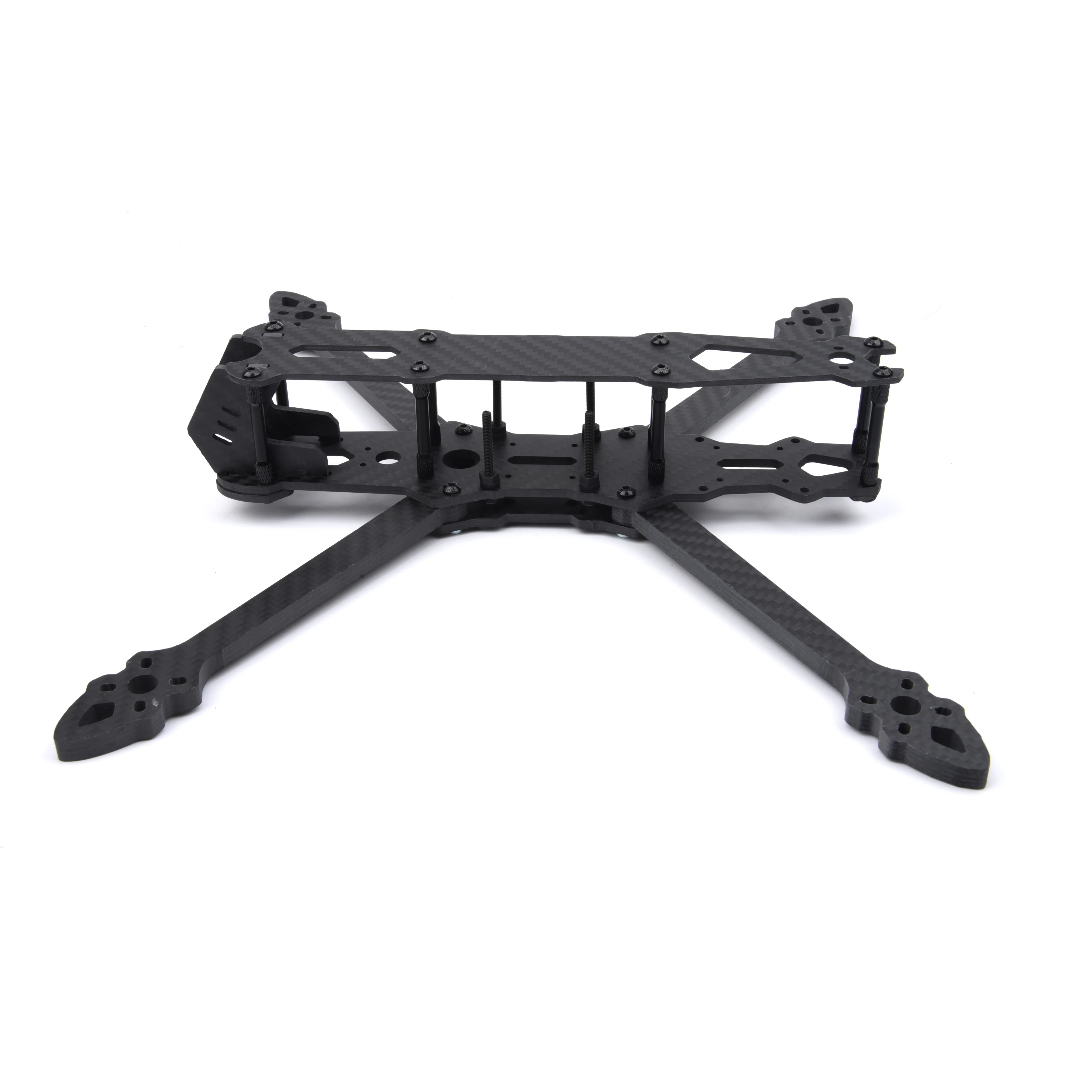

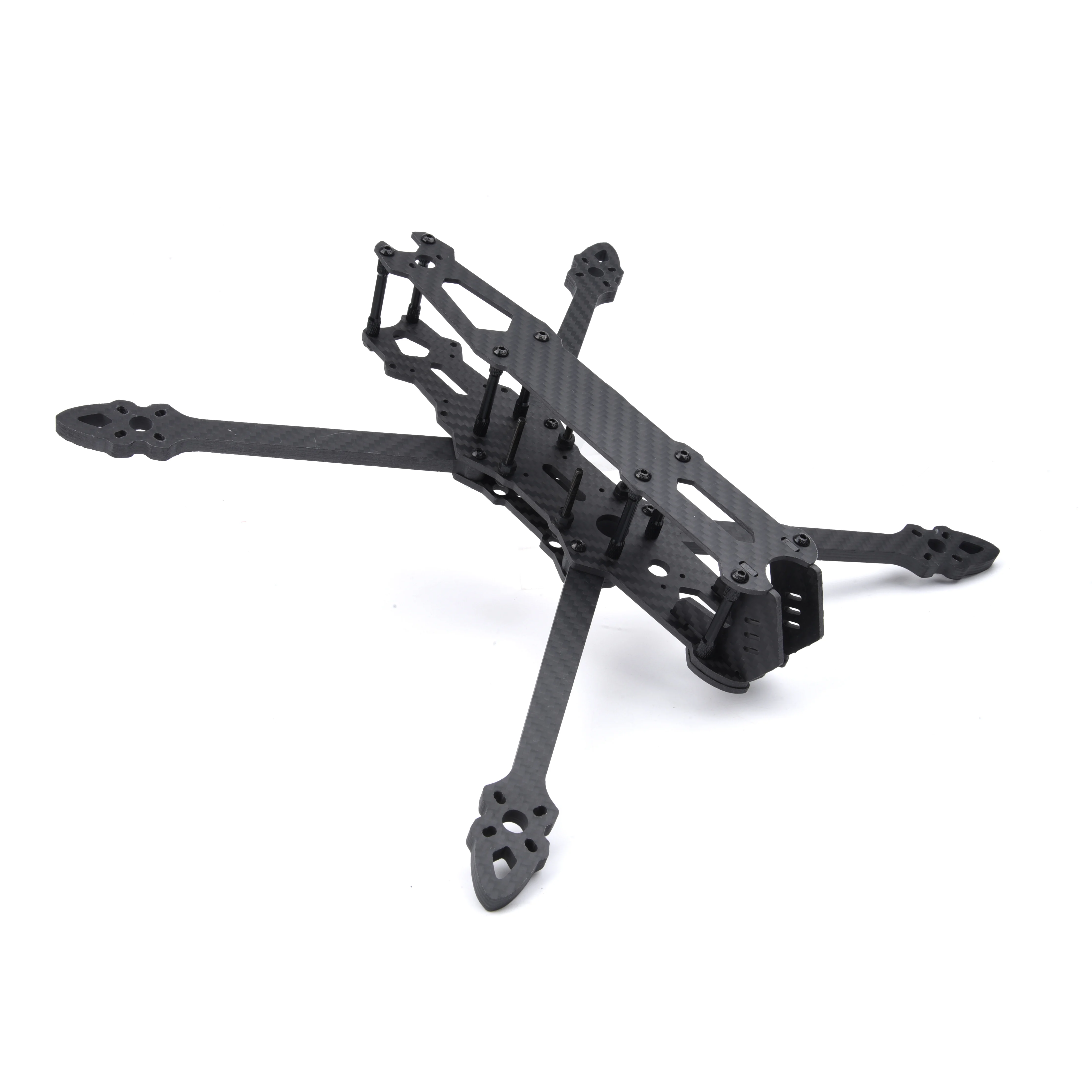

MARK4 V2_7IN 295 Carbon Fiber Frame Kit

Mark4 V2 7Inch 295mm Carbon Fiber Frame

Parameters:

Frame structure: X-Type

Wheelbase: 295mm

Size: 193.75mm * 223.06mm

Bottom plate thickness: 3.0mm

Medium plate thickness: 3.0mm

Upper plate thickness: 2.0mm

Arm thickness: 6.0mm

Camera side plate thickness: 2.5mm

Camera installation hole spacing: 19mm

Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm

Flight control installation hole spacing: 20*20mm & 30.5*30.5mm

Inner space height: 35mm

Motor installation hole position: 16*16mm & 19*19mm
