mechfpv XT60H Connectors with Sheath (Upgraded XT60)

Description:

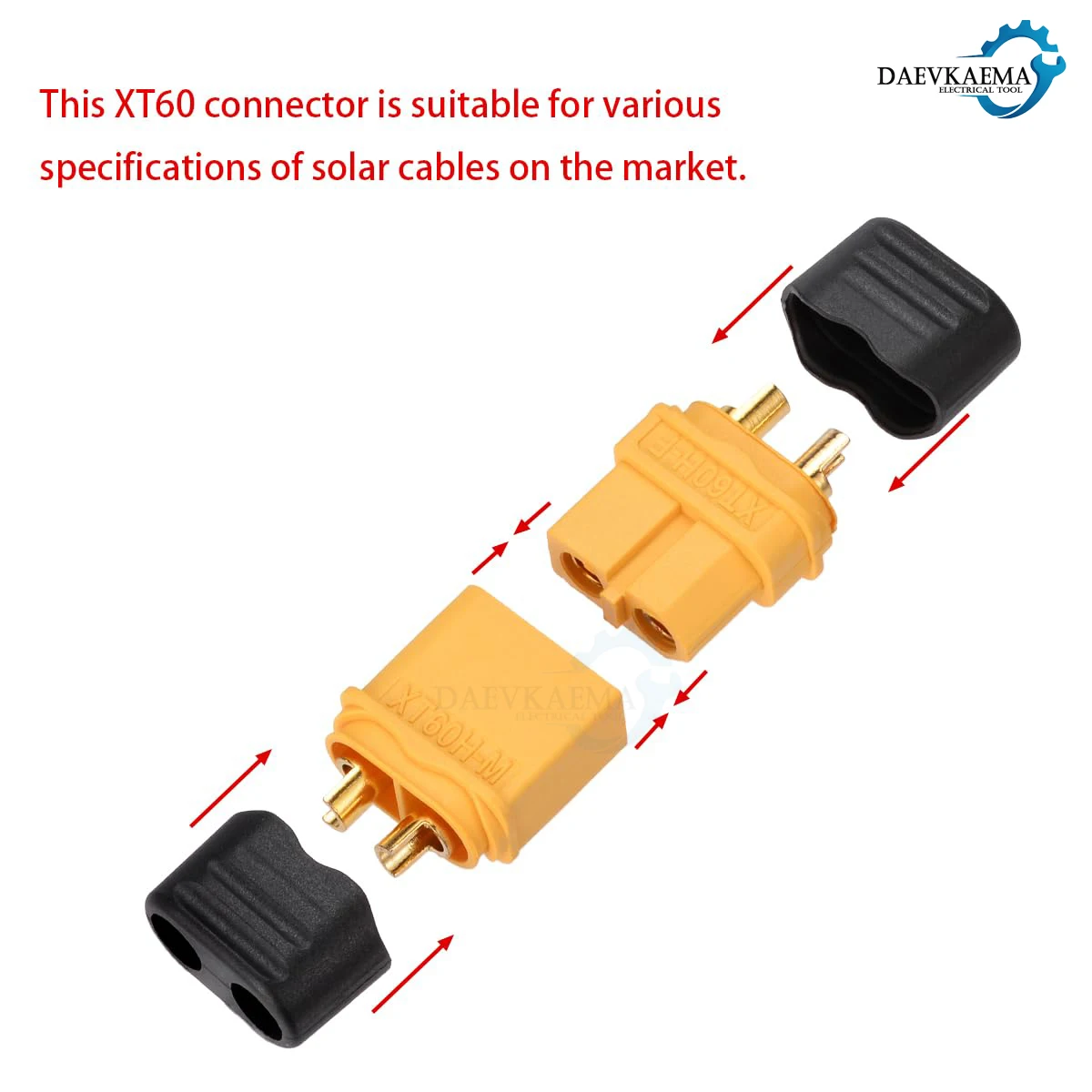

XT60H Connectors with Snap-on Covers (Male + Female Pair)

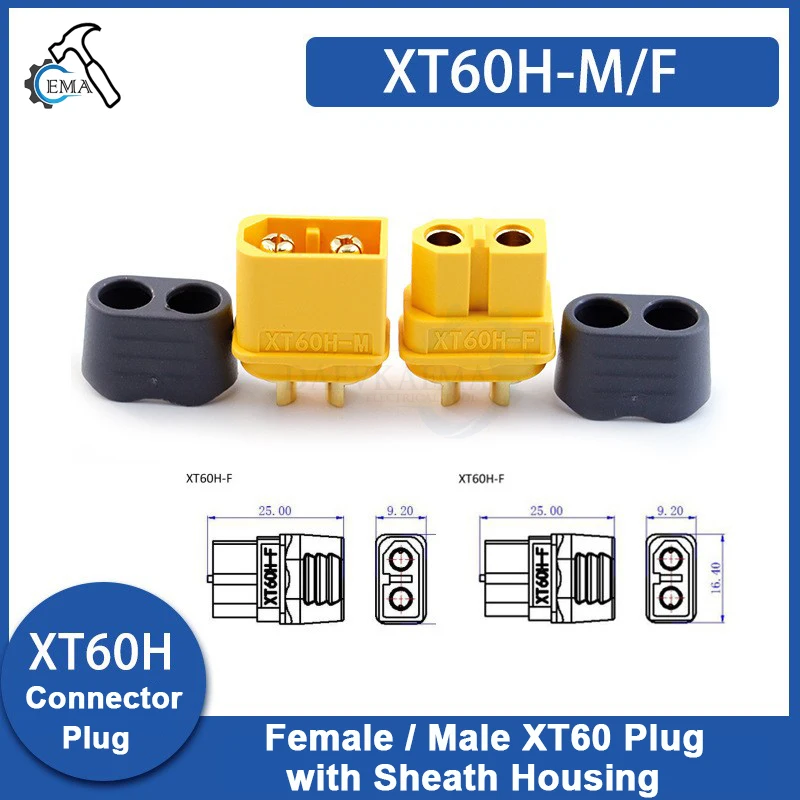

XT-60H Connector With Sheath Housing Male&Female

[High quality materials] This XT60 Female and Male Connectors use high quality PVC nylon material, Half open end, easier for welding.

[Easy Solder] The solder terminals are long enough for soldering using a low temp soldering iron. Tip: while soldering having male-female connections in place to keep connectors aligned.

[Easy to Use] XT60 connectors fit most solar panels and battery packs,solar panels and power stations can be easily connected.

[Wide Application] Compatible with 12AWG--16AWG photovoltaic cables, suitable for various specifications of solar cables on the market.

Specifications

* Product name: XT60H

* Body material: gold-plated copper

* Lining material: nylon/pa

* Internal resistance: 0.8mω

* Maximum current/voltage: 60a/100v

* Temperature resistance range: -20°C~120°C

* Recommended use: 1000 times

* Recommended cable gauge grids: 12awg

* Recommended welding specifications: 480°C / 4 seconds
