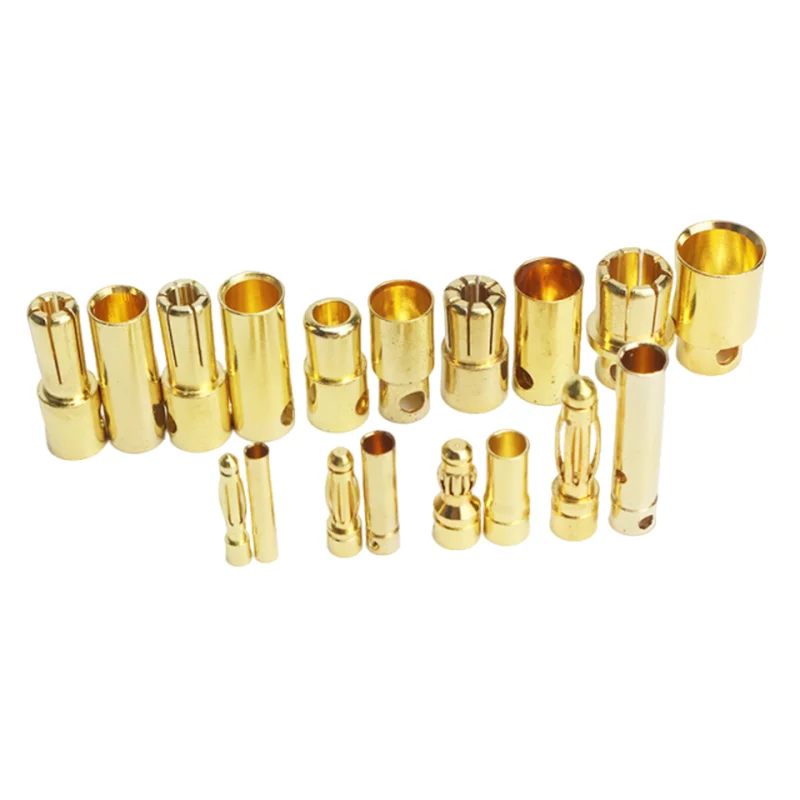

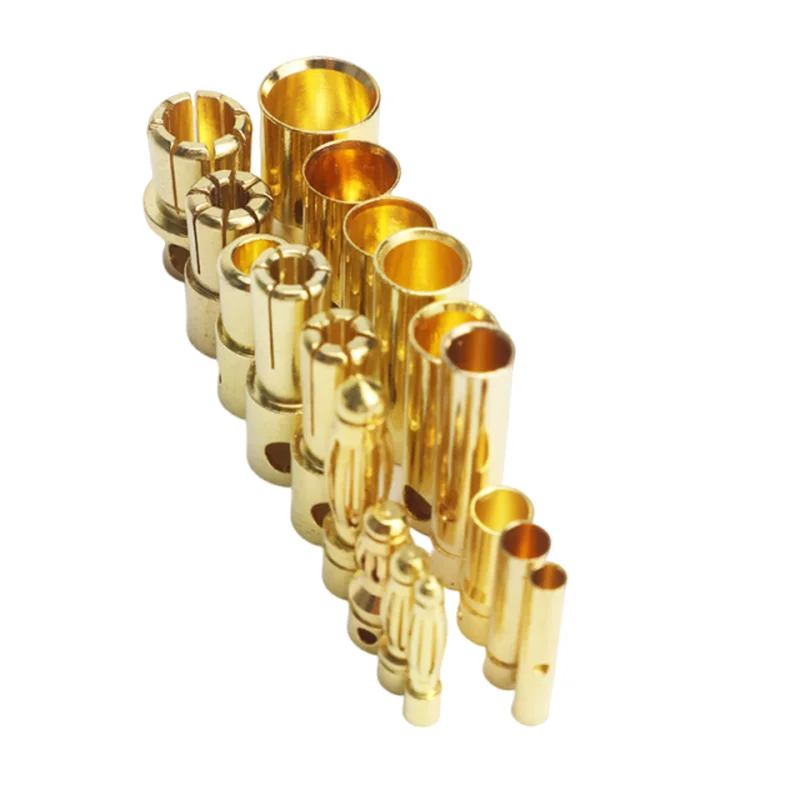

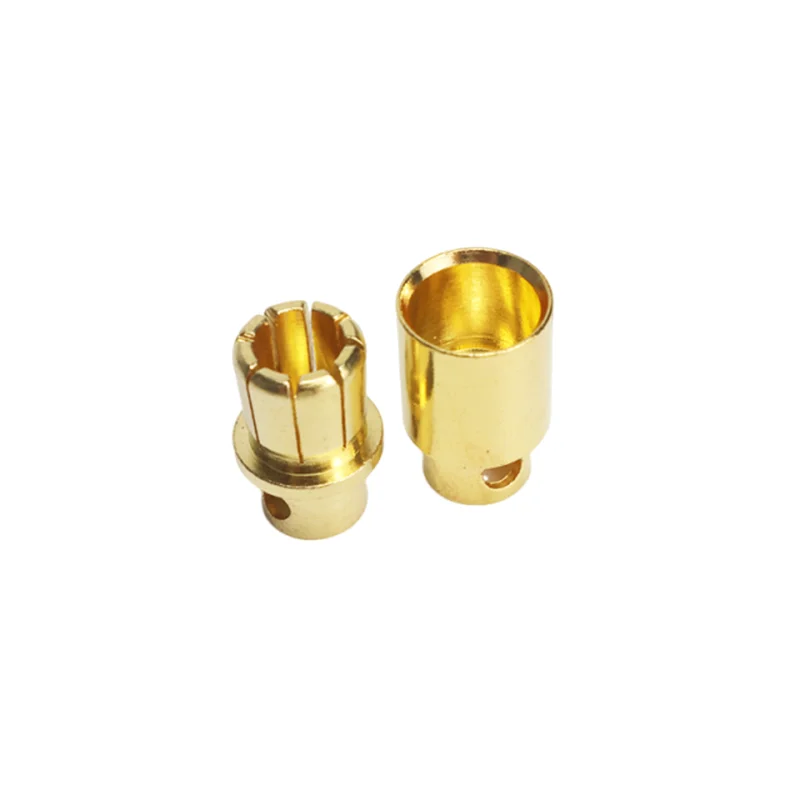

mechfpv Gold-Plated RC Banana Bullet Plugs (2mm to 8mm Range)

Description:

Gold-Plated Bullet Connectors (2.0mm - 8.0mm Options)

• Hook up RC Battery to Electronic
• Diameter: 2.0 3.0 3.5 4.0 5.0 5.5 6.0 6.5 8.0MM
• gold connectors Male x10
• gold connectors Female x10

Plug maximum withstand current:

2.0mm banana plug: maximum withstand current of 30A

3.0mm banana plug: maximum withstand current 35A

3.5mm banana plug: maximum withstand current 45A

4.0mm banana plug: maximum withstand current 55A

5.0mm banana plug: maximum withstand current 80A

5.5mm banana plug: maximum withstand current 100A

6.0mm banana plug: maximum withstand current 120A

8.0mm banana plug: maximum withstand current of 130A

All parameters refer to the female head of the banana head and the pore size of the inner pores. For example: 2.0mm banana head refers to the female head with an aperture of 2.0mm (normally negative tolerance)
