mechfpv FS-A8S V2 Mini Receiver for FS-i6/i6X (AFHDS 2A)

Description:

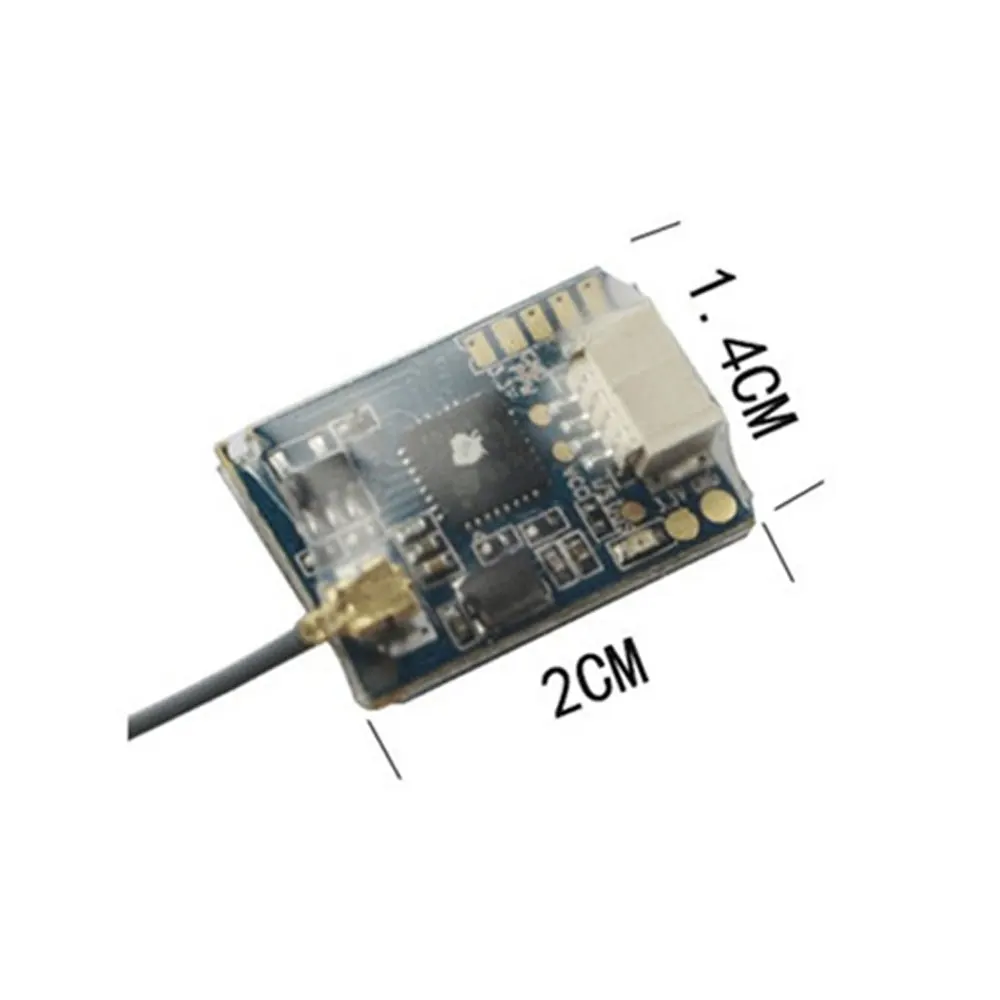

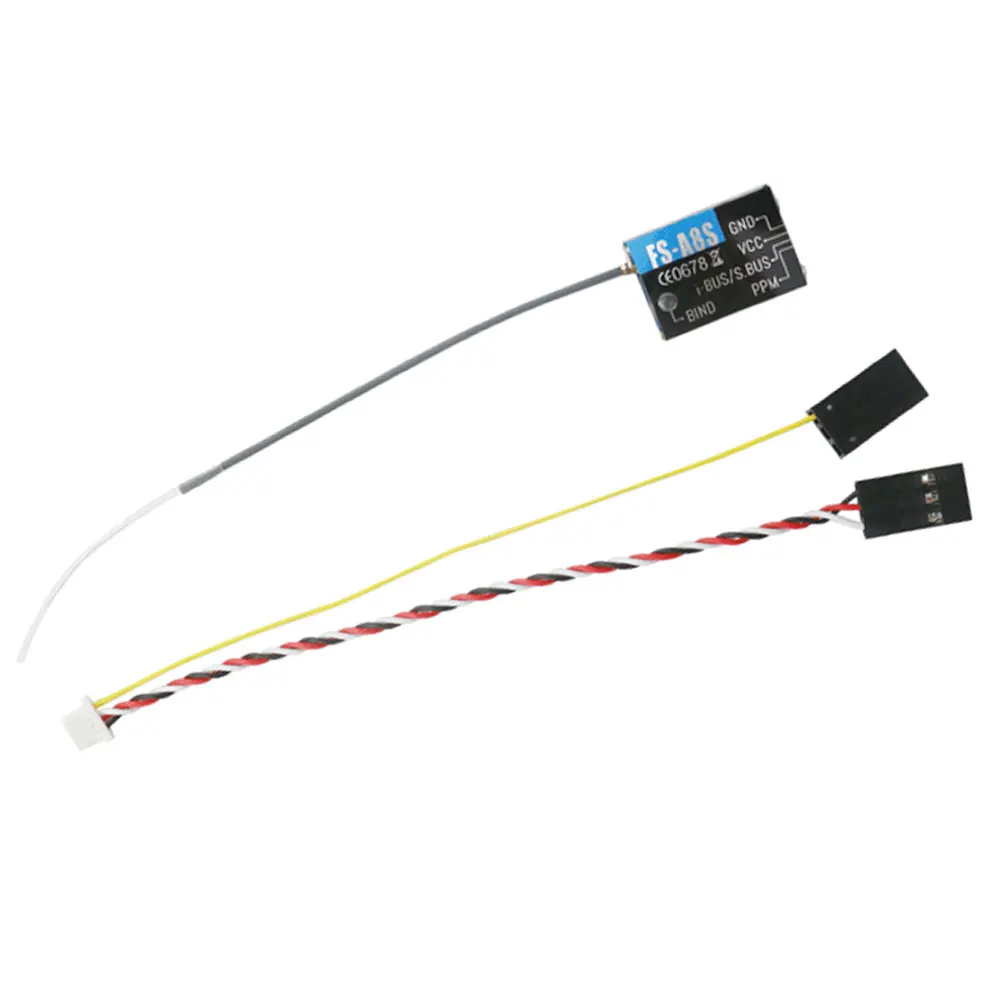

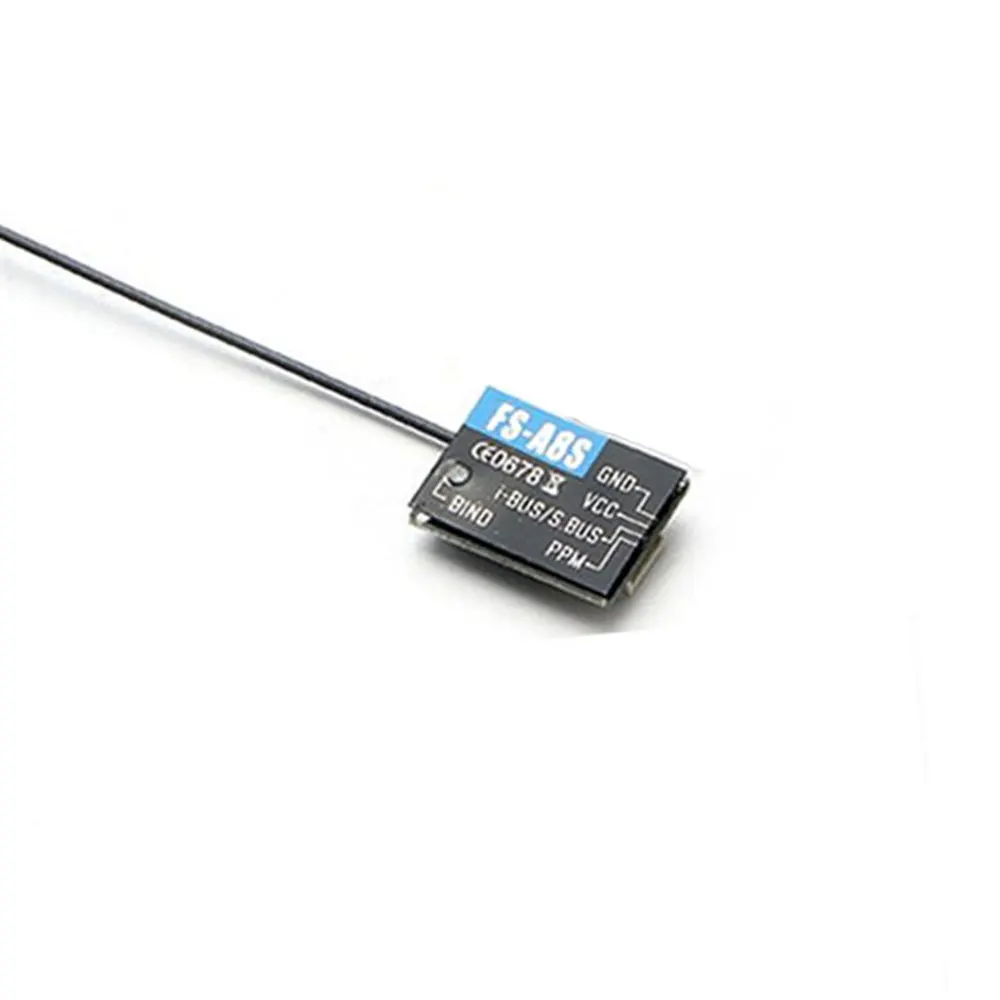

Flysky FS-A8S 8CH Mini Receiver (PPM / i-BUS Output)

The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft.  It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.

Specification:

Brand Name:Flysky

Item Name:FS-A8S Receiver

Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

Band width: 500KHz

Band number: 135

RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A

Modulation type: GFSK

DSC port: PPM/i-BUS/S.  BUS

Transfer method: FHSS

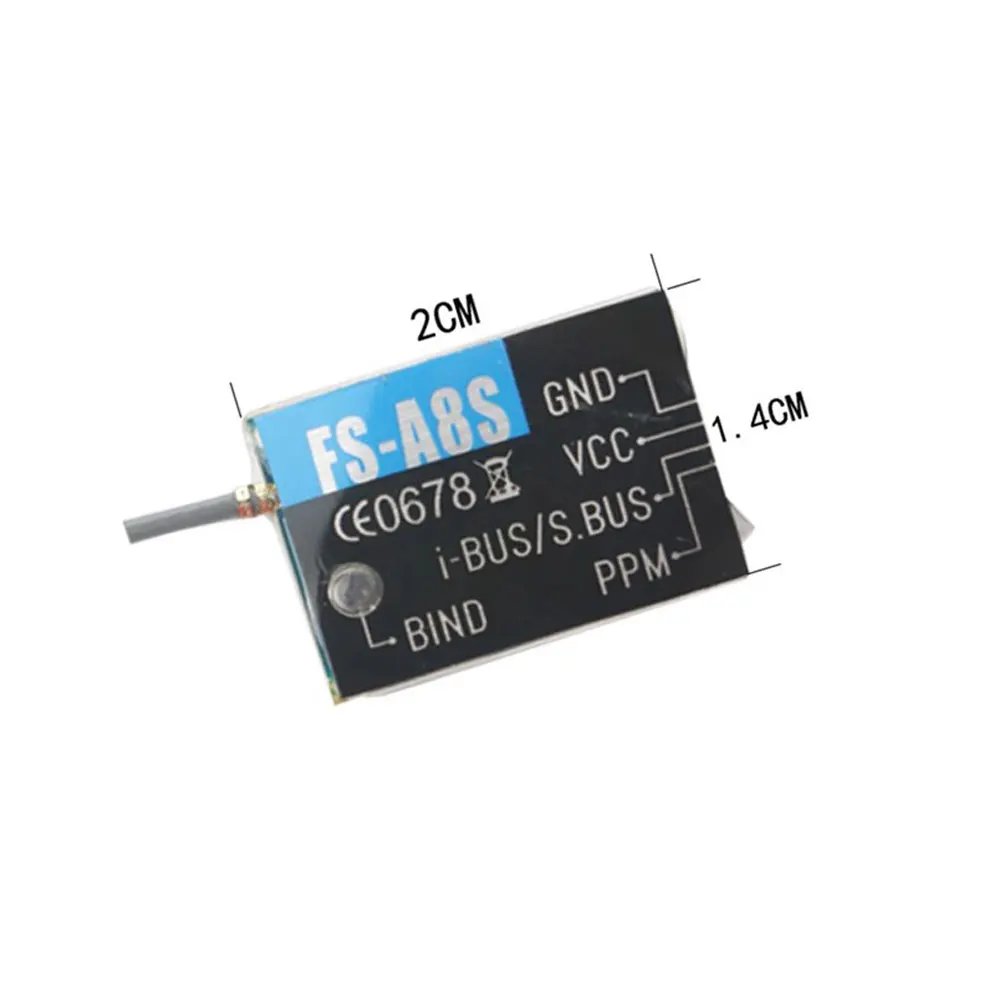

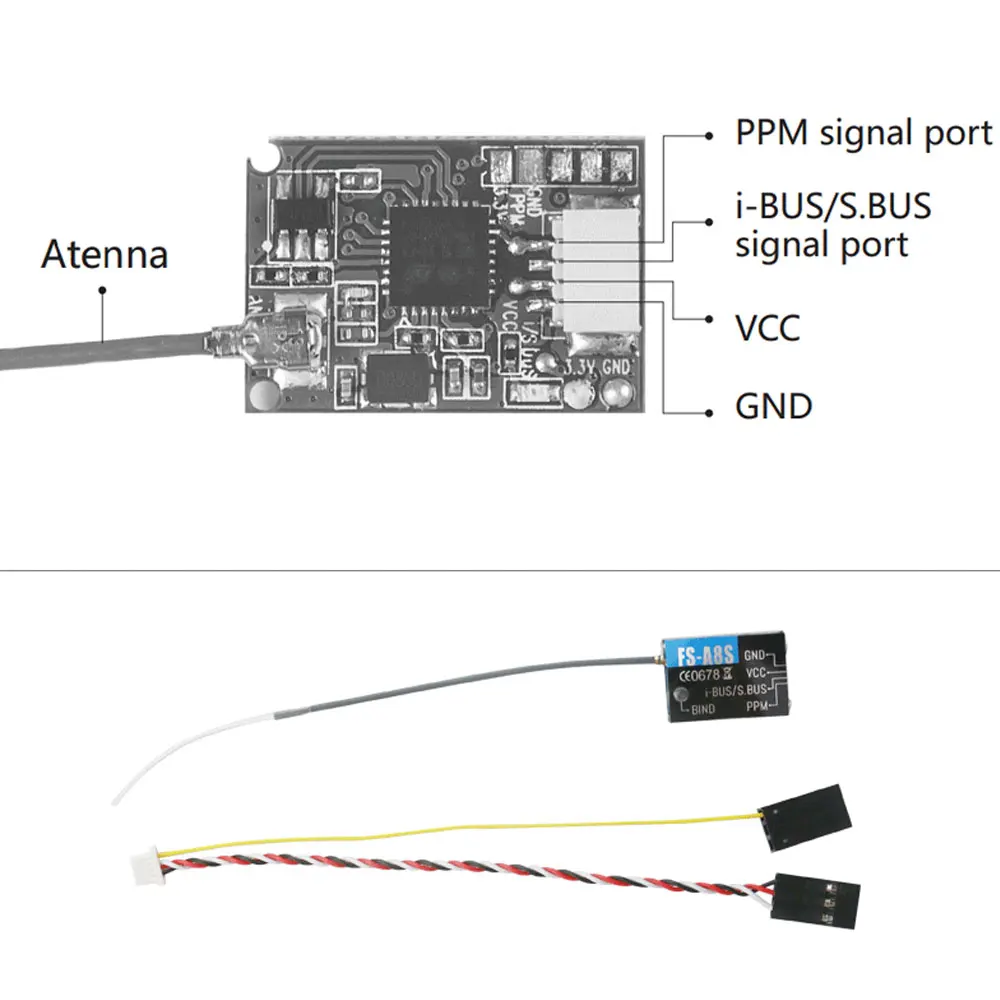

Data output: 1.5mm*3 Pin PPM/i-BUS/S.  BUS

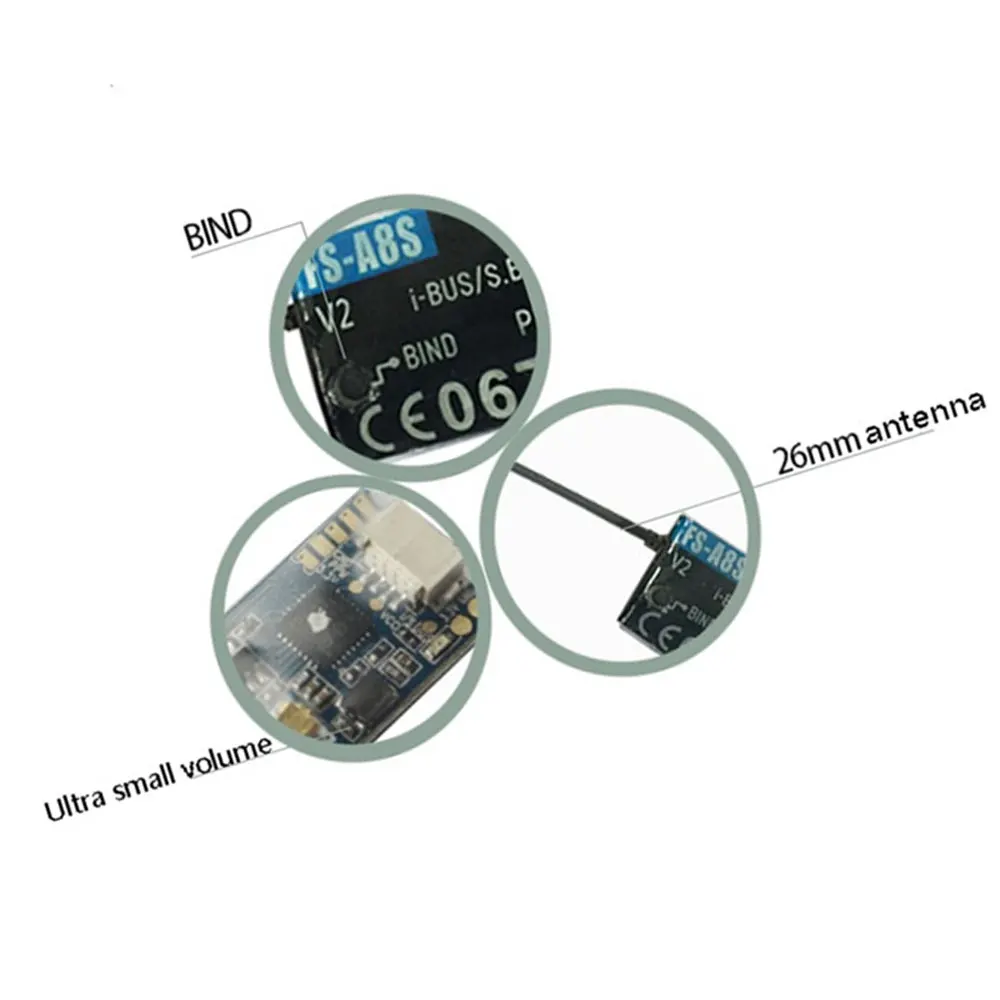

Antenna length: 26mm (Not including brass contacts)

Input power supply: 4.0-8.4V

Display method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA
