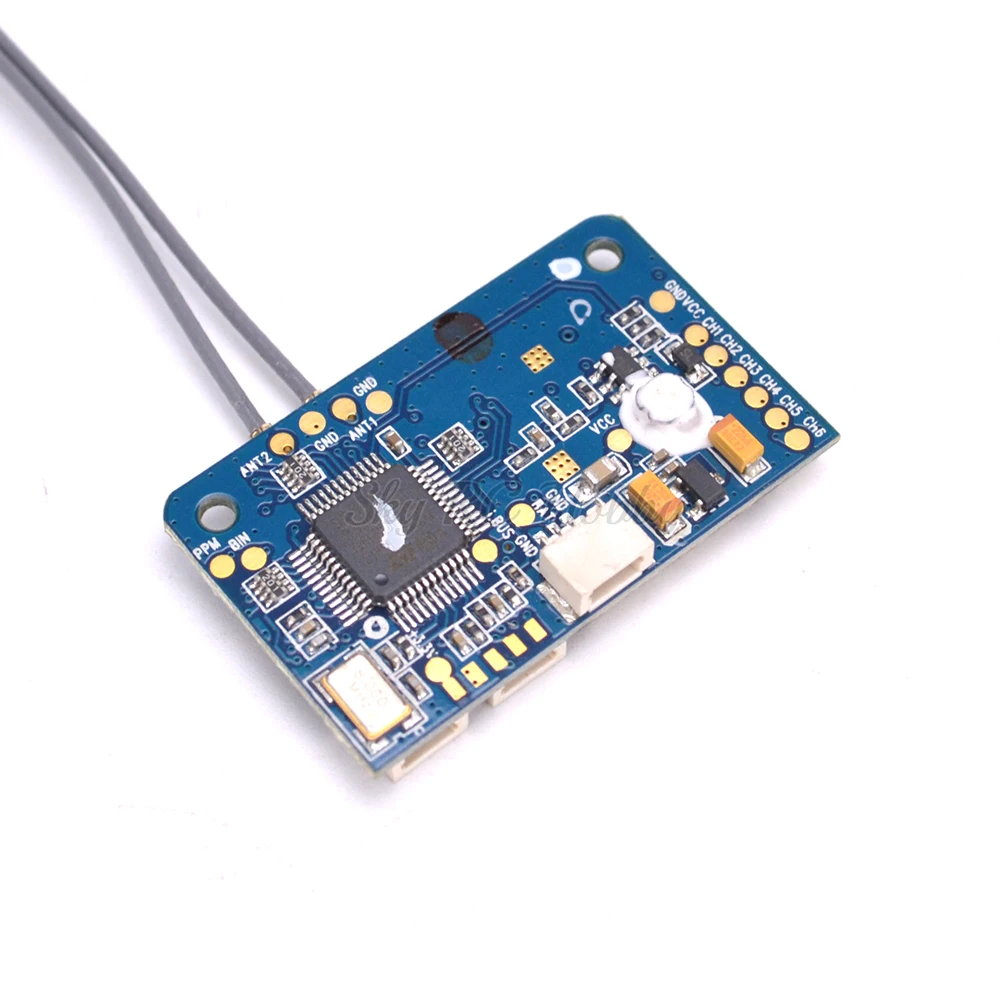

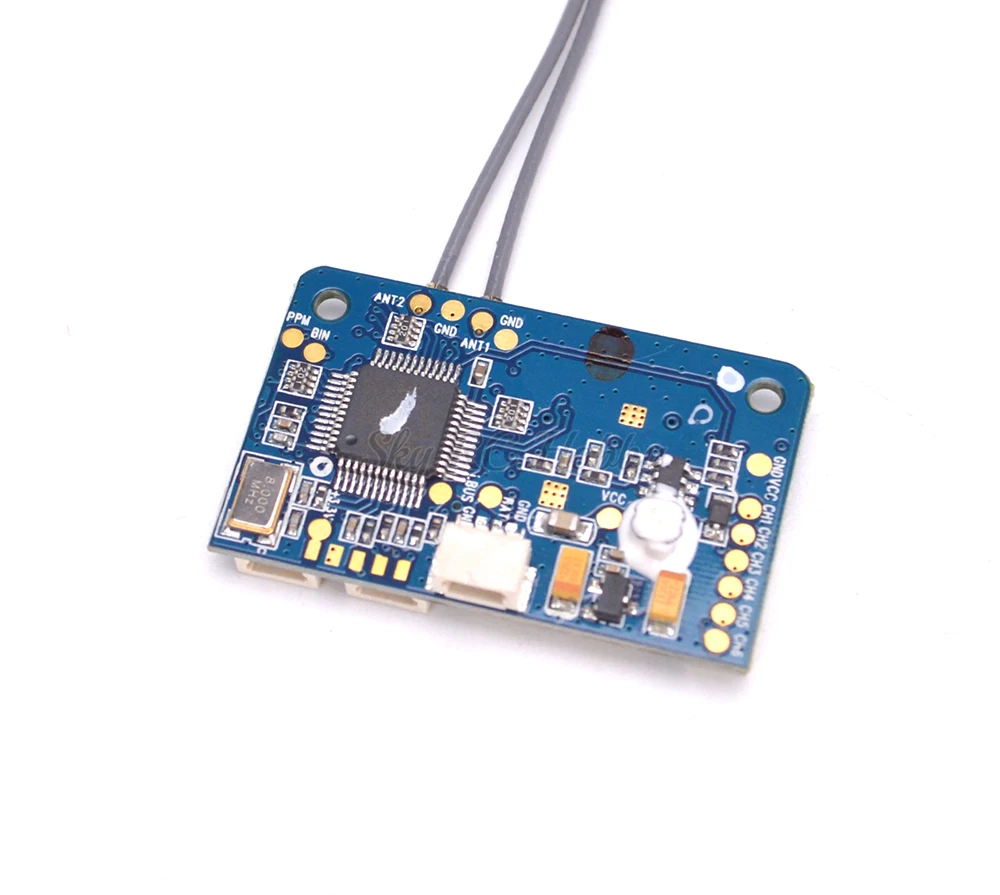

mechfpv Original Flysky FS-X6B Receiver (PWM/PPM/i-BUS)

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It's compact, easy to install and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

Description:

Brand Name: Flysky FS-X6B 6CH/18CH Receiver (AFHDS 2A) Telemetry

Item: X6B i-BUS 2.4GHz 6CH Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Totor

RF Range: 2.408-2.475 GHz

Brand Wigth: 500KHz

Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A

Modulation Type: GFSK

Stick resolution: 1024

Low voltage alarm: Yes

DSC port: PPM/PWM/i-BUS

Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V

On-line Update: Yes(Wireless)

Range: >300m

i-BUS Port: Yes

Certificate: CE0678, FCC ID: N4ZX6B00

Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10, FS-i8, FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X.

Package Included:

1 x Flysky X6B 2.4GHz 6CH Receiver
