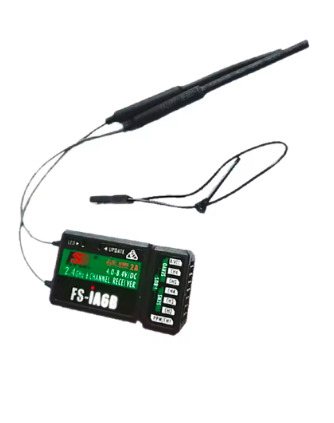

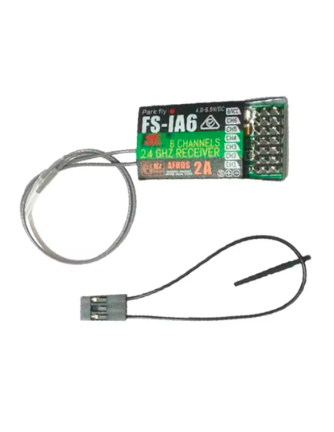

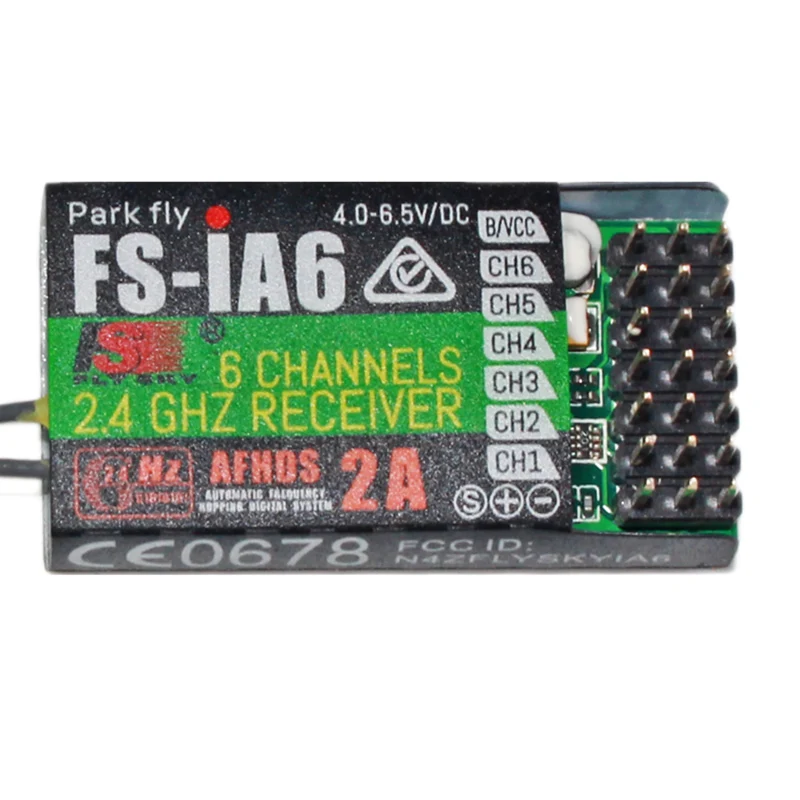

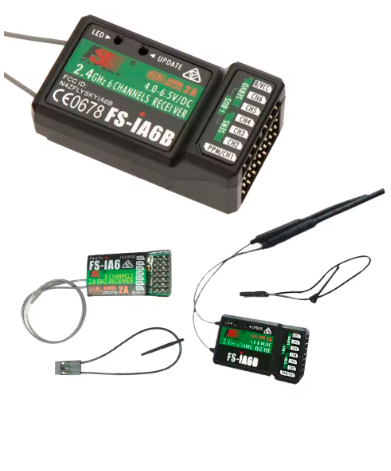

mechfpv Flysky FS-iA6 / FS-iA6B Receiver for FS-i6 Transmitter

Product Description:

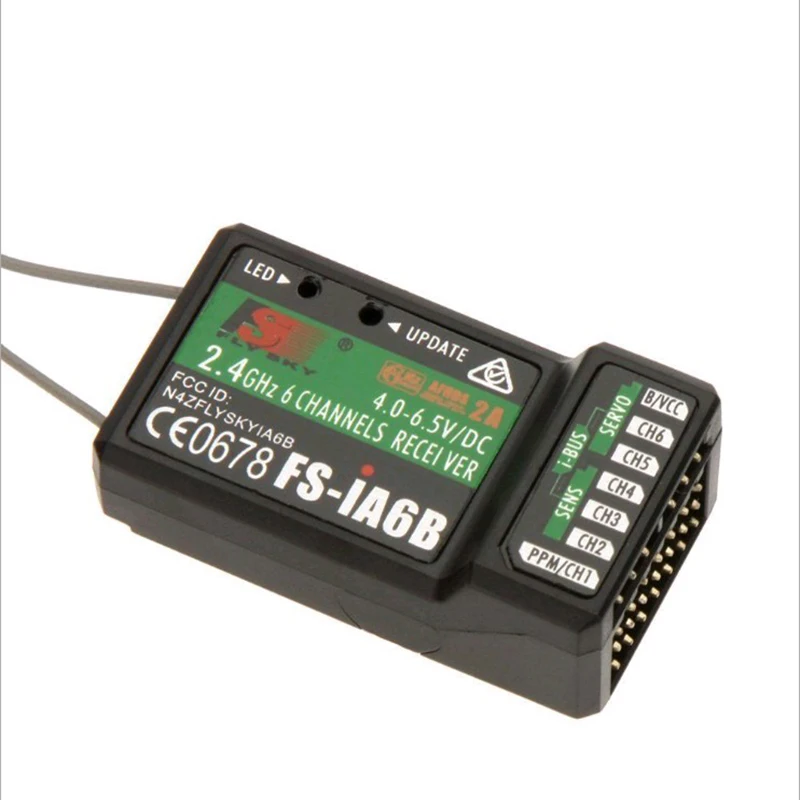

Flysky 2.4G 6CH FS-iA6B Receiver PPM Output With iBus Port

1. This FlySky FS-iA6B 6ch Receiver works great with the FlySky FS-i6 Controller.

2. This compact 6 channel receiver is great for any model using up to 6 channels and, with a range exceeding 500 meters, it can be considered to be full range for all but the most demanding of applications.

3. The receiver has end-on connectors to enable a neat installation in tight spaces. Built in connectors allow you to use any of the optional FlySky telemetry sensors.

4. Dual antennas give the FS-iA6B excellent reception and interference rejection capability.

5. With easy binding, compact dimensions, optional telemetry and dual antennas!

Description:

Brand Name: Flysky

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

Band Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Package Included:

1xFlysky FS-iA6B receiver

1x Bind plug
