mechfpv Storm32 3-Axis Brushless Gimbal Stabilizer (RTF) for GoPro / Xiaomi / SJ4000

RTF 3-Axis Brushless Gimbal w/ Storm32 Controller (for GoPro 3/4 & Action Cams)

Description:

Brushless gimbal

Features:

Color: black / silver

Axis: 3 axis gyro

Flight controller:  Storm32

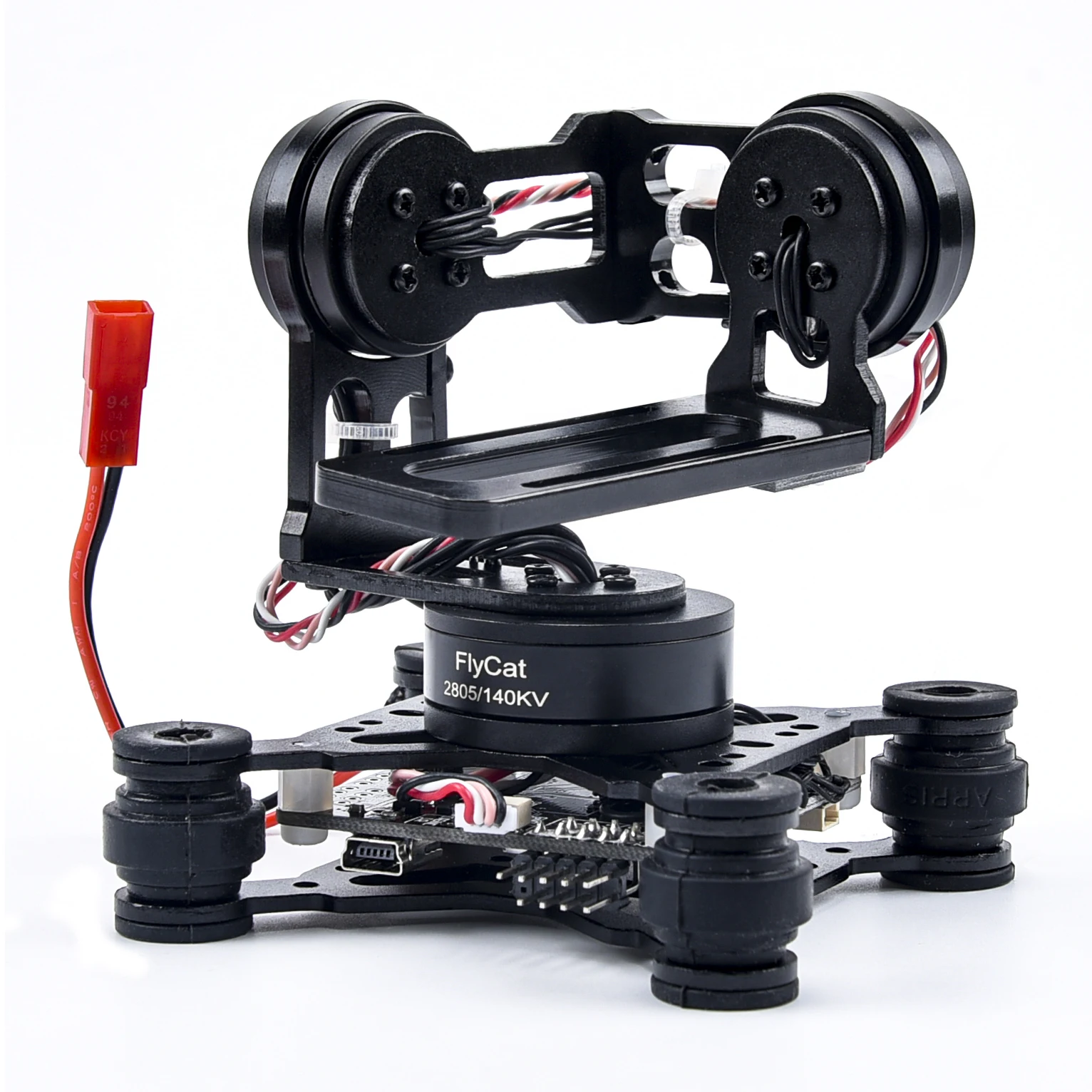

Motor : 2 pcs 2204 260kv & 1 pc 2805 140kv

Battery plug: JST

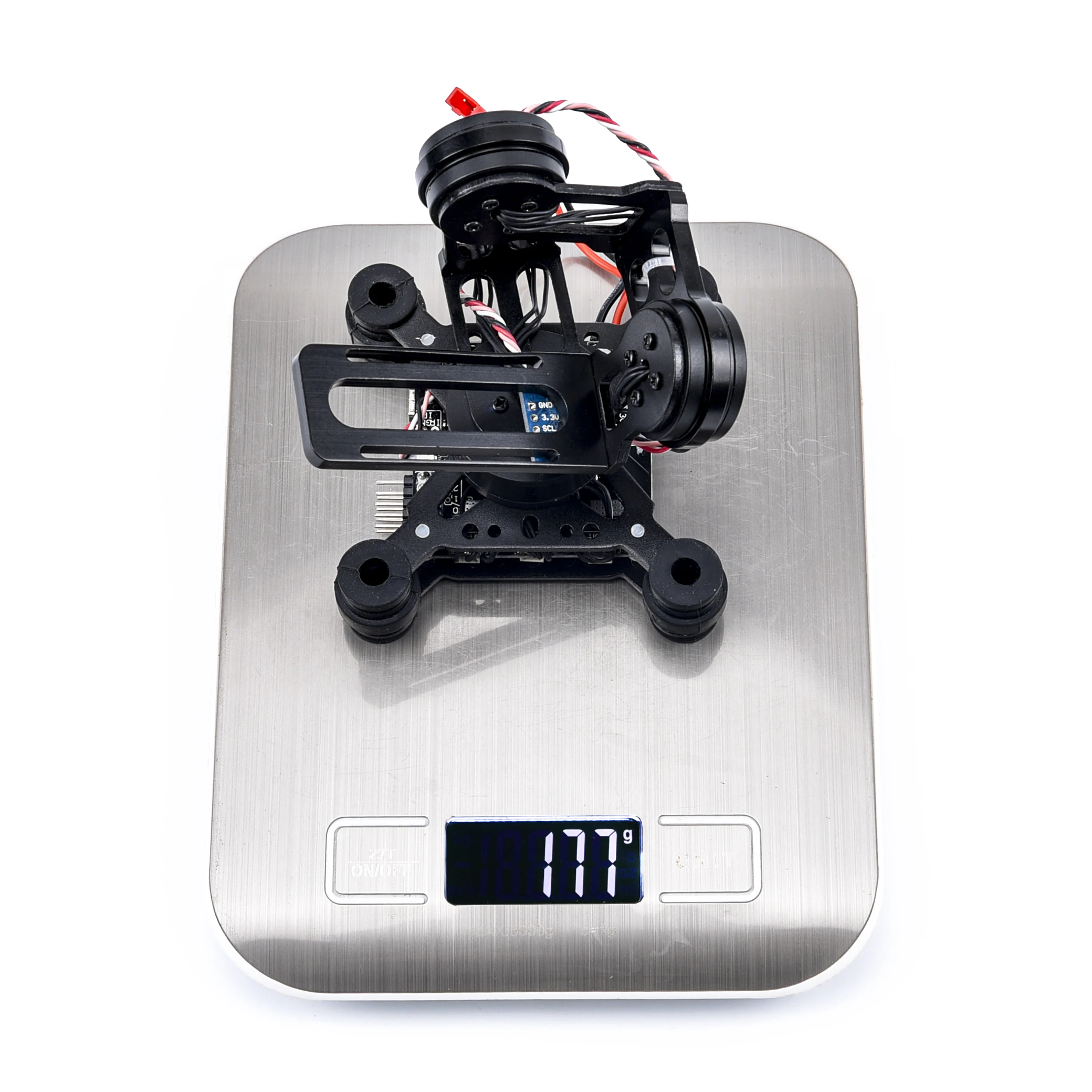

Weight: about 177.5±2 g

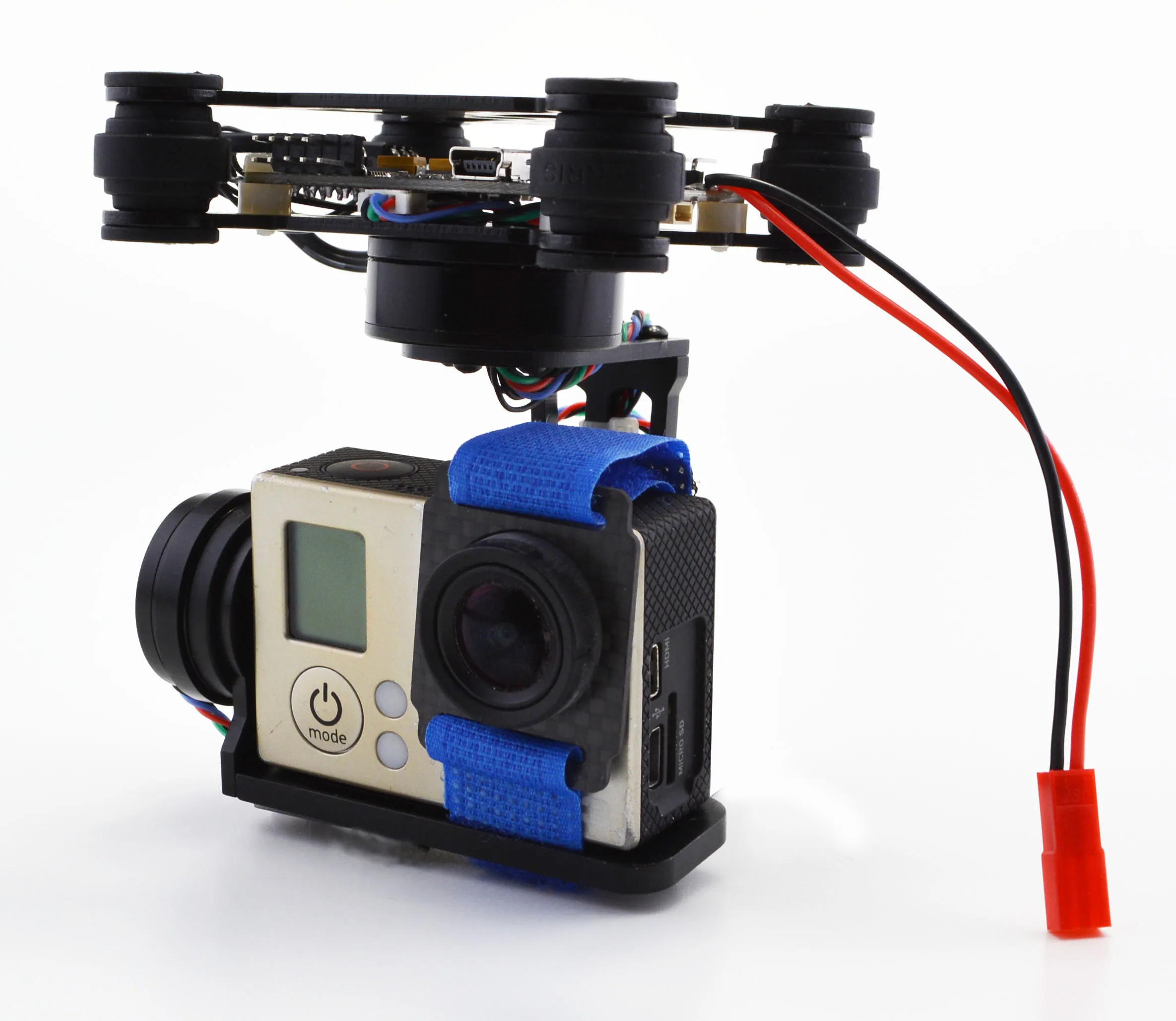

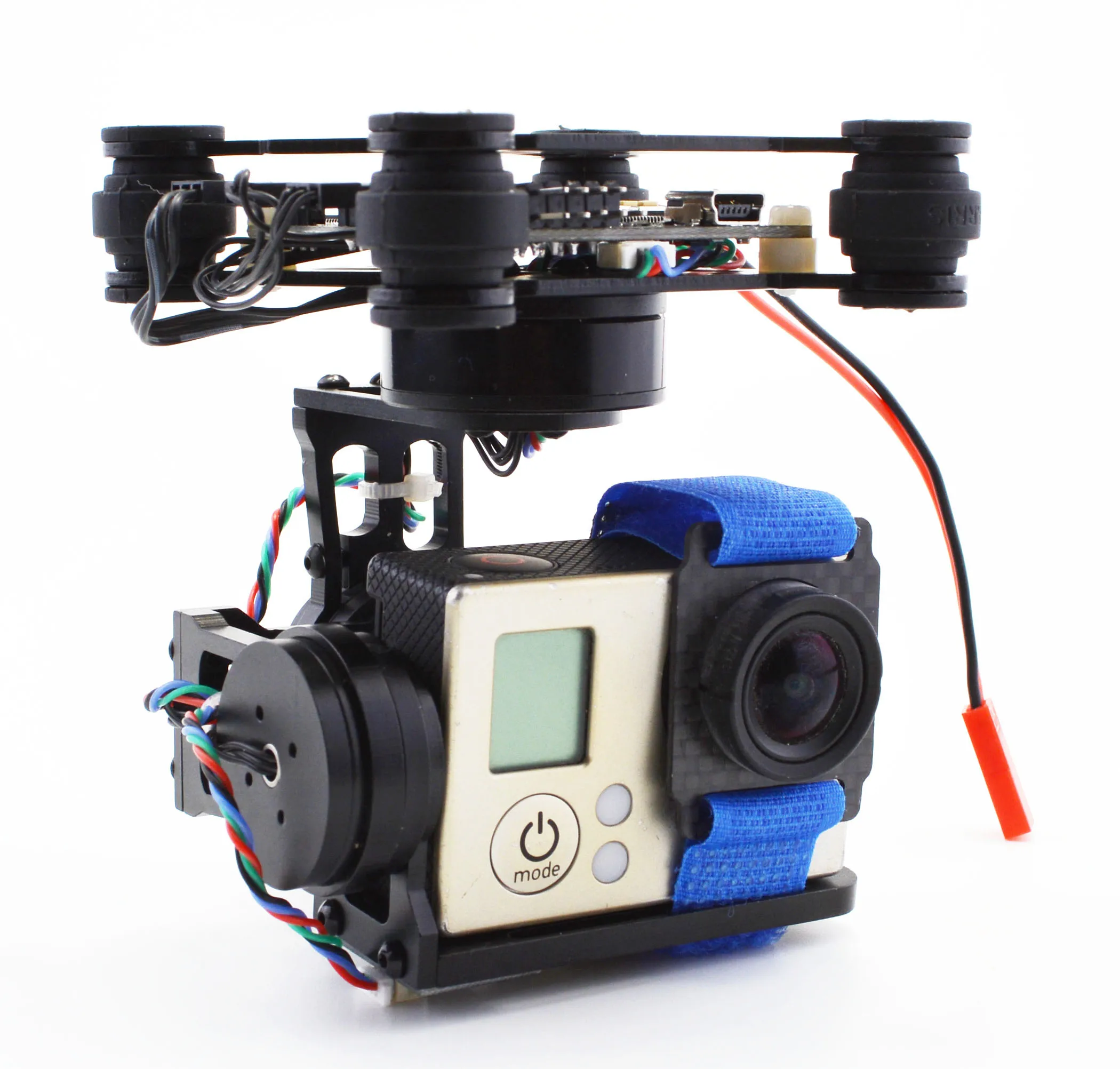

Compatible camera: Gopro 4,3,2 ; SJ4000 , Xiaomi xiaoyi camera( not included)

compatiable frame : DJI Phantom 1 2 / Walkera X350

Strom32 Gimbal Controller

 Features:

board color: blue

motor drivers in DFN packages: yes

on-board MPU: yes

on-board bluetooth module: no

I2C plug type: picoblade (1.25mm JST)

I2C#2 plug type: picoblade (1.25mm JST)

pin headers: no

Included accessories:

MPU module

cable with connectors for MPU module

Points to note:

Firmware : 051

The pins on connector I2C#2 are reversed as with respect to connector I2C

ALL boards HAVE the diode required for running a bluetooth module!!!

SPECIFICATIONS

supply voltage:3S battery

motor current: max. 1.5 A per motor

Comment: This is not yet fully exploited, motors with resistances of 12 Ohm , motors with 10 Ohm may be handled with care (see here andhere).

board dimensions: 50 mm x 50 mm, 45 mm bolt to bolt, holes Ø3 mm

Warm notice:

1. Recommended power supply is 12V(3s battery);

2, Camera must be fixed in the head (without any loosening);

3. Adjust the Gopro camera to the left or right,so that the camera is at Horizontal level;

4. Before camera fixed in the gimbal , please do not push " on " button to have power.

5,The gimbal camera must be use belt tight, otherwise it will have problems. And if you do this many times, it will cause damage to the flight controller.

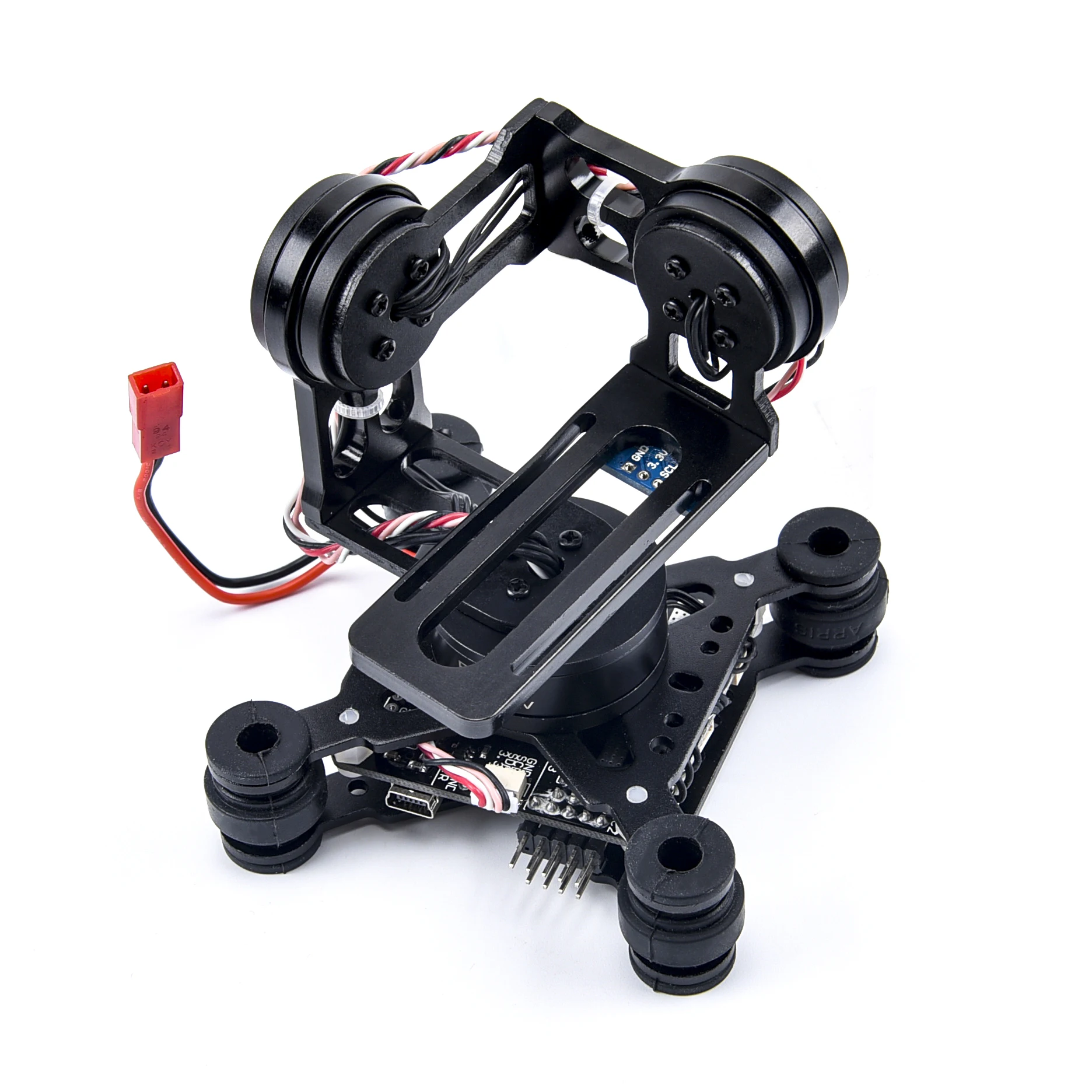

- 1 x Aluminum gimbal installed 3 motors(assembled)

- 1 x Gimbal controller

- 1 x Sensor

- 3 x servo wire(10cm)

- Wiring

( camera not included)
