What FPV Motor Sizes Do I Need for My Quad?

What is the Size of A Drone Motor?

What Do FPV Motor Sizes Mean? (Drone Motor Sizes Explained)

In FPV, motor size is not just a number—it describes the physical dimensions of the stator, which is the part that actually generates power. Understanding motor size helps you avoid mismatched builds and choose motors that truly fit your flying style, whether it’s freestyle, racing, cinematic, or long-range.

FPV Drone Motor Components

There are two major components to an FPV drone motor: rotor and stator.

• Rotor – the rotating component with the magnets arranged in a radial manner
• Stator – the portion with electromagnets that is non-rotating

If you want to learn more about the internal structure of FPV drone motors, click on the blog: What is the Structure of Drone Motor?

FPV Drone Motor Sizes Explained

A group of four numerals, such as 2207, 2306, or any other number, represents the size of a specific motor model. It indicates the rotor’s height and diameter in millimeters (mm).

• First two digits → stator diameter (in millimeters).
• Last two digits → stator height (in millimeters).

For example:

• 2207 Motor: 22 represents the stator width (or stator diameter), 07 represents the stator height, both measured in millimetres.
• 2306 Motor: 23 represents the stator width (or stator diameter), 06 represents the stator height, both measured in millimetres.

This is important because FPV motor size describes the stator, not the outer bell size. The stator is what largely determines torque, prop control, and how the motor behaves under load.

How to read FPV motor dimension drawings provided by manufacturers? Just like the mechfpv motor 2207, for example:

• length of rotor shaft: 30mm±5
• inner diameter: 16mm±05
• outer diameters: 29.31mm±2

Compatibility of FPV Motor Sizes with Other Component Sizes

In FPV drone builds, motor size, propeller size, and frame wheelbase are tightly linked. If one of them is mismatched, your quad will either underperform or risk hardware failure. The frame sets the maximum propeller clearance, the propeller determines the torque demand, and the motor stator size must provide enough thrust to spin those props efficiently.

Rule of thumb:

• Frame wheelbase decides the maximum prop size.
• Prop size dictates the required motor torque.
• Motor stator size should be chosen to balance efficiency, power, and durability for that prop/frame combo.

Pro Tip:

• Using too small a motor on a large prop (e.g., 1407 on 5″) causes overheating & ESC overload.
• Using too large a motor on a small prop (e.g., 2806.5 on 4″) wastes efficiency and feels sluggish.
• Always leave at least 10–15 mm prop tip clearance on the frame to avoid vibration and air turbulence.

Motor Size and Frame Size

• 65–85mm tinywhoop frame → 0702 – 1103
• 3″ frame → 1203 / 1404
• 4″ frame → 1404 / 1505
• 5″ frame → 2207 / 2306
• 7–8″ frame → 2507 / 2806+
• 9-10″ frame → 2810 – 3214

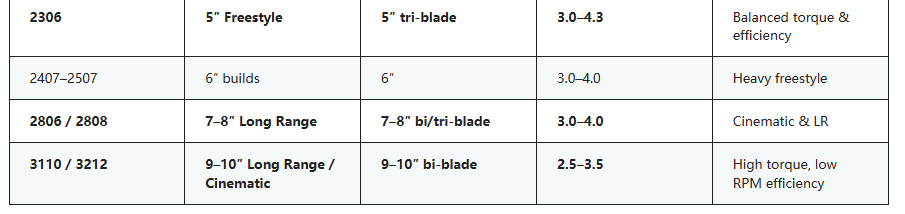

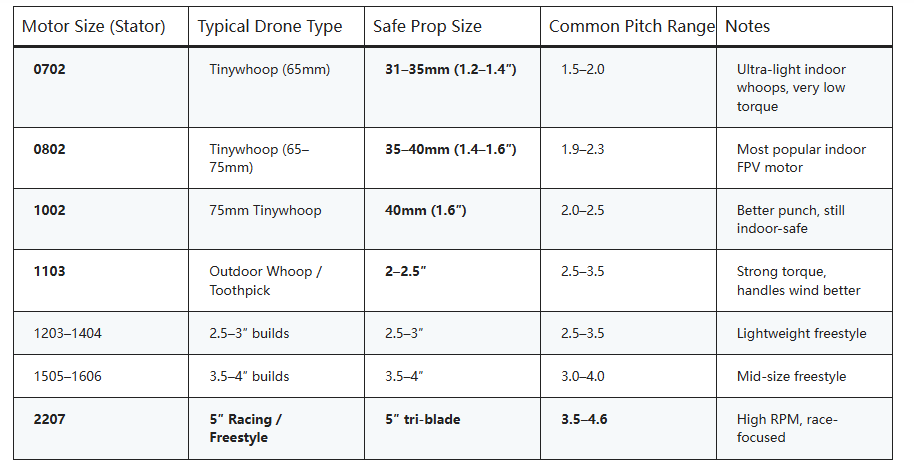

Motor Size and Propeller Size

• Larger motors can spin larger or higher-pitch props
• Smaller motors struggle with heavy prop loads and overheat faster

FPV Motor Size and ESC & Battery

• Bigger motors draw more current → need higher-rated ESCs
• 6S setups favor larger stators with lower KV
• 4S setups favor smaller stators with higher KV

In FPV builds, motor size sets the ceiling for how aggressive the rest of the setup can be.

Why FPV Motor Size Matters So Much?

In FPV motor sizes, even a small change—such as moving from a 2205 to a 2207—can completely change how the drone Why Drone Motor Sizes Matter

In FPV, motor size changes more than peak power. It changes how the quad feels in the air.

In general:

• a larger stator diameter helps the motor handle heavier prop loads
• a taller stator often improves torque feel and throttle authority
• a smaller motor saves weight and feels snappier on light builds, but it can overheat if you over-prop it

From a pilot’s point of view, motor size affects:

• throttle feel
• recovery from dives
• corner exit speed
• prop wash handling
• cruising efficiency
• motor temperature after hard packs

That is why experienced pilots do not choose motors by KV alone. Motor size and KV have to work together.

Taller Stator vs Wider Stator

Because the mass of a wider motor is farther from the rotational axis, it takes more energy to alter the RPM when the motor is spinning, resulting in greater inertia. Therefore, even if they have the same stator volume and torque output, broader and shorter motors are typically less responsive than narrower and taller motors. Smaller magnets on the motor bell of wider and shorter motors can also lower the motor’s output.

However, because they have more surface area on top and bottom, wider motors provide better cooling. Motor performance is highly dependent on temperature. A motor’s capacity to produce magnetic flux diminishes with temperature, which affects torque output and efficiency.

A motor stator’s width and height essentially serve as a compromise between cooling and responsiveness. Depending on how you fly, you should make a choice. For example, bigger stator motors may provide greater cooling for slow cinewhoops hauling a heavier GoPro. Taller stator lengths may be preferable for sports drones or racing drones that react quickly. Larger stators also make it possible for larger bearings, which can enhance performance, lifespan, and smoothness.

Not necessarily are larger stators better. For instance, 2207 motors can manage standard 5” propellers. However, utilizing considerably heavier 2506 motors with the same KV may not yield any appreciable advantages since they would still generate the same thrust with the same propellers, or the weight may even result in less responsiveness. Higher KV motors are an option if you want to increase performance without gaining weight. However, because of the higher torque requirements, the 2506 motor in this case would probably perform better with 6” propellers than the 2207.

In short:

Taller Stator (e.g. 2207 vs 2205)

Characteristics:

• Higher torque per amp
• Faster transient response
• Better control at low and mid throttle
• Slightly heavier rotor

Best for:

• FPV racing
• Tight technical tracks
• Pilots who want instant throttle authority

A taller stator increases the magnetic interaction length. This allows the motor to “grab” the rotor harder, making it feel more locked-in and predictable during rapid throttle changes.

Wider Stator (e.g. 2306 vs 2207)

Characteristics:

• Smoother power delivery
• Better sustained RPM
• Higher rotational inertia
• Slightly slower throttle changes

Best for:

• Freestyle
• Cinematic FPV
• Long, flowing lines

The following content will describe in detail how to choose the FPV motor size.

How I Actually Choose FPV Motor Sizes?

When I choose a motor for a build, I do it in this order.

Step 1: Determine Your Frame Size

Start with your frame size, usually defined by the motor-to-motor diagonal distance (wheelbase) or by the prop size the frame supports.

Your frame directly limits:

• Maximum propeller diameter
• Motor mounting pattern
• Total weight and thrust requirements

For example:

• 75–85mm frames → Tinywhoop (31–40mm props)
• 120–140mm frames → 3-inch props
• 210–225mm frames → 5-inch props
• 280mm+ frames → 7–10 inch long-range builds

Once the frame size is fixed, everything else must match it.

Step 2: Match the Propeller Size

Props set the load. Motor size has to support that load. If you choose the motor first and ignore the prop, you usually end up with a quad that runs hot, feels lazy, or wastes battery.

• Smaller props (31–40mm): lightweight, fast response, indoor flying
• Medium props (3–5 inch): freestyle, racing, balanced performance
• Large props (7–10 inch): long range, efficiency, payload carrying

Step 3: Look at all-up weight

Two 5-inch quads can use the same prop size and still want very different motors. A light analog freestyle build and a heavy GoPro build do not need the same torque reserve.

Step 4: Match the flight style

This matters more than most spec sheets suggest.

For example:

• for freestyle, I usually want a motor that feels predictable and strong in recovery
• for racing, I care more about immediate acceleration and clean throttle transitions
• for long range, I care more about efficiency and low-throttle control
• for cinewhoops, I care about smoothness, heat control, and carrying weight without feeling strained

Step 5: Then I choose KV around the motor size

Motor size is the motor’s physical capability. KV shapes how aggressive that capability feels on a given voltage.

• Smaller propellers (Tinywhoop, 2–3 inch) work best with smaller stators and higher KV, prioritizing fast response and low weight.
• Medium propellers (5 inch) require mid-size stators that balance torque and responsiveness, paired with moderate KV values.
• Large propellers (7–10 inch) need larger stators with lower KV to provide strong, sustained torque without overheating.

2207 vs 2306: The Most Common 5-Inch Question

If you spend time around American FPV pilots, this is one of the most common motor sizing debates.

Here is the practical answer:

• 2207 is the classic “do-everything” 5-inch size
• 2306 is also a proven 5-inch size and often feels a little smoother and more free-revving
• neither is universally better; the rest of the build decides which one makes more sense

On most 5-inch freestyle quads:

• 2207 is a safe default if you want strong overall control and a familiar feel
• 2306 is a great pick if you want a balanced freestyle setup with good efficiency and smooth throttle feel
• 2306.5 or 2208 starts making more sense on heavier builds or when you want a more planted feel

If a pilot is unsure, 2207 and 2306 are still the two sizes I would tell them to shortlist first.

Bench-Test Data That Supports the Sizing Logic

This article should not rely on theory alone. Real motor sizing decisions should be backed by thrust and power data.

One useful example is the MEPS SZ2306 V2 motor page, which includes a dedicated data-test section and states that the 1950KV version can reach 1081.9W max power on its tested setup. The same page also claims a 25% improvement in efficiency and up to 40% longer flight time for the V2 design when paired with 5-inch 3-blade 5145 props. That lines up with what many pilots expect from a properly matched 2306 motor on a 5-inch freestyle build: strong output without stepping into oversized long-range stator territory.

A second useful reference is the MEPS SZ2207 V2 product page, which also includes a data-test section and positions the motor for 5-inch racing and freestyle setups. While the text on the page emphasizes burst power and smoother throttle response rather than listing the full chart values in crawlable text, it still supports the real-world pattern pilots see: 2207 remains one of the most versatile 5-inch motor sizes because it sits in the sweet spot between torque, response, and weight.

The takeaway is simple: when test data and field experience agree, 5-inch quads consistently land in the 2207 to 2306 window for a reason.

Step 6: Evaluate Torque Requirements

Torque is what actually turns the propeller. It mainly comes from stator volume.

General rule:

• Bigger props → larger stator volume
• Heavier drones → more torque required

However:

• Larger stators + higher KV = higher current draw
• More torque without proper cooling = overheating

This is why motor size must be balanced with prop choice and battery voltage—not chosen in isolation.

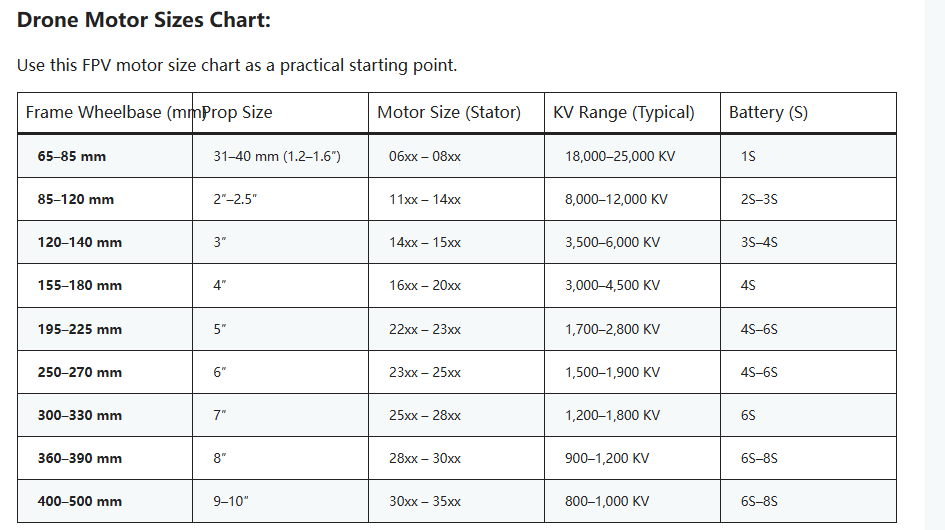

This drone motor size chart is not a hard rule. It is the range most pilots start from before adjusting for quad weight, battery voltage, prop pitch, and flight style.

Matching Drone Motor Size to Propeller Size

The size of your propellers should match the motor size for optimal efficiency and performance.

• Larger motors generally work better with larger props (e.g., a 2207 motor with 5-inch props), providing more thrust and stability.
• Smaller motors are suited to smaller props (e.g., a 1404 motor with 3-inch props), offering faster response times but less overall thrust.

Choosing the right combination ensures your drone performs as expected, without overloading the motors or underutilizing their potential.

Battery Compatibility and Voltage Selection

Voltage Considerations (3S, 4S, 6S): The voltage of your battery (measured in S, where each cell is 3.7V) significantly impacts motor performance. Higher voltage (e.g., 6S) can produce more power and efficiency, but requires motors with a lower KV rating to maintain balance and avoid overheating. For instance, a 6S setup might pair well with a 1700KV motor, while a 4S setup could use a 2300KV motor for similar performance.

Typical pairings:

• 4S → ~2300–2600KV (5-inch freestyle/racing)
• 6S → ~1600–1900KV (5-inch performance builds)
• 6S long range → ~1200KV or lower

Ensuring your drone motor’s KV rating matches your battery voltage will help prevent issues like excessive heat, poor efficiency, or even motor burnout.

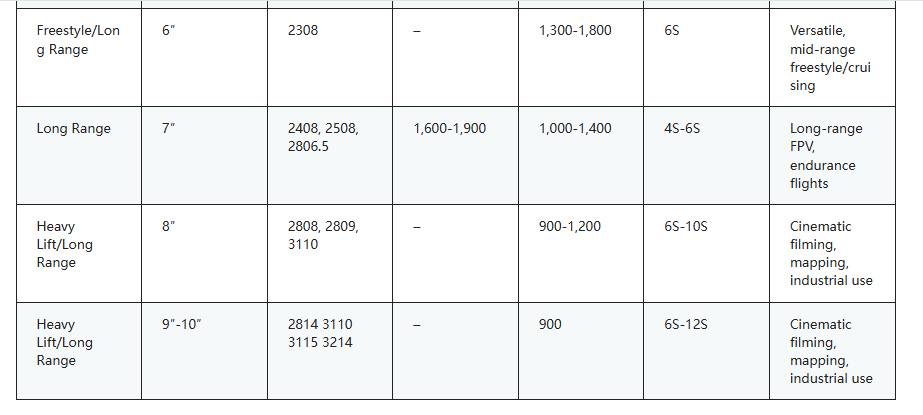

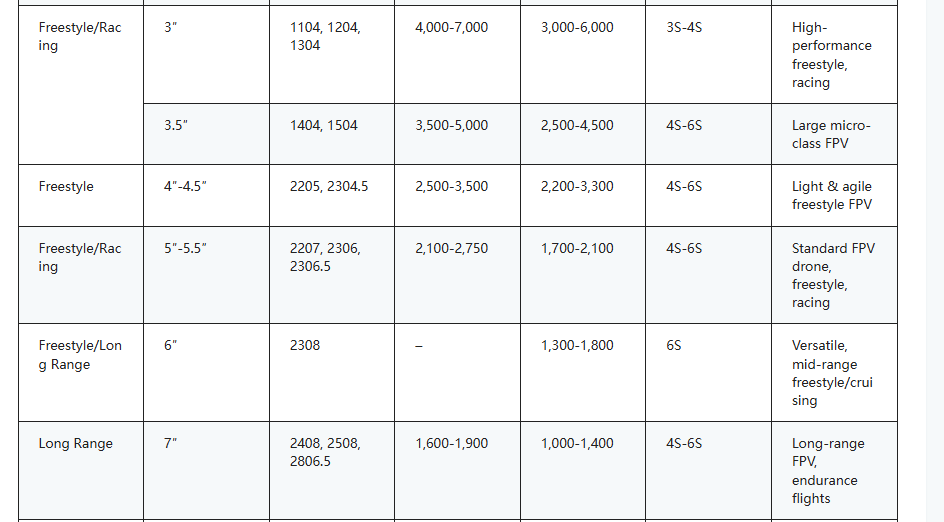

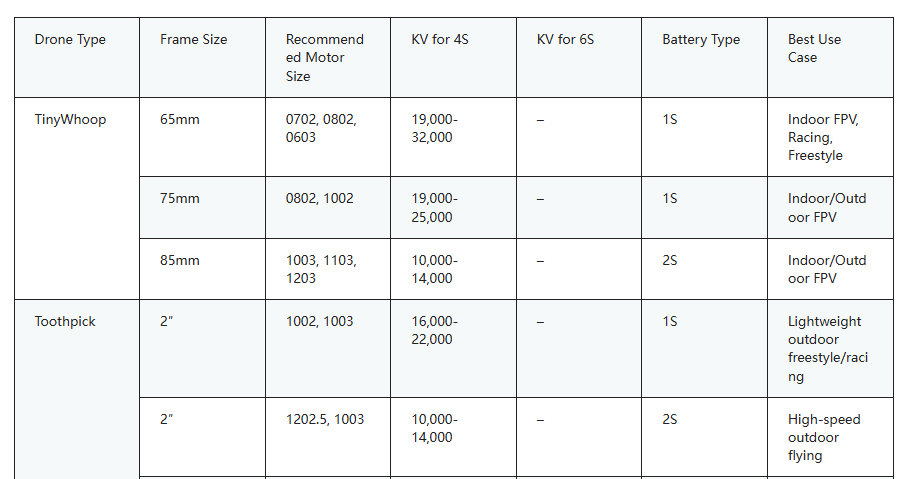

Recommendations: Drone Motor Sizes for FPV

Drone Motor Size Guide:

Best Motor Sizes for Micros:

TinyWhoops:

65mm:

For a micro drone of this motor size, often classified as a tiny whoop, the perfect FPV motor size varies depending on the application of your drone.

• If weight is your priority, a 0702 motor will fit your needs with it also being zippier and coming in a large range of ultrahigh KVs.
• If torque and power at the cost of efficiency are your priority, for a 65mm, 0802 is the best choice.
• With 0603 being for the chunkier builds like a Meteor 65 pro.

For these drones, the KV options are vast, ranging from 19,000 up to 32,000, so for more control, choose a lower KV, but for raw thrust, high KV is the only way.

Optimal KV Range:

• 1S: 23,000-30,000 KV for triblade props, 30,000+ KV for two-blade props

75mm:

For a larger micro drone with a more efficient and powerful performance, 75mm with 1s is the best as it’s good for indoors and can fly outdoors with ease while getting more flight time.

Motor Sizes: 0802, 1002, 1102, 1103

Optimal KV Range:

• 1S: 20,000-25,000 KV
• 2S: 12,000-14,000 KV
• 3S: 8,000-11,000 KV

Recommended Propellers: 40mm (1.6″) triblade or two-blade

In a 75mm light-weight build, 0802 with a KV ranging from 19,000 to 25,000 is more than enough for high performance and efficiency. If power is your true goal or you are using a 75mm frame with larger ducts, such as the Meteor 75 pro or the Fractal 75 pro max, a 1002 motor with the same KV range will work well at the cost of some weight and efficiency.

85mm:

These ducted whoops are truly no longer for indoor and are no longer outdoor rippers, mainly running 2s batteries with an XT30 connector. There are many different sizes for motors which can be employed, but the ideal ones used on most BNF drones are xx03, meaning something like a 1003, 1103, or 1203 will work fine with these larger whoops. The recommended KV is from 10,000 to 14,000 max for 2s. The are a great fit for this drone class.

Best Motor Sizes for Toothpicks:

2” 1s: A toothpick of these specifications will be using smaller motors for a lighter weight with motor sizes ranging from 1002 at minimum, with 1003 being on the high end. The recommended KV would be from 16,000 to 22,000 at the high end.

2” 2s: These toothpick drones are truly powerful and can cover a larger outdoor area. Motor recommendations range from xx2.5 to xx3, such as 1202.5 and 1003 motors. Use the same KV as the 85mm drones, which employ the same sized propeller. The MEPS 1103 motor is a great option for this size.

2.5”: These drones almost always use 2s and 3s, so for a build of this spec, larger motors must be used, such as xx03 to xx04, such as a 1203, 140,3 or 1104, and similar sizes. The recommended KV would be anywhere from 10,000 to 14,000 on 2s and 6,000 to 10,000 on 3s. The lower KV MEPS 1103 motor is a great option for 3s power.

Best Motor Sizes for Freestyle & Racing Flight:

Small Sized Drones：

3”: This is where drones start to leave the micro class as they grow larger and much more powerful. These drones commonly run on 3s-4s batteries and use larger motors. The recommended drone motor size would be something like an xx04, such as an 1104, 1204 or 1304 motor. For 3s, the recommended KV would be anything from 4,000 and 7,000, and for 4s, anything from 3,000 to 6,000 should provide plenty of power for this class.

3.5”: This class of drones is the limit for a micro and these drones commonly use 4s-6s batteries. For FPV motor size, the recommended size for this class of large micros is xx04 motors, such as 1404,1504 and similar sizes. The recommended KV for 4s is 3,500 to 5,000 and for 6s, the recommended KV would range from 2,500 to 4,500. The MEPS 1404 motors would be a great choice with a build of this size for drone motor.
